DTC B2780: Push Switch / Key Unlock Warning Switch Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

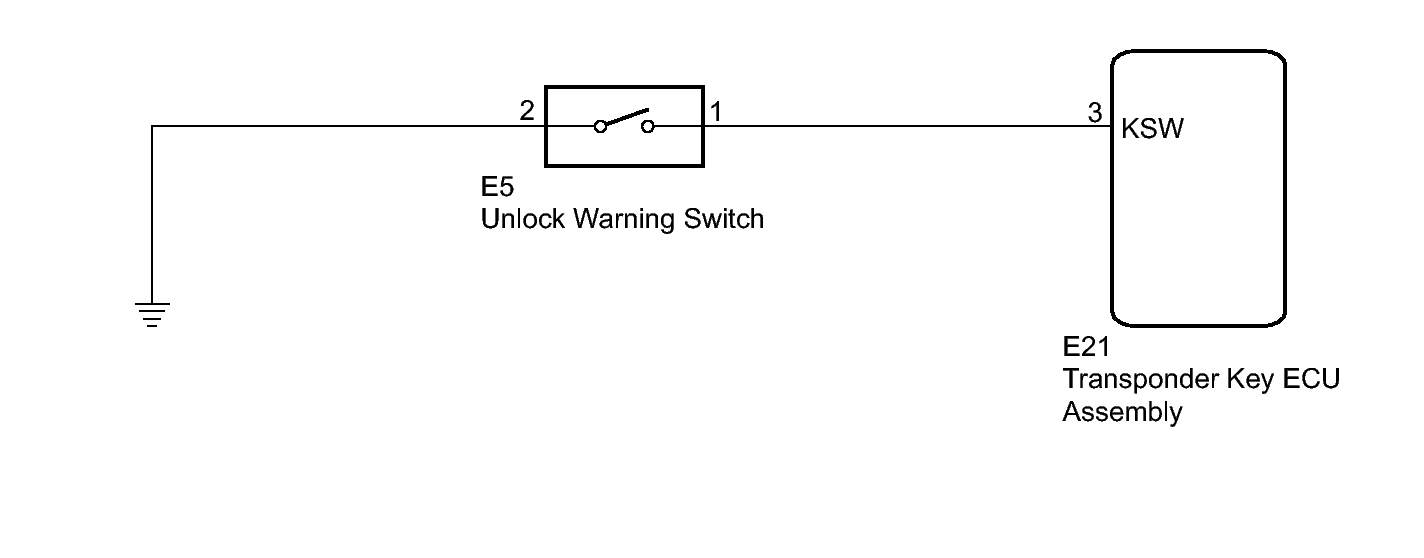

Fig 1: Key Unlock Warning Switch - Wiring Diagram
GTY200210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
