Back-up Power Source Circuit: Procedure
WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BODY GROUND)
- Disconnect the connector from the A/C amplifier.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

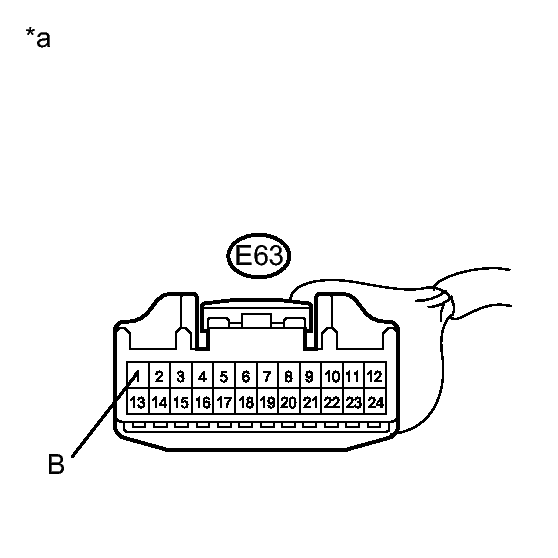

Tester Connection Condition Specified Condition E63-1 (B) - Body ground Always 11 to 14 V TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to A/C Amplifier)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 2
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
