Back-up Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

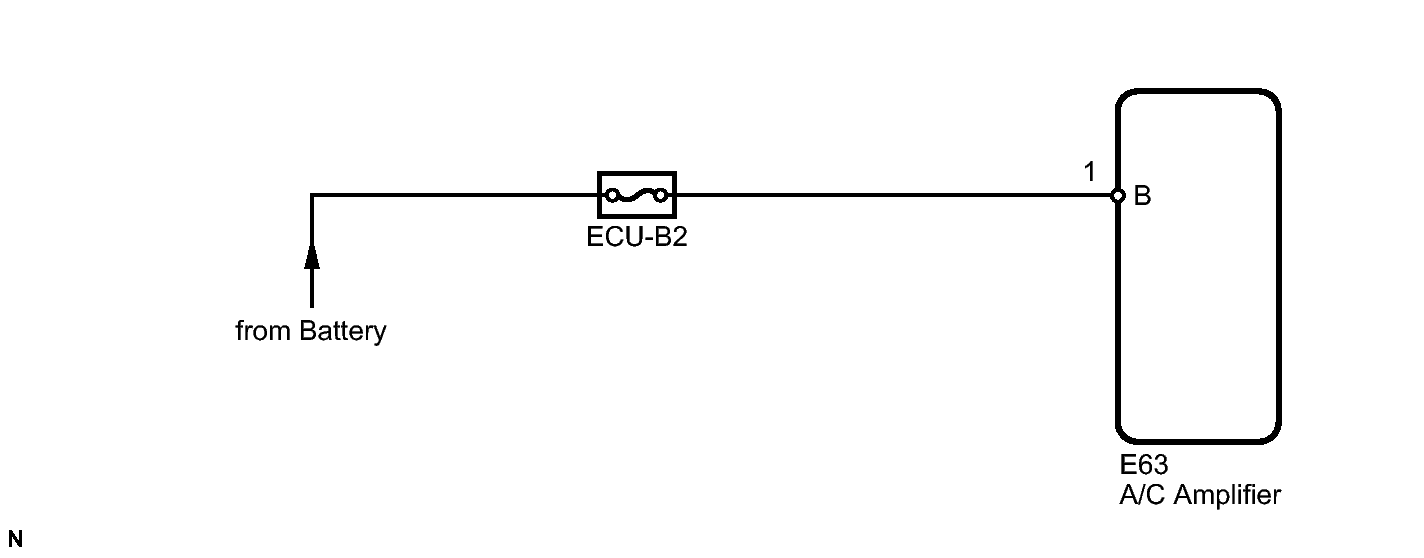

Fig 1: Identifying Back-Up Power Source Wiring Diagram
GTY207736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
