DTC B1423: Pressure Sensor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

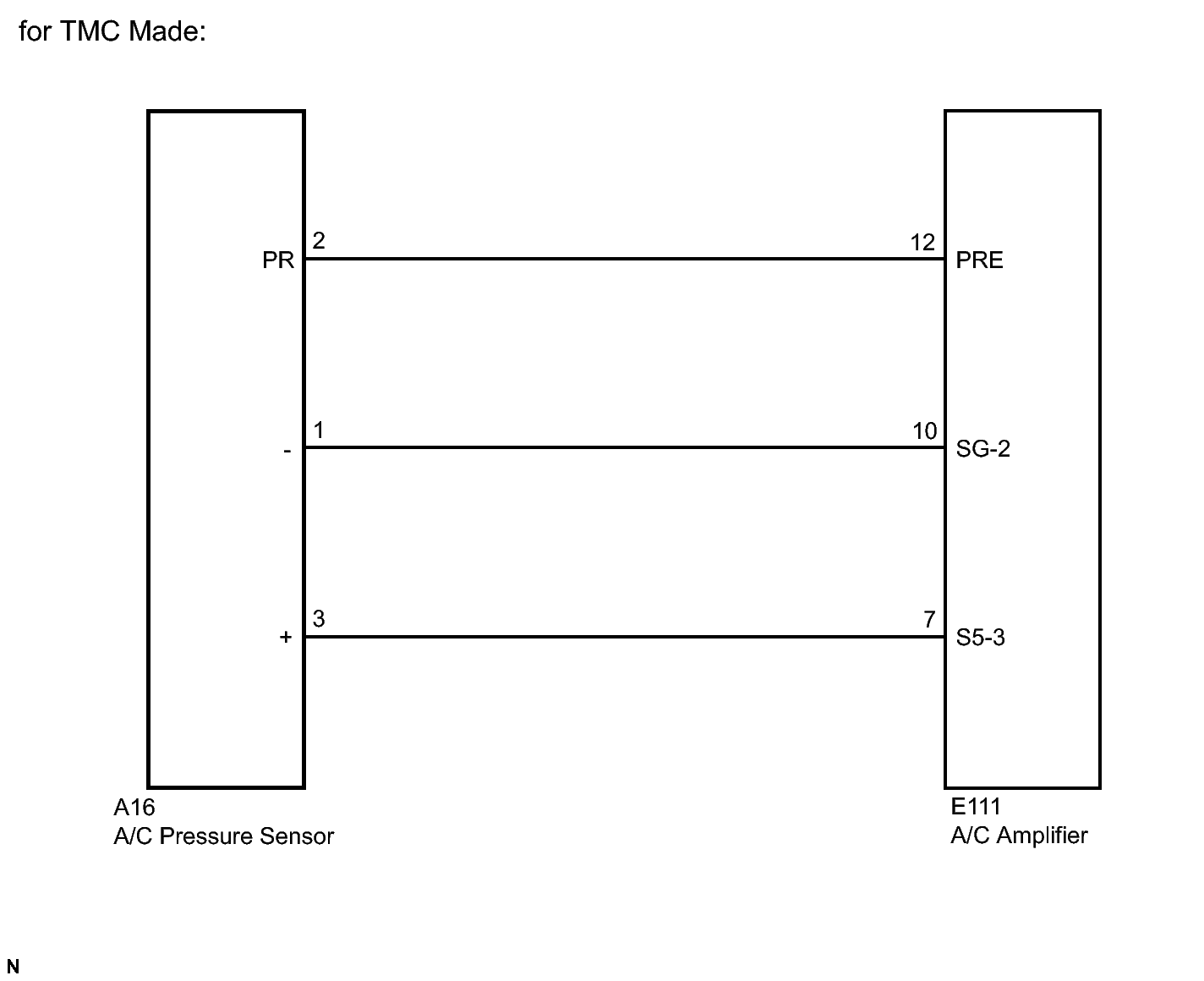

Fig 1: Identifying Pressure Sensor Wiring Diagram (1 Of 2)
GTY293310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

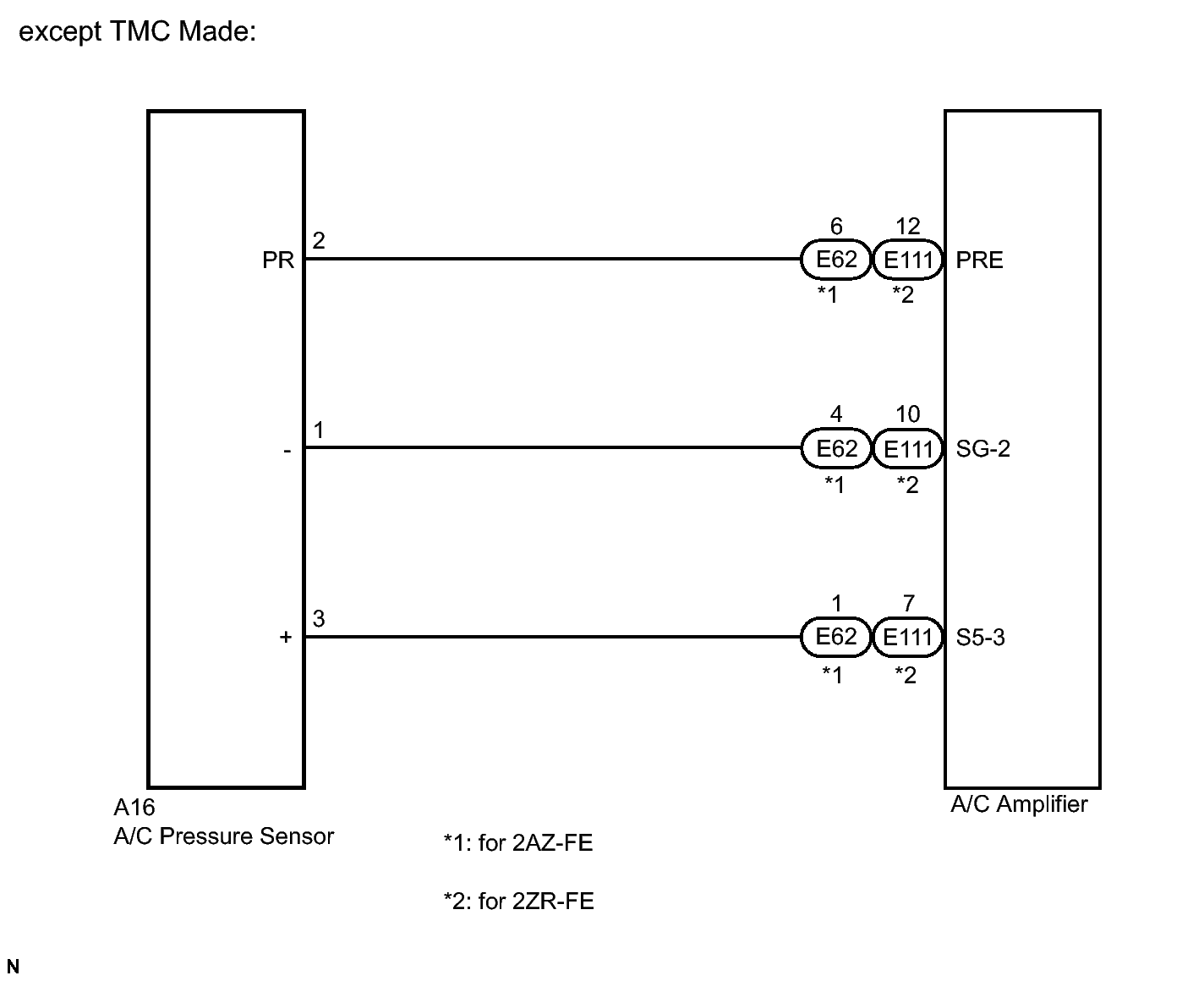

Fig 2: Identifying Pressure Sensor Wiring Diagram (2 Of 2)
GTY294138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
