DTC B1451: Compressor Solenoid Circuit: Procedure

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HARNESS AND CONNECTOR (COMPRESSOR ASSEMBLY WITH PULLEY - BODY GROUND)
    1. Disconnect the connector from the compressor assembly with pulley (compressor solenoid).

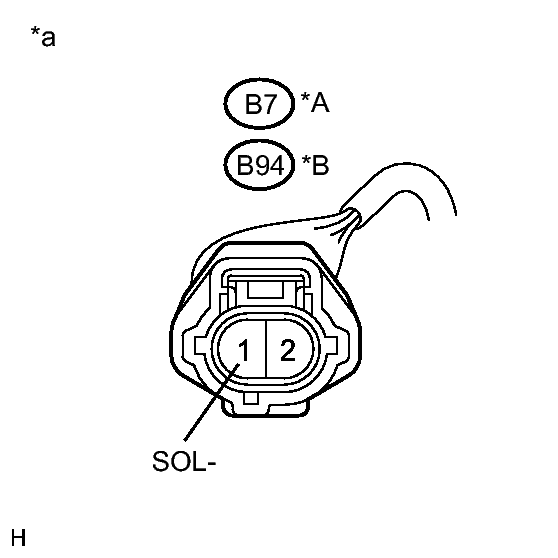

      Fig 1: Identifying B7/B94 Connector SOL- Terminal
      GTY293237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B7-1 (SOL-) - Body ground*1 Always Below 1 Ω
      B94-1 (SOL-) - Body ground*2 Always Below 1 Ω
      • *1: for TMC Made
      • *2: except TMC Made
      TEXT IN ILLUSTRATION

      *A for TMC Made
      *B except TMC Made
      *a Front view of wire harness connector
      (to Compressor Assembly with Pulley (Compressor Solenoid))

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  2. INSPECT COMPRESSOR ASSEMBLY WITH PULLEY (COMPRESSOR SOLENOID)
    1. Measure the resistance according to the value(s) in the table below.

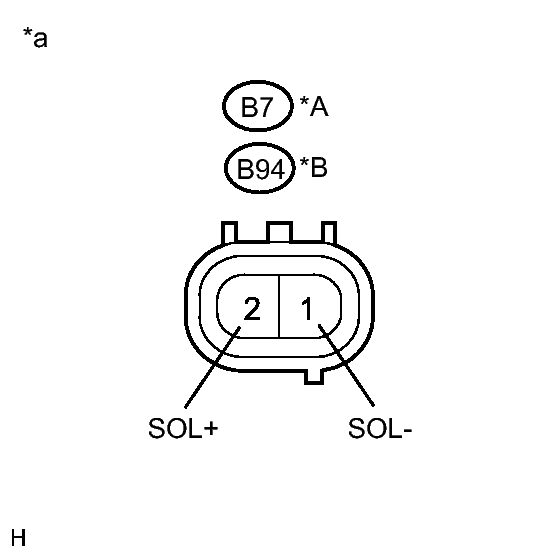

      Fig 2: Identifying B7/B94 Connector Terminals
      GTY292437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      B7-2 (SOL+) - B7-1 (SOL-)*1 20°C (68°F) 10 to 11 Ω
      B94-2 (SOL+) - B94-1 (SOL-)*2 20°C (68°F) 10 to 11 Ω
      • *1: for TMC Made
      • *2: except TMC Made
      TEXT IN ILLUSTRATION

      *A for TMC Made
      *B except TMC Made
      *a Component without harness connected
      (Compressor Assembly with Pulley (Compressor Solenoid))

      Result

      Result Proceed to
      OK A
      NG (for 2AZ-FE) B
      NG (for 2ZR-FE) C

    C → See step   7

    B → See step   6

    A: Go to next step

  3. CHECK HARNESS AND CONNECTOR (COMPRESSOR ASSEMBLY WITH PULLEY - A/C AMPLIFIER)
    1. Disconnect the connector from the A/C amplifier.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E111-13 (SOL+) - B7-2 (SOL+)*1 Always Below 1 Ω
      E111-13 (SOL+) - B94-2 (SOL+)*2 Always Below 1 Ω
      E62-7 (SOL+) - B94-2 (SOL+)*2 Always Below 1 Ω
      B7-2 (SOL+) - Body ground*1 Always 10 kΩ or higher
      B94-2 (SOL+) - Body ground*2 Always 10 kΩ or higher
      • *1: for TMC Made
      • *2: except TMC Made

      Result

      Result Proceed to
      NG A
      OK (When troubleshooting according to Problem Symptoms Table) B
      OK (When troubleshooting according to the DTC) C

    C → See step   5

    B → See step   4

    A → REPAIR OR REPLACE HARNESS OR CONNECTOR

  4. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE
  5. REPLACE AIR CONDITIONING AMPLIFIER. Refer to  REMOVAL
  6. REPLACE COMPRESSOR ASSEMBLY WITH PULLEY (for 2AZ-FE). Refer to  REMOVAL
  7. REPLACE COMPRESSOR ASSEMBLY WITH PULLEY (for 2ZR-FE). Refer to  REMOVAL
