Heater Control Panel Power Source Circuit: Procedure

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (IG+ - BODY GROUND)

Disconnect the connector from the A/C control assembly.

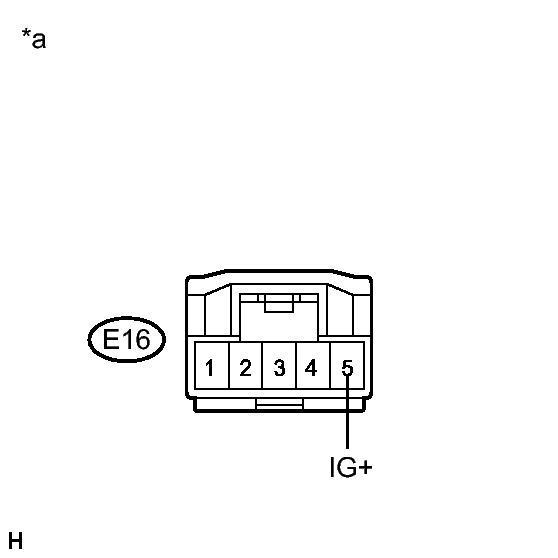

Fig 1: Identifying E16 Connector IG+ Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the voltage according to the value(s) in the table below.

Standard Voltage

Tester Connection	Switch Condition	Specified Condition
E16-5 (IG+) - Body ground	Ignition switch ON	11 to 14 V
E16-5 (IG+) - Body ground	Ignition switch off	Below 1 V

TEXT IN ILLUSTRATION

*a	Front view of wire harness connector (to A/C Control Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

CHECK HARNESS AND CONNECTOR (GND - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

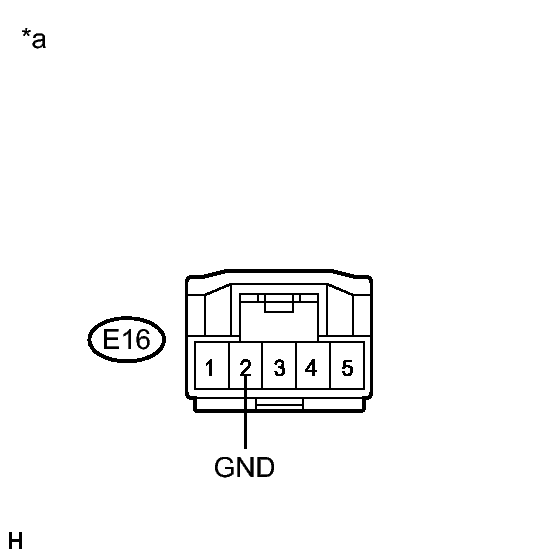

Fig 2: Identifying E16 Connector GND Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Condition	Specified Condition
E16-2 (GND) - Body ground	Always	Below 1 Ω

TEXT IN ILLUSTRATION

*a	Front view of wire harness connector (to A/C Control Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step 3

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
