IG Power Source Circuit: Procedure
WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT AIR CONDITIONING AMPLIFIER (IG+ - GND)
- Remove the A/C amplifier with its connectors still connected.
- Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

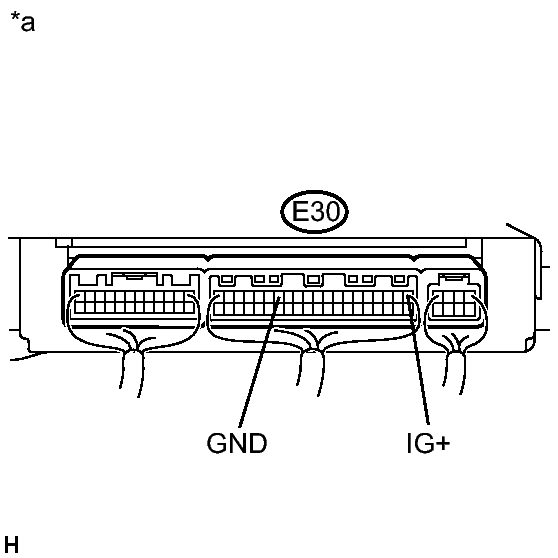

Tester Connection Switch Condition Specified Condition E30-1 (IG+) - E30-14 (GND) Ignition switch ON 11 to 14 V TEXT IN ILLUSTRATION*a Component with harness connected
(A/C Amplifier)
NG → See step 2
OK → See step 4
- CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BATTERY)
- Disconnect the connector from the A/C amplifier.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

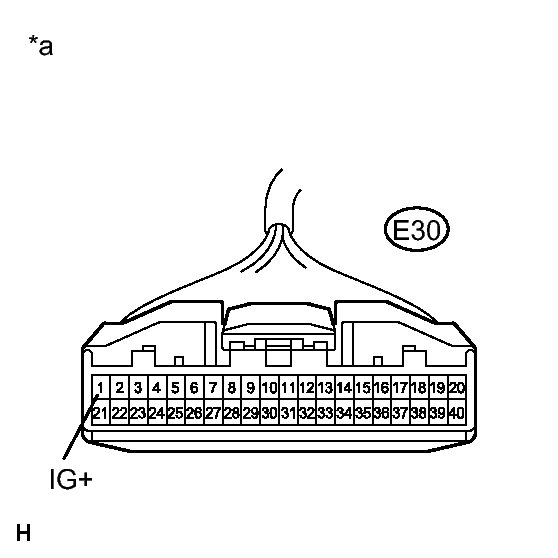

Tester Connection Switch Condition Specified Condition E30-1 (IG+) - Body ground Ignition switch off Below 1 V Ignition switch ON 11 to 14 V TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to A/C Amplifier)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

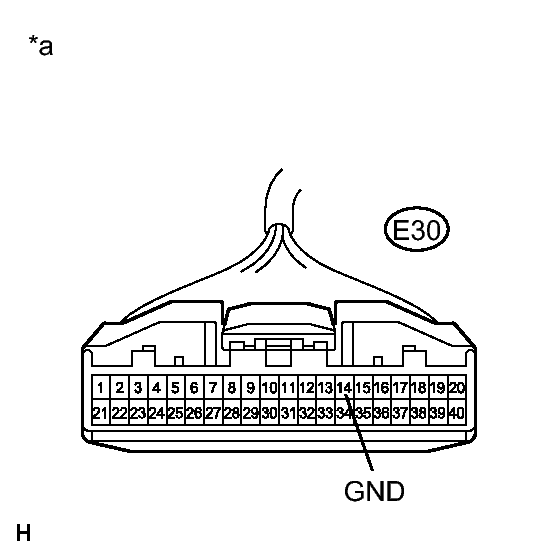

Tester Connection Condition Specified Condition E30-14 (GND) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to A/C Amplifier)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 5
- Measure the resistance according to the value(s) in the table below.
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
- REPLACE AIR CONDITIONING AMPLIFIER. Refer to REMOVAL
