PTC Heater Circuit: Procedure

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT RELAY (HTR SUB NO. 1, HTR SUB NO. 3)
    1. Remove the HTR SUB No. 1 and HTR SUB No. 3 relays from the engine room relay block and junction block.
      Fig 1: Inspecting Relay (HTR SUB 1 And HTR SUB 3)
      GTY207571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω
      (When battery voltage applied to terminals 1 and 2)
    3. Install the HTR SUB No. 1 and HTR SUB No. 3 relays to the engine room relay block and junction block.

    NG → REPLACE RELAY (HTR SUB NO. 1, HTR SUB NO. 3)

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (ENGINE ROOM RELAY BLOCK - A/C AMPLIFIER, BODY GROUND)
    1. Disconnect the connector from the A/C amplifier.
    2. Remove the HTR SUB No. 1 and HTR SUB No. 3 fuses from the engine room relay block and junction block.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E30-3 (PTC1) - HTR SUB No. 1 relay terminal 2 Always Below 1 Ω
      E30-22 (PTC2) - HTR SUB No. 3 relay terminal 1 Always Below 1 Ω
      E30-3 (PTC1) - Body ground Always 10 kΩ or higher
      E30-22 (PTC2) - Body ground Always 10 kΩ or higher
      HTR SUB No. 1 relay terminal 1 - Body ground Always Below 1 Ω
      HTR SUB No. 3 relay terminal 2 - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. INSPECT AIR CONDITIONING AMPLIFIER
    1. Reconnect the connector to the A/C amplifier.
    2. Remove the A/C amplifier with the connectors still connected.

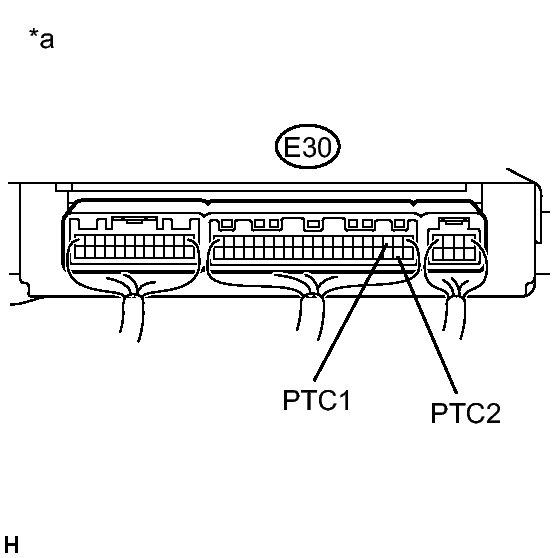

      Fig 2: Identifying E30 Connector PTC1 & PTC2 Terminals
      GTY291082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      E30-3 (PTC1) - Body ground Ignition switch: ON
      Temperature setting: MAX. HOT
      Ambient temperature: 10°C (50°F) or lower
      Engine coolant temperature: 65°C (149°F) or lower
      Light control switch: OFF
      Blower switch: OFF
      Below 1 V
      E30-3 (PTC1) - Body ground Engine running (1250 RPM or higher)
      Temperature setting: MAX. HOT
      Ambient temperature: 10°C (50°F) or lower
      Engine coolant temperature: 65°C (149°F) or lower
      Light control switch: OFF
      Blower switch: ON
      11 to 14 V
      E30-22 (PTC2) - Body ground Ignition switch: ON
      Temperature setting: MAX. HOT
      Ambient temperature: 10°C (50°F) or lower
      Engine coolant temperature: 65°C (149°F) or lower
      Light control switch: OFF
      Blower switch: OFF
      Below 1 V
      E30-22 (PTC2) - Body ground Engine running (1250 RPM or higher)
      Temperature setting: MAX. HOT
      Ambient temperature: 10°C (50°F) or lower
      Engine coolant temperature: 70°C (149°F) or lower
      Light control switch: OFF
      Blower switch: ON
      11 to 14 V
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (A/C Amplifier)

    NG → See step   6

    OK: Go to next step

  4. INSPECT PTC HEATER
    1. Disconnect the connector from the PTC heater.

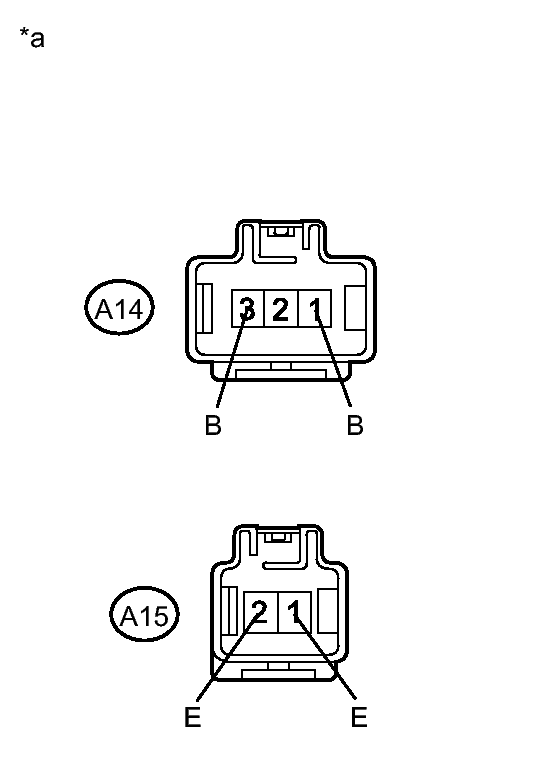

      Fig 3: Identifying A14 & A15 Connector Terminals
      GTY294097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A14-1 (B) - A15-1 (E) Always Below 1 Ω
      A14-3 (B) - A15-2 (E) Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (PTC Heater)

    NG → See step   7

    OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (PTC HEATER - BATTERY)
    1. Measure the voltage according to the value(s) in the table below.

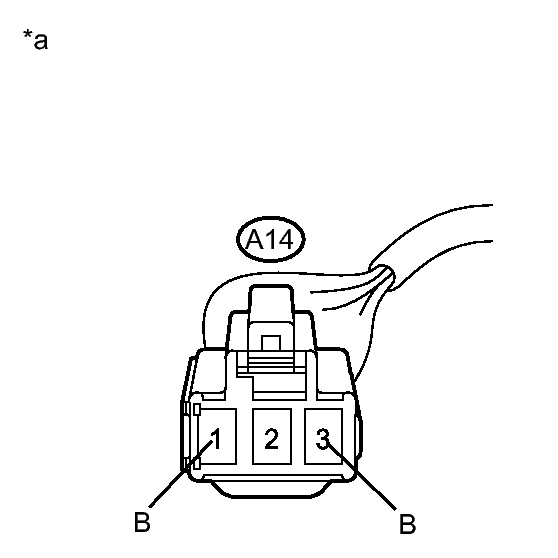

      Fig 4: Identifying A14 Connector Terminals
      GTY291189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Condition Specified Condition
      A14-1 (B) - Body ground Ignition switch: ON
      Temperature setting: MAX. HOT
      Ambient temperature: 10°C (50°F) or lower
      Engine coolant temperature: 65°C (149°F) or lower
      Light control switch: OFF
      Blower switch: OFF
      Below 1 V
      A14-1 (B) - Body ground Engine running (1250 RPM or higher)
      Temperature setting: MAX. HOT
      Ambient temperature: 10°C (50°F) or lower
      Engine coolant temperature: 65°C (149°F) or lower
      Light control switch: OFF
      Blower switch: ON
      11 to 14 V
      A14-3 (B) - Body ground Ignition switch: ON
      Temperature setting: MAX. HOT
      Ambient temperature: 10°C (50°F) or lower
      Engine coolant temperature: 65°C (149°F) or lower
      Light control switch: OFF
      Blower switch: OFF
      Below 1 V
      A14-3 (B) - Body ground Engine running (1250 RPM or higher)
      Temperature setting: MAX. HOT
      Ambient temperature: 10°C (50°F) or lower
      Engine coolant temperature: 65°C (149°F) or lower
      Light control switch: OFF
      Blower switch: ON
      11 to 14 V
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to PTC Heater)

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (PTC HEATER - BODY GROUND)

  6. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE
  7. REPLACE PTC HEATER. Refer to  REMOVAL
