DTC B1421/21: Solar Sensor Circuit (Passenger Side): Description

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

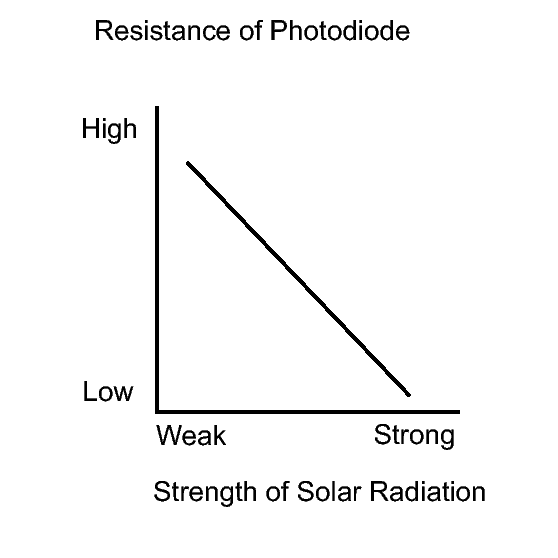

Fig 1: Identifying Solar Radiation And Resistance Graph

The solar sensor, which is installed on the upper side of the instrument panel, detects sunlight and controls the air conditioning in AUTO mode. The output voltage from the solar sensor varies according to the amount of sunlight. When the sunlight increases, the output voltage increases. As the sunlight decreases, the output voltage decreases. The A/C amplifier detects voltage output from the solar sensor.

DTC No.	DTC Detection Condition	Trouble Area
B1421/21	Open or short in passenger side solar sensor circuit	Solar sensor Harness or connector between solar sensor and A/C amplifier A/C amplifier
