Daytime Running Light Relay: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL RUNNING LIGHT RELAY ASSEMBLY
    1. Install the running light relay assembly with the bolt.

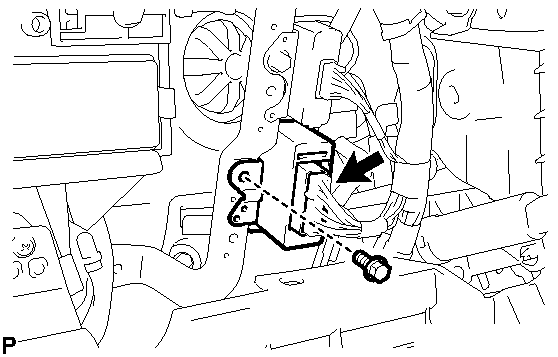

      Fig 1: Remove/Install Bolt And Running Light Relay Assembly Connector
      GTY247031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  . Refer to INSTALLATION - Step 4
