Headlight Assembly: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT BUMPER ASSEMBLY (w/o Front Spoiler)  . Refer to REMOVAL - Step 3
  2. REMOVE FRONT BUMPER ASSEMBLY (w/ Front Spoiler)  . Refer to REMOVAL - Step 4
  3. REMOVE FRONT BUMPER ENERGY ABSORBER  . Refer to DISASSEMBLY - Step 17
  4. REMOVE FRONT BUMPER REINFORCEMENT  . Refer to DISASSEMBLY - Step 18
  5. REMOVE FRONT BUMPER SIDE MOUNTING BRACKET
  6. REMOVE HEADLIGHT ASSEMBLY
    1. Remove the 2 bolts and screw.

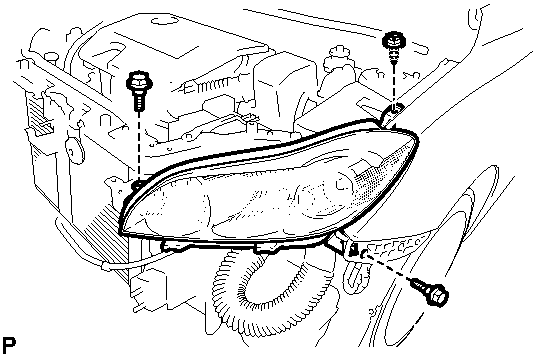

      Fig 1: Remove/Install Headlight Assembly With Fasteners
      GTY247037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

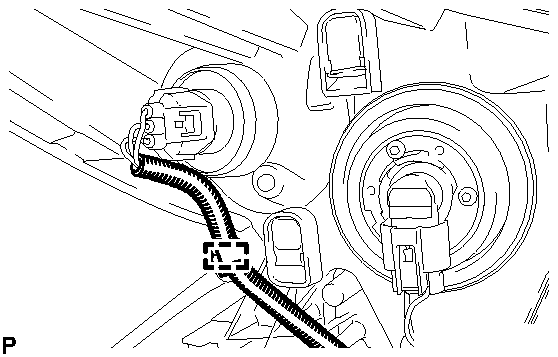

      Fig 2: View Of Headlight Harness Clamp
      GTY247038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connectors and remove the headlight assembly.
