INSTALL COMBINATION METER ASSEMBLY
1. Connect the connector and temporarily install the combination meter assembly.

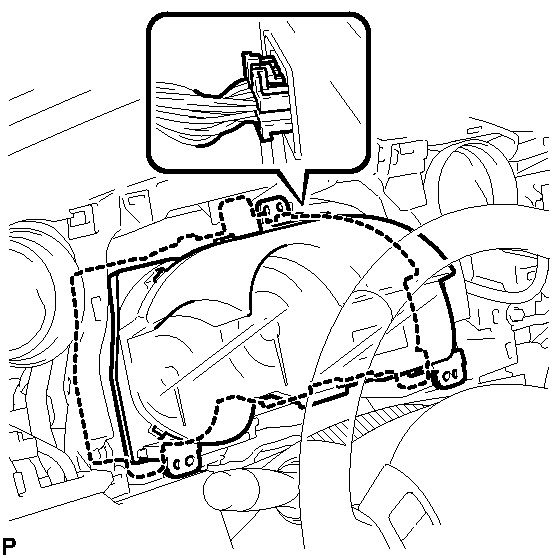

  Fig 1: View Of Combination Meter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  When installing the combination meter assembly, do not damage the upper instrument panel sub-assembly and combination meter assembly.
2. Install the combination meter assembly with the 3 screws.

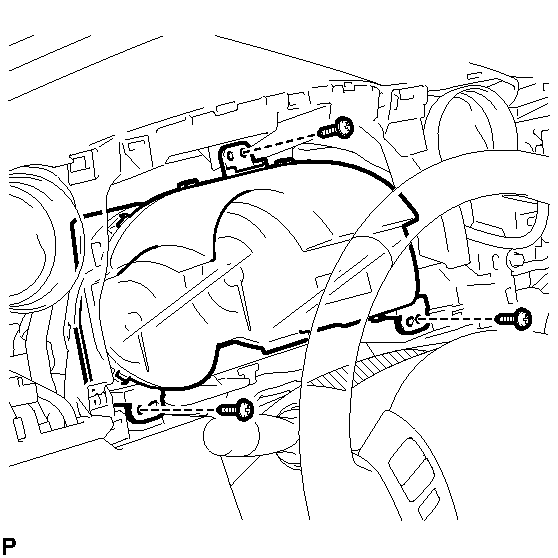

  Fig 2: Remove/Install Combination Meter And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL METER HOOD SUB-ASSEMBLY
1. Engage the 7 claws and install the meter hood sub-assembly.

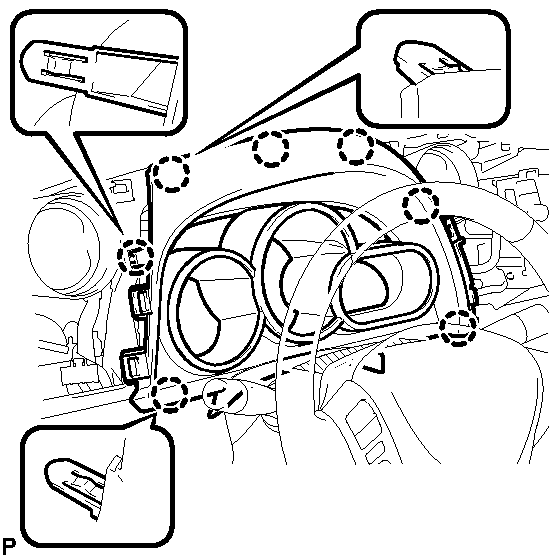

  Fig 3: View Of Meter Hood Sub-Assembly And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the applied protective tape on the steering column cover.

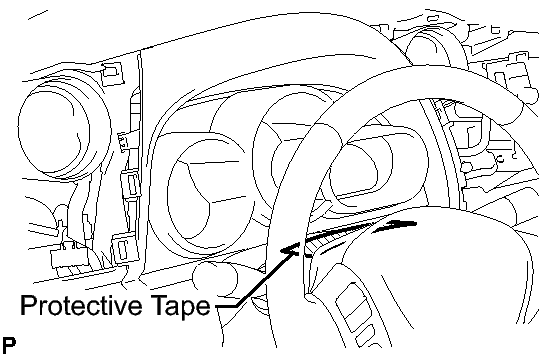

  Fig 4: Identifying Protective Tape On Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 16
INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 17
