Washer Nozzle: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL WASHER NOZZLE SUB-ASSEMBLY
1. Connect a new washer nozzle sub-assembly to the washer hose.

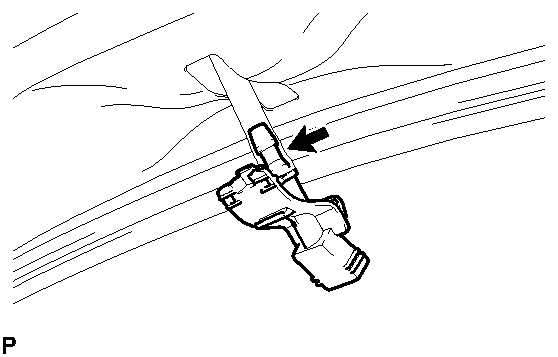

  Fig 1: Locating Washer Nozzle Sub-Assembly And Washer Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 claws to install the washer nozzle sub-assembly as shown in the illustration.

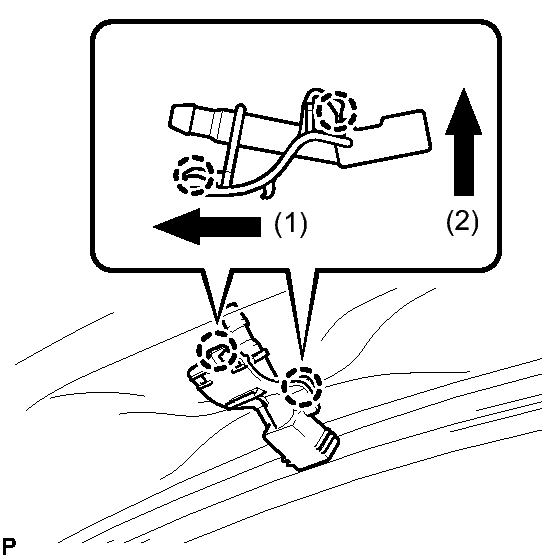

  Fig 2: Engaging Washer Nozzle Sub-Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
