Air Conditioning Unit: Reassembly: Reassembly

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 1 COOLER THERMISTOR
    1. Install the No. 1 cooler thermistor as shown in the illustration.

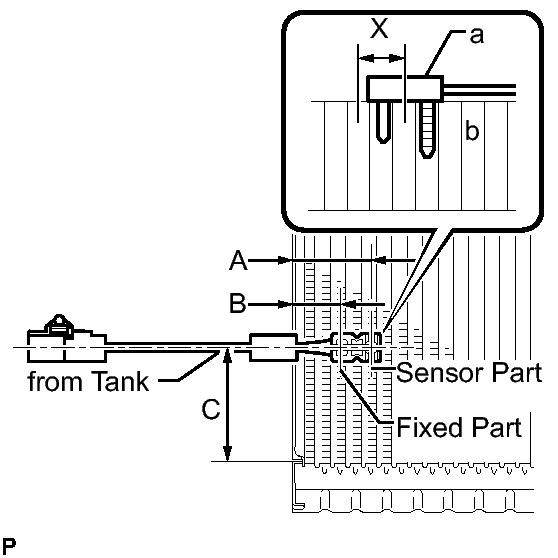

      Fig 1: Installing No. 1 Cooler Thermistor
      GTY162743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Part Length
      A 34.3 mm 1.35 in.
      B 20.9 mm 0.823 in.
      C 50 mm 1.96 in.
      NOTE:
      • Be sure to insert the thermistor only once because reinserting it will not allow it to be firmly secured.
      • When reusing the evaporator, insert the thermistor one row next to the one that has been used previously (X in the illustration).
      • After inserting the thermistor, do not apply excessive force to the wire.
      • Directly insert the thermistor until the edge of plastic case "a" comes into contact with evaporator "b".
  2. INSTALL NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY
    1. Sufficiently apply compressor oil to 2 new O-rings and the fitting surfaces. Install the 2 O-rings to the No. 1 cooler evaporator sub-assembly.

      Compressor oil

      ND-OIL 8 or equivalent

      NOTE:

      Keep the O-rings and O-ring fitting surfaces clean from dirt or any foreign objects.

    2. Install the No. 1 cooler evaporator sub-assembly together with the No. 1 cooler thermistor as a set.

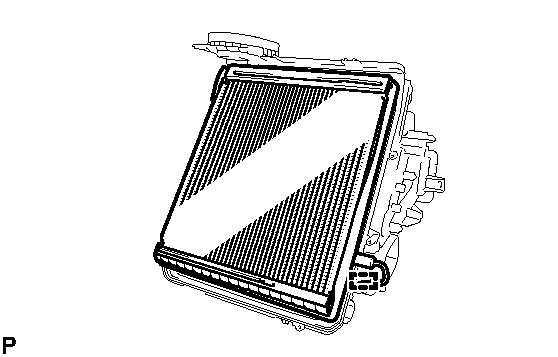

      Fig 2: View Of No. 1 Cooler Evaporator Sub-Assembly And Clamp
      GTY208476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the clamp.
    4. Engage the 4 claws as shown in the illustration.

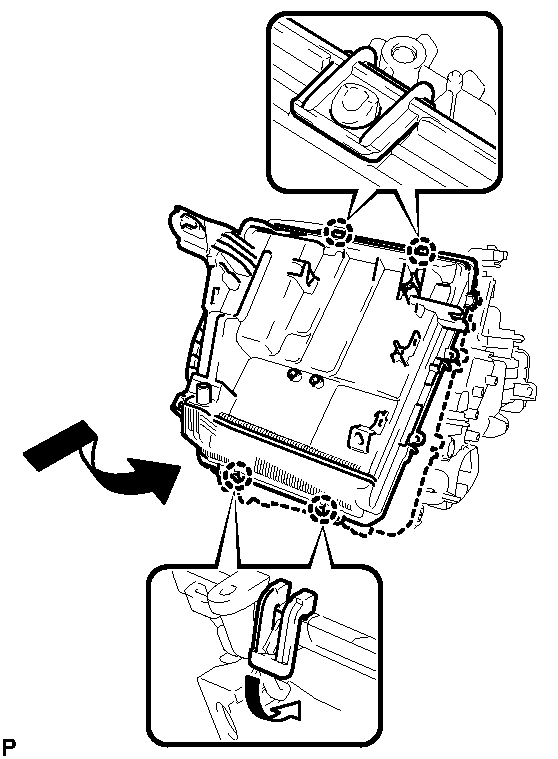

      Fig 3: Installing Lower Heater Case
      GTY163269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the lower heater case with the 4 screws.

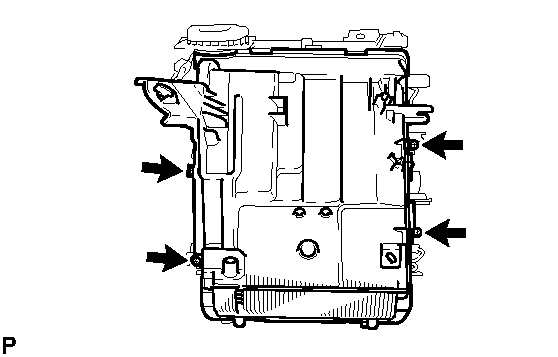

      Fig 4: Remove/Install No. 1 Cooler Evaporator Sub-Assembly
      GTY164268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL COOLER EXPANSION VALVE
    1. Using a 4 mm hexagon wrench, install the cooler expansion valve with the 2 hexagon bolts.

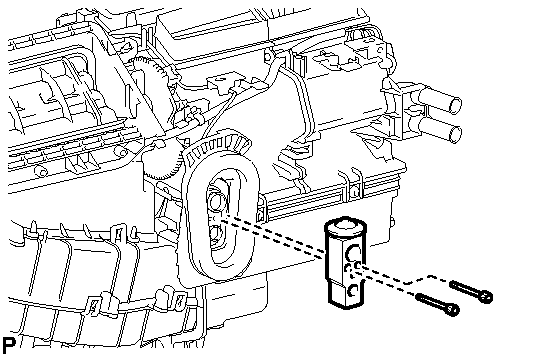

      Fig 5: Remove/Install Cooler Expansion Valve
      GTY207488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 3.5 N*m (36 kgf*cm, 31 in.*lbf)

  4. INSTALL HEATER RADIATOR UNIT SUB-ASSEMBLY
    1. Install the heater radiator unit sub-assembly to the air conditioning unit assembly.

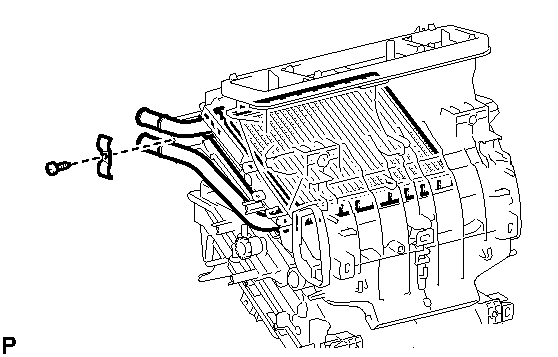

      Fig 6: Remove/Install Heater Radiator Unit Sub-Assembly
      GTY157446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the clamp with the screw.
  5. INSTALL DRAIN COOLER HOSE
    1. Install the drain cooler hose to the air conditioning unit assembly.

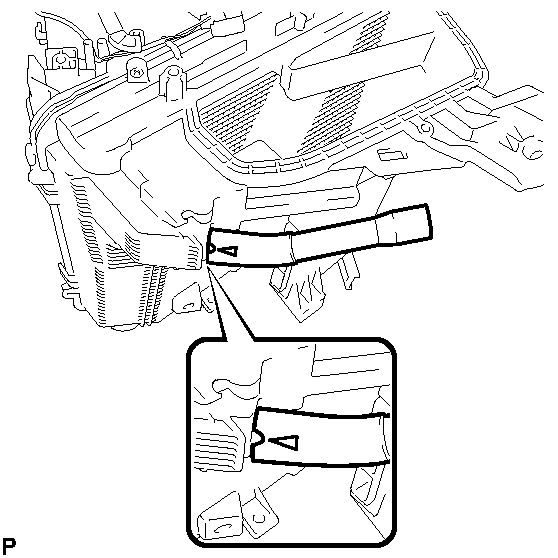

      Fig 7: View Of Drain Cooler Hose
      GTY171498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL CONSOLE MOUNTING BRACKET LH
    1. Install the console mounting bracket LH with the screw.

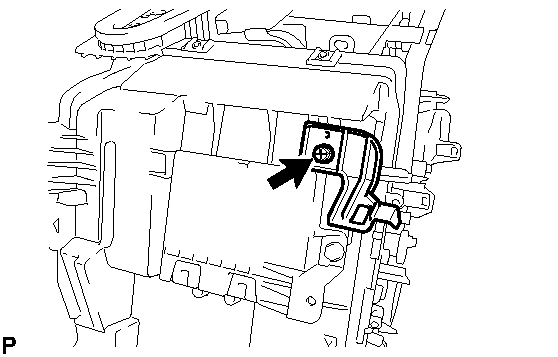

      Fig 8: Remove/Install Console Mounting Bracket LH
      GTY208079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL CONSOLE MOUNTING BRACKET RH
    1. Engage the 2 claws to install the console mounting bracket RH.

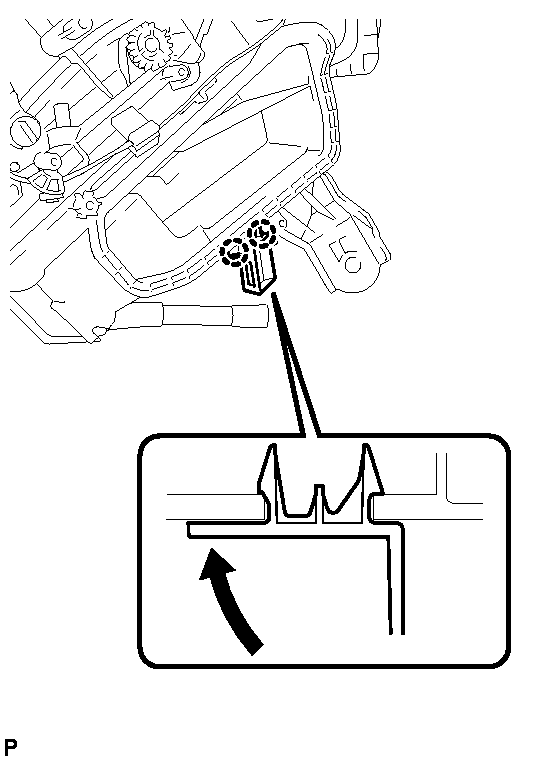

      Fig 9: View Of Console Mounting Bracket RH And Claws
      GTY208078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL QUICK HEATER ASSEMBLY (w/ PTC Heater)
    1. Install the quick heater assembly as shown in the illustration.

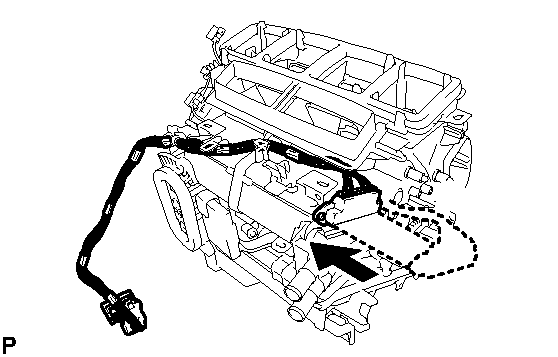

      Fig 10: Installing Quick Heater Assembly
      GTY208575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.

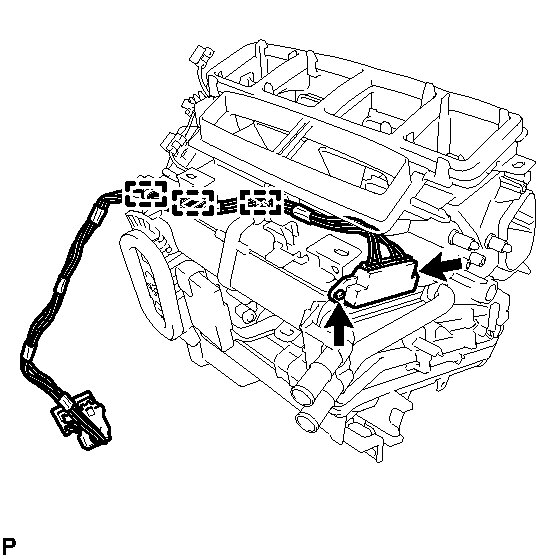

      Fig 11: Remove/Install Quick Heater Assembly
      GTY183035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage each clamp.
  9. INSTALL AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY
    1. Position the gear of the air mix damper control cable sub-assembly and the unit gear as shown in the illustration, and install the air mix damper control cable sub-assembly.

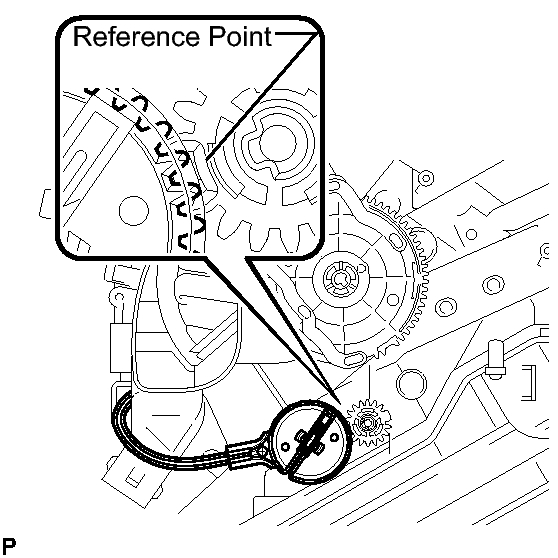

      Fig 12: Installing Air Mix Damper Control Cable Sub-Assembly
      GTY207337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 2 HEATER CONTROL CABLE SUB-ASSEMBLY
    1. Position the gear of the No. 2 heater control cable sub-assembly and the unit link as shown in the illustration, and install the No. 2 heater control cable sub-assembly.

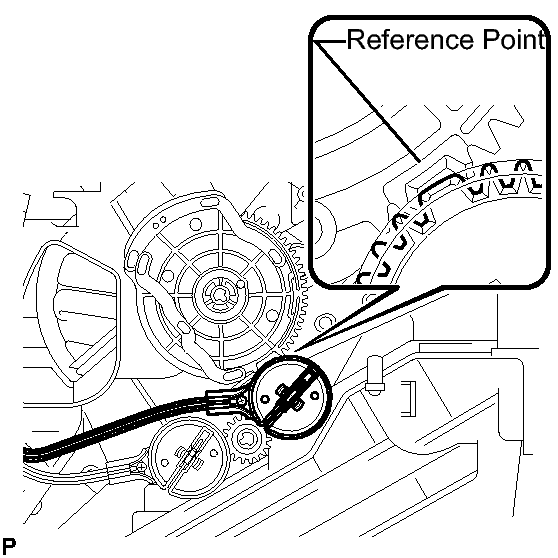

      Fig 13: Installing No. 2 Heater Control Cable Sub-Assembly
      GTY207338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL TRANSPONDER KEY ECU  . Refer to INSTALLATION - Step 1
