Air Inlet Control Servo Motor: Inspection: Inspection

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT RECIRCULATION DAMPER SERVO MOTOR
1. Disconnect the connector from the recirculation damper servo motor.

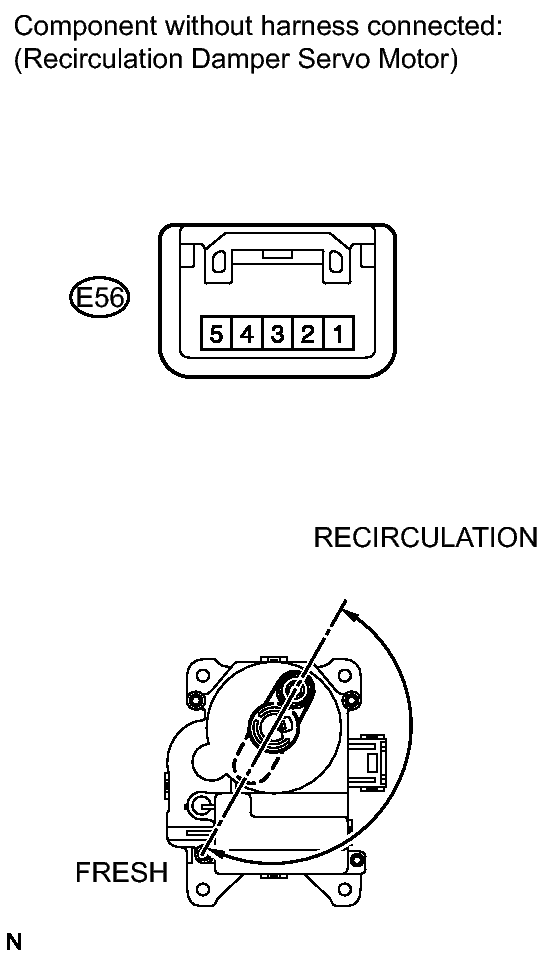

  Fig 1: Identifying Recirculation Damper Servo Motor And E56 Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect a positive (+) lead from the battery to terminal 5 and a negative (-) lead from the battery to terminal 2, then check that the arm turns to the "FRESH" side smoothly.
  OK

  Lever turns to "FRESH" side smoothly.
3. Connect a positive (+) lead from the battery to terminal 5 and a negative (-) lead from the battery to terminal 1, then check that the arm turns to the "RECIRCULATION" side smoothly.
  OK

  Lever turns to "RECIRCULATION" side smoothly.

  If the result is not as specified, replace the recirculation damper servo motor.
