Section 190 (Air Conditioning System (Service Information)): Condenser: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

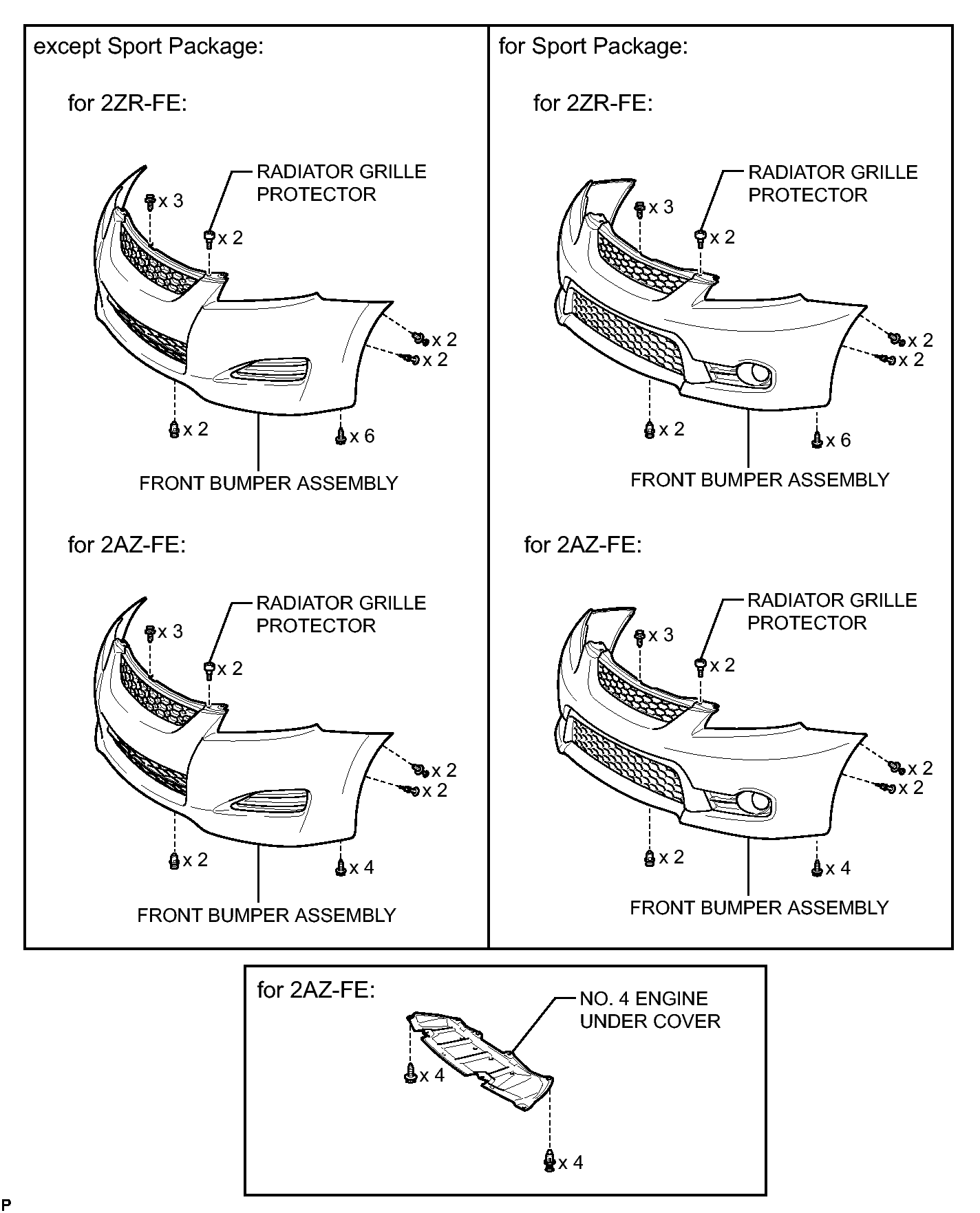

Fig 1: Identifying Condenser Replacement Components (1 Of 4)
GTY291997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

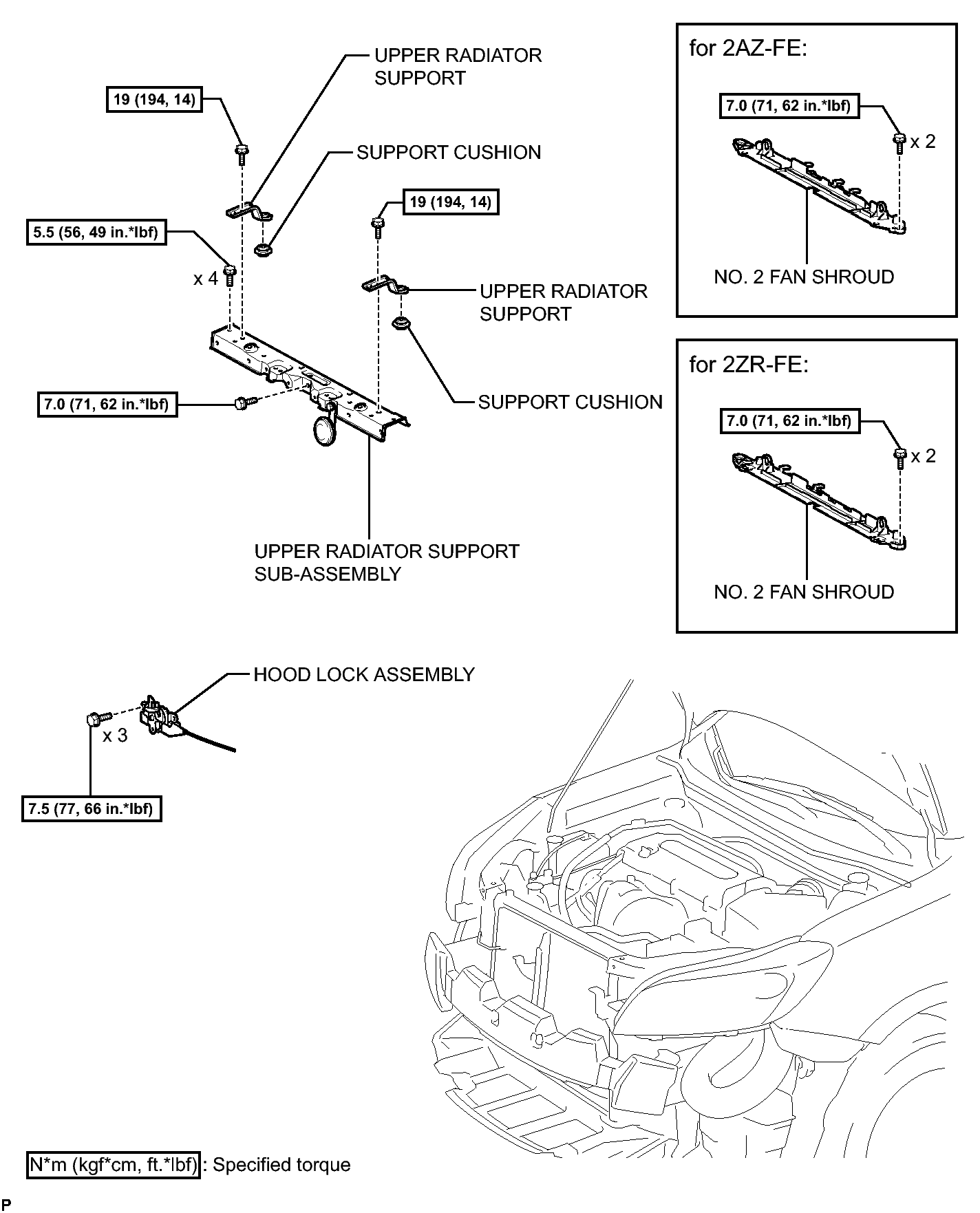

Fig 1: Identifying Condenser Replacement Components With Torque Specifications (2 Of 4)
GTY247011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

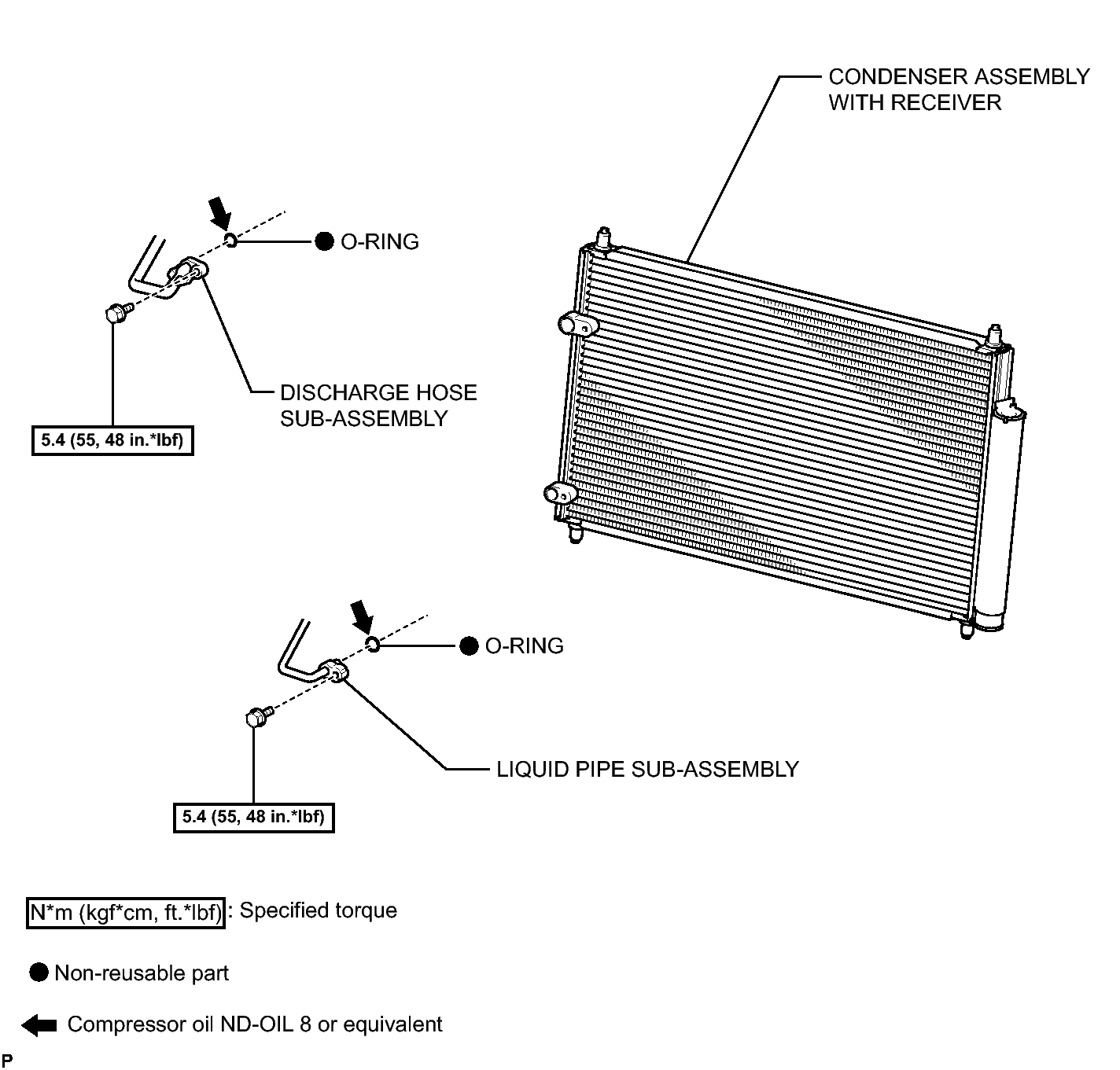

Fig 1: Identifying Condenser Replacement Components With Torque Specifications (3 Of 4)
GTY246993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

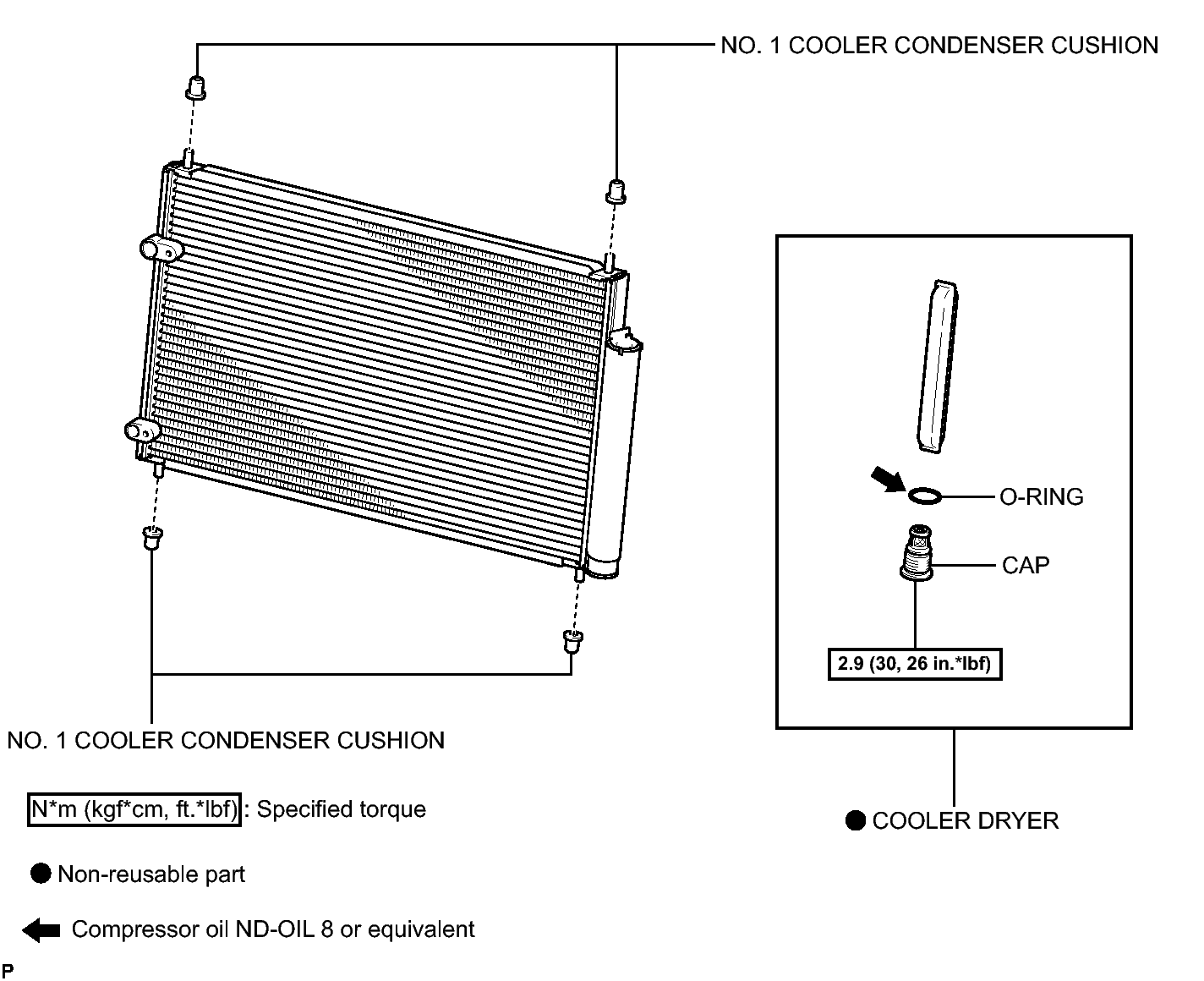

Fig 1: Identifying Condenser Replacement Components With Torque Specifications (4 Of 4)
GTY246994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
