PTC Heater Assembly: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

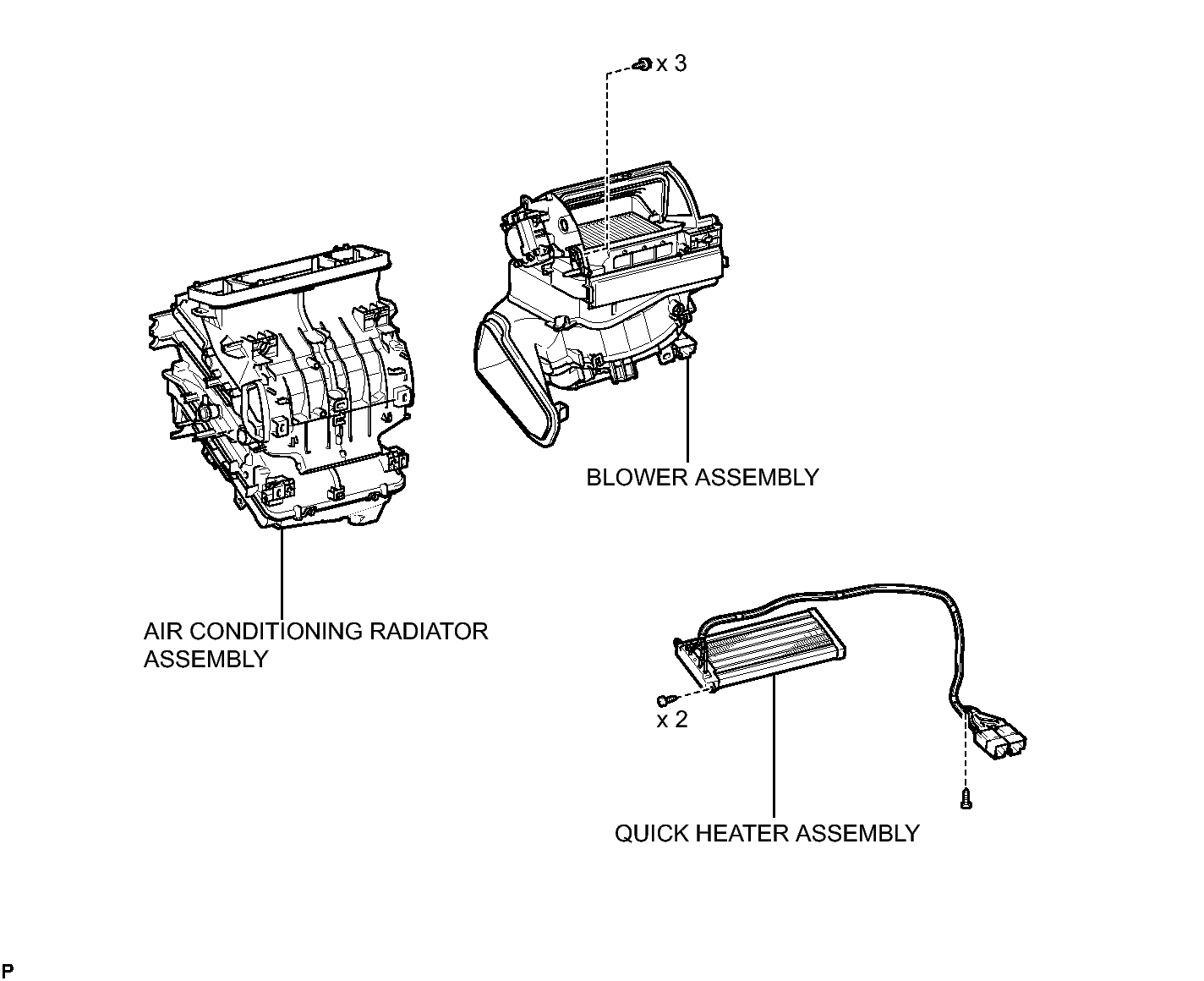

Fig 1: Identifying PTC Heater Assembly Replacement Components (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying PTC Heater Assembly Replacement Components (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying PTC Heater Assembly Replacement Components (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

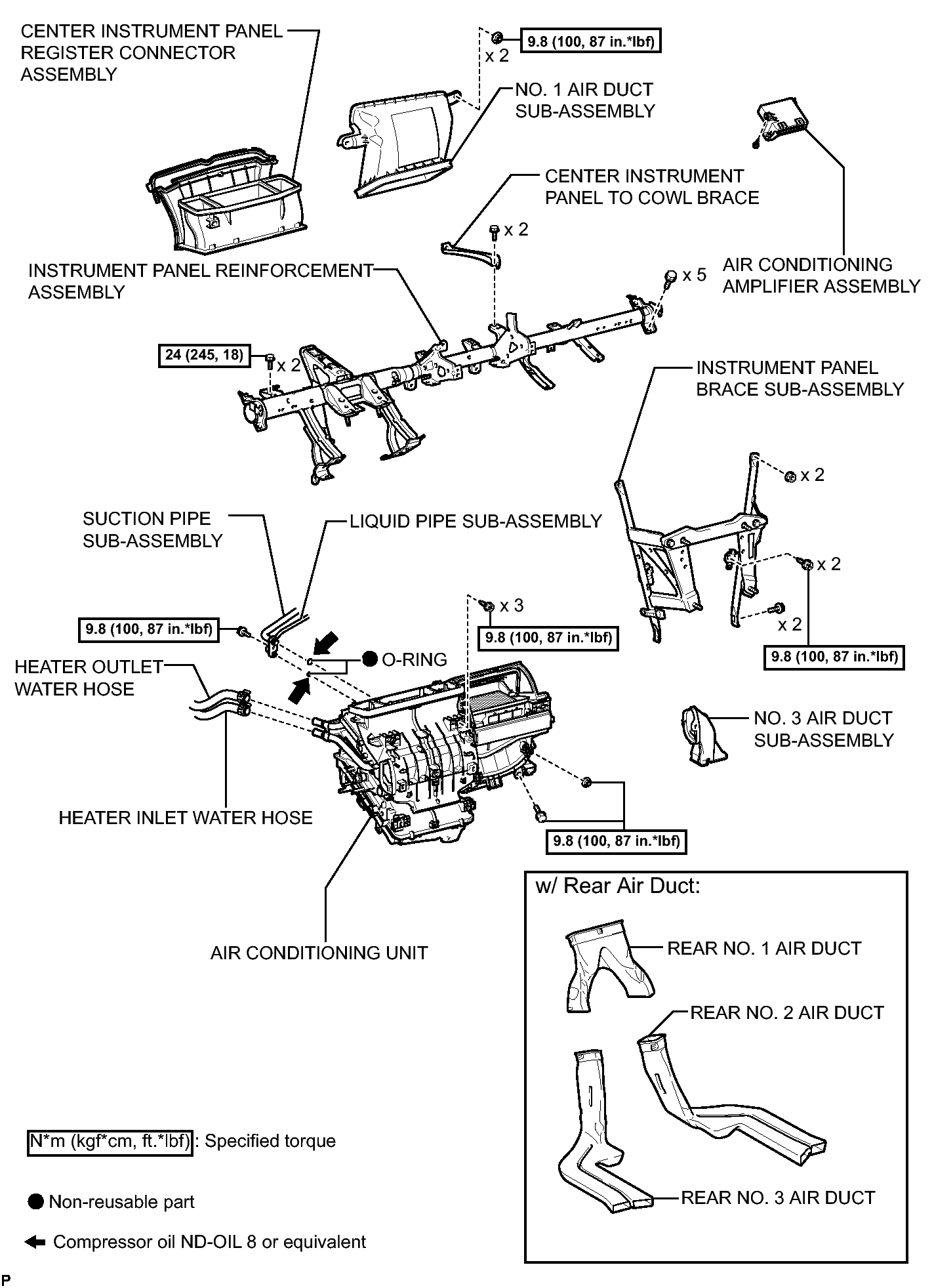

Fig 1: Identifying PTC Heater Assembly Replacement Components With Torque Specifications (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying PTC Heater Assembly Replacement Components (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying PTC Heater Assembly Replacement Components (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying PTC Heater Assembly Replacement Components (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying PTC Heater Assembly Replacement Components With Torque Specifications (8 Of 12)

Fig 1: Identifying PTC Heater Assembly Replacement Components With Torque Specifications (9 Of 12)

Fig 1: Identifying PTC Heater Assembly Replacement Components With Torque Specifications (10 Of 12)

Fig 1: Identifying PTC Heater Assembly Replacement Components With Torque Specifications (11 Of 12)

Fig 1: Identifying PTC Heater Assembly Replacement Components (12 Of 12)
