WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

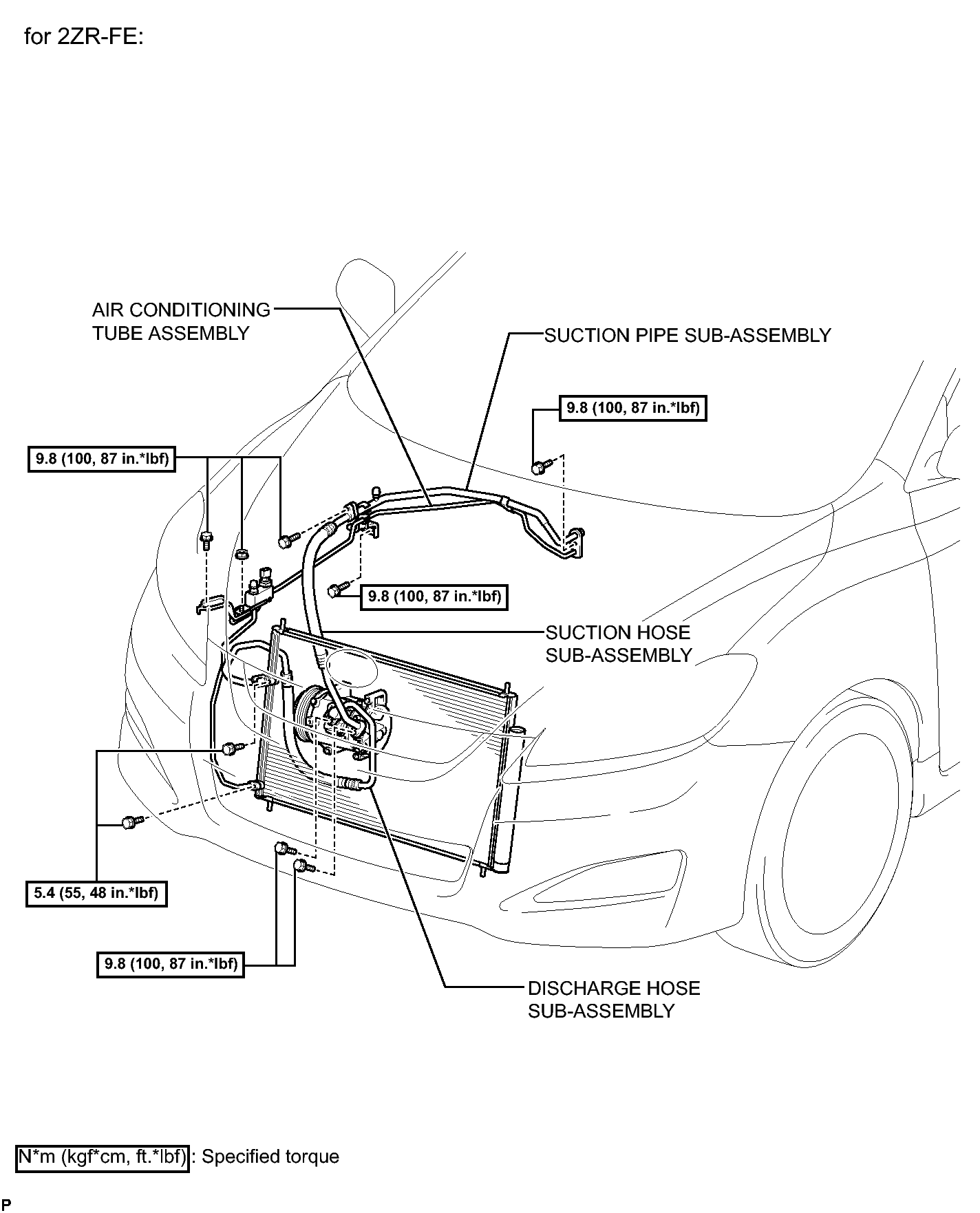

Fig 1: Identifying Refrigerant Line Replacement Components With Torque Specifications (For 2ZR-FE) (1 Of 2)
