Stereo Jack Adapter Assembly: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL STEREO JACK ADAPTER ASSEMBLY
    1. Engage the 2 claws to install the stereo jack adapter assembly.

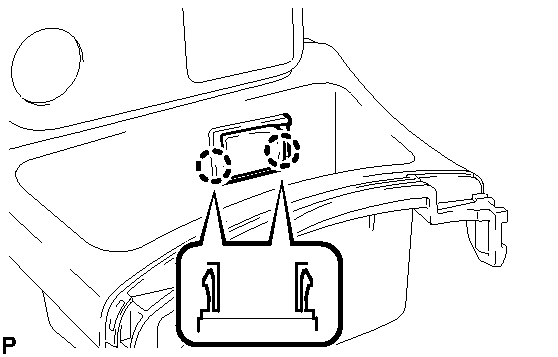

      Fig 1: Remove/Install Stereo Jack Adapter Assembly Claws
      GTY232661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 SWITCH HOLE BASE  . Refer to INSTALLATION - Step 22
  3. INSTALL FRONT UPPER CONSOLE BOX  . Refer to INSTALLATION - Step 23
