Front Door Courtesy Switch: Inspection: Inspection
WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

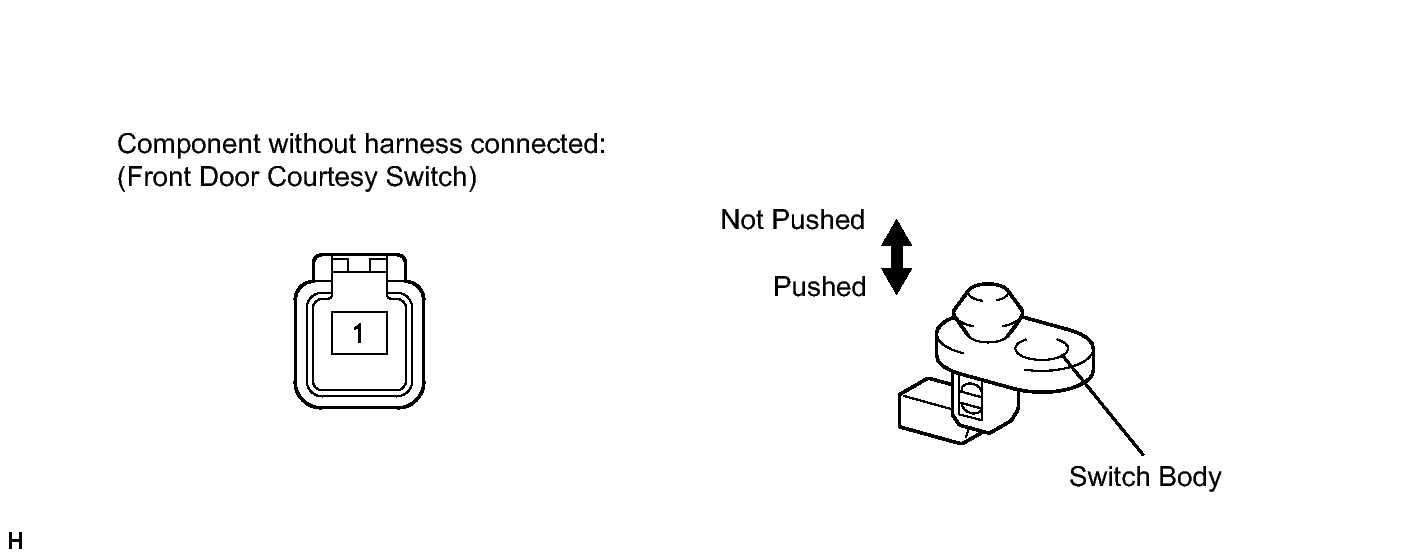

- INSPECT FRONT DOOR COURTESY SWITCH
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance
| Tester Connection |
Switch Condition |
Specified Condition |
| 1 - Switch body |
Not pushed (ON) |
Below 1 Ω |
| Pushed (OFF) |
10 kΩ or higher |
If the result is not as specified, replace the switch.
