FRONT SEAT CUSHION ASSEMBLY (w/ Occupant Classification ECU, Occupant Classification Sensor): Components: Illustration

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Front Seat Cushion Assembly (W/ Occupant Classification ECU, Occupant Classification Sensor) Replacement Components With Torque Specifications (1 Of 2)
GTY190174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

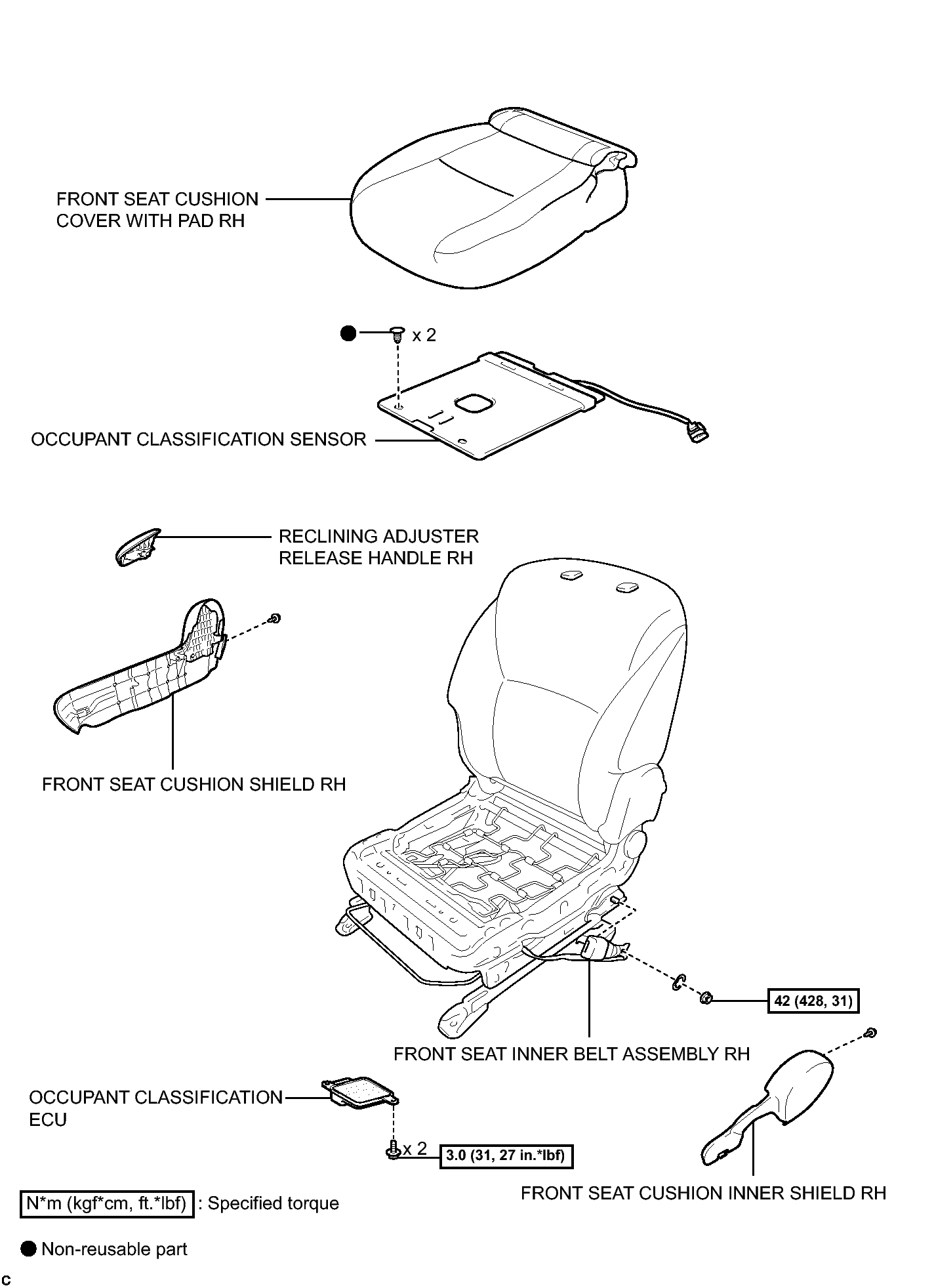

Fig 1: Identifying Front Seat Cushion Assembly (W/ Occupant Classification ECU, Occupant Classification Sensor) Replacement Components With Torque Specifications (2 Of 2)
GTY205011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
