Front Brake: Components: Illustration

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

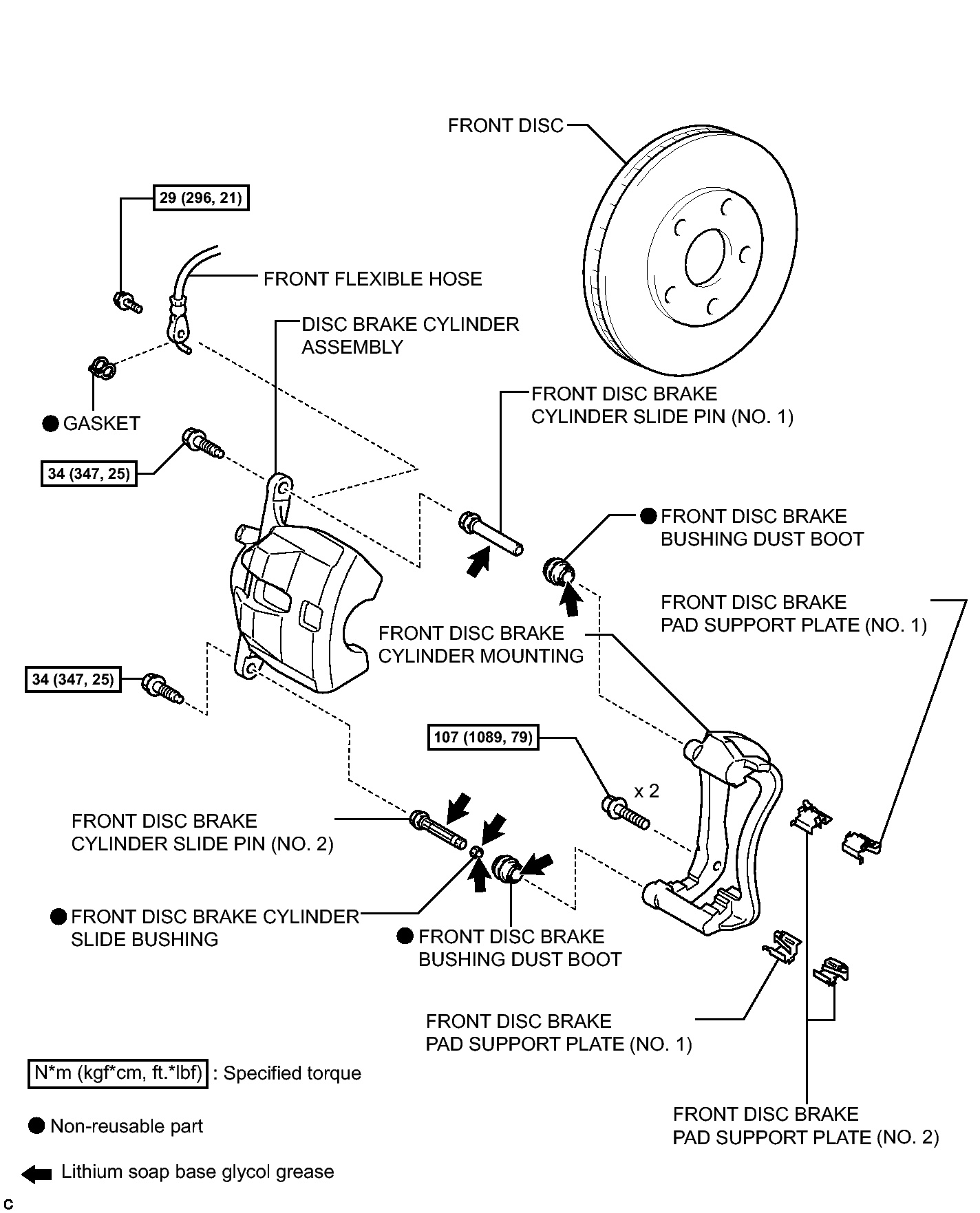

Fig 1: Identifying Front Brake Replacement Components With Torque Specifications (1 Of 2)
GTY204911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

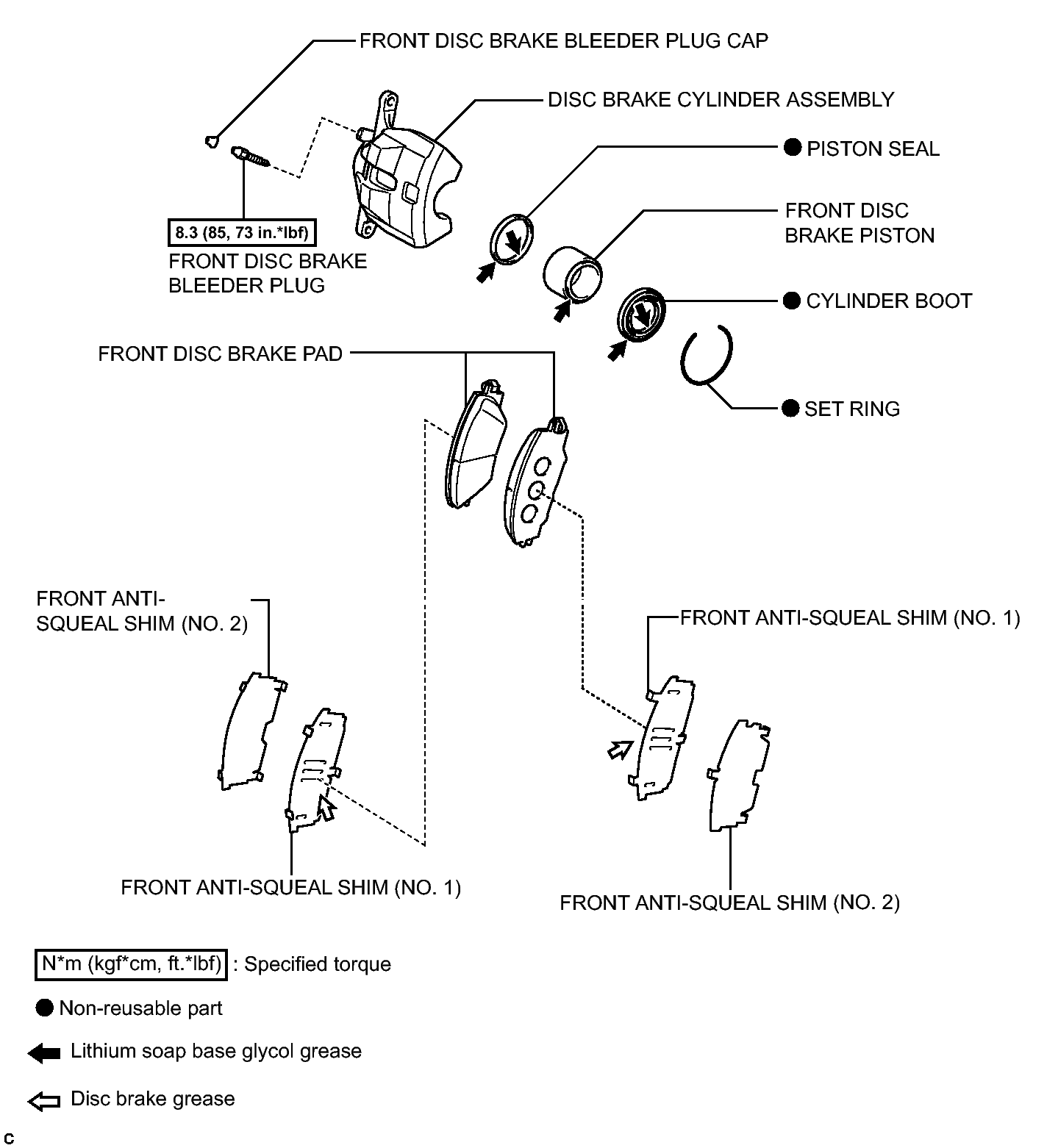

Fig 1: Identifying Front Brake Replacement Components With Torque Specifications (2 Of 2)
GTY171049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
