Rear Combination Light Assembly: Reassembly: Reassembly

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR COMBINATION LIGHT GASKET
1. Install a new rear combination light gasket.

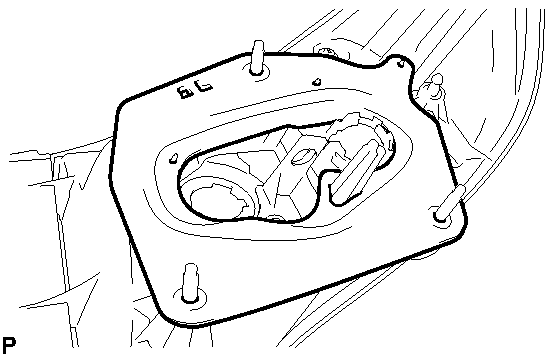

  Fig 1: Identifying Rear Combination Light Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE
1. Connect the clamp and install the rear combination light socket and wire.

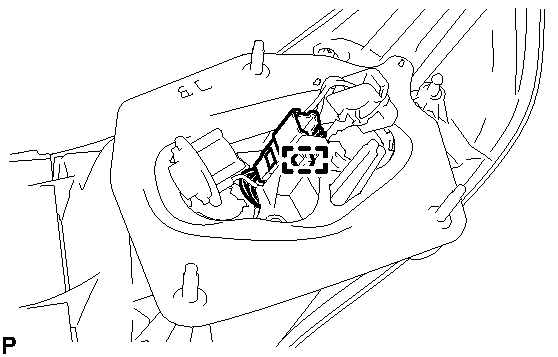

  Fig 2: Identifying Rear Combination Light Socket And Wire Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR TURN SIGNAL LIGHT BULB
1. Install the rear turn signal light bulb to the rear combination light socket and wire.
2. Turn the rear turn signal light bulb and rear combination light socket and wire in the direction indicated by the arrow and install them as a unit.

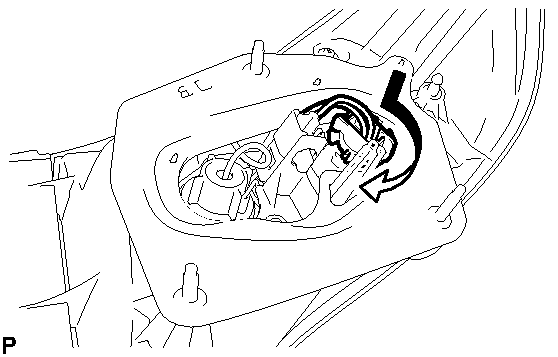

  Fig 3: Installing Rear Turn Signal Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TAIL AND STOP LIGHT BULB
1. Install the tail and stop light bulb to the rear combination light socket and wire.
2. Turn the tail and stop light bulb and rear combination light socket and wire in the direction indicated by the arrow and install them as a unit.

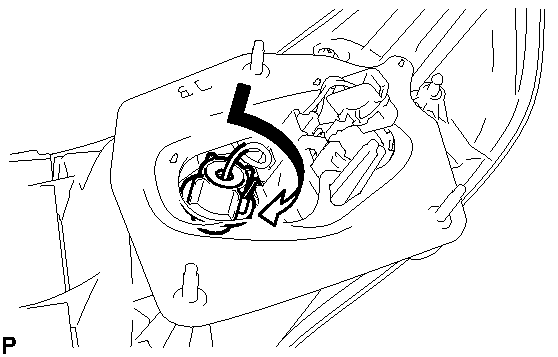

  Fig 4: Installing Tail And Stop Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
