Section 301 (Air Conditioning System (Service Information)): Condenser: Disassembly: Disassembly

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 COOLER CONDENSER CUSHION
1. Remove the 4 No. 1 cooler condenser cushions.

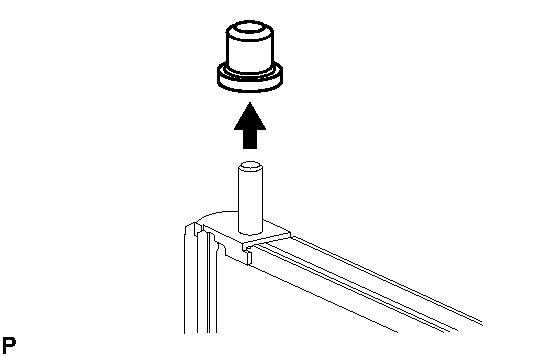

  Fig 1: Identifying Cooler Condenser Cushions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COOLER DRYER
1. Using a 14 mm straight hexagon wrench, remove the cap from the modulator.

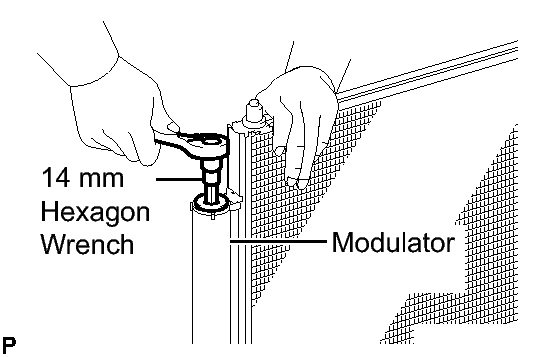

  Fig 2: Removing/Installing Cap From Modulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using pliers, remove the cooler dryer.

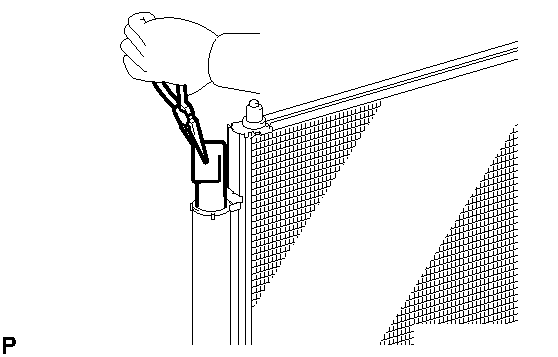

  Fig 3: Removing/Installing Cooler Dryer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
