Front Console Box: Installation: Installation

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CONSOLE BOX ASSEMBLY (for Automatic Transaxle)
1. Install the 2 screws.
2. Install the console box assembly with the 2 bolts and 2 screws.
INSTALL CONSOLE BOX ASSEMBLY (for Manual Transaxle)
1. Install the 2 screws.
2. Install the console box assembly with the 2 bolts.
INSTALL CONSOLE BOX CARPET
1. Install the console box carpet.
INSTALL CONSOLE BOX CUP HOLDER
1. Install the console box cup holder.

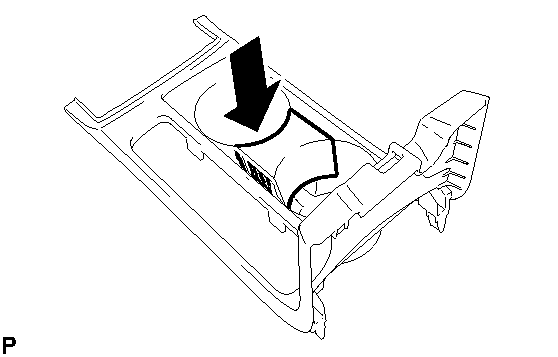

  Fig 1: Installing Console Box Cup Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
1. Engage the 6 clips and 2 guides to install the upper console panel sub-assembly.

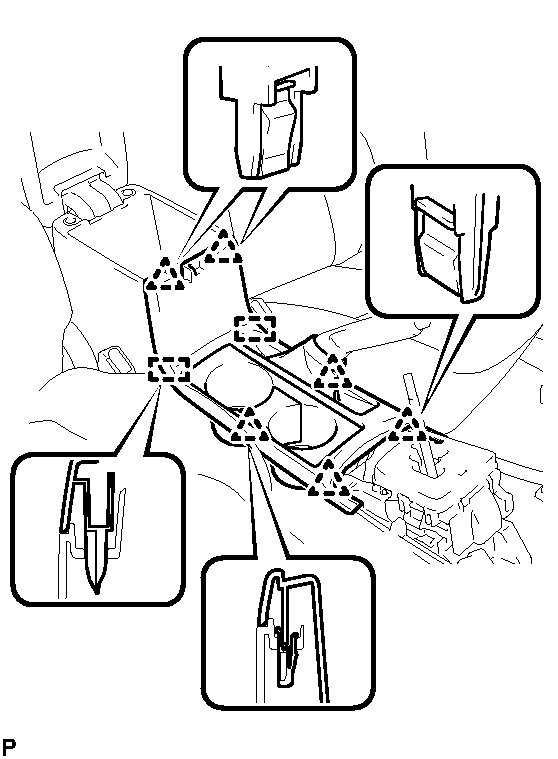

  Fig 2: Identifying Upper Console Panel Sub-Assembly, Clips & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO. 1 CONSOLE BOX INSERT See step 10
INSTALL FRONT NO. 2 CONSOLE BOX INSERT See step 13
INSTALL INSTRUMENT PANEL BOX ASSEMBLY See step 20
INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle) See step 22
INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle) See step 21
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) See step 24
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) See step 23
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH See step 15
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH See step 16
