Steering Pad Switch: Components: Illustration

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

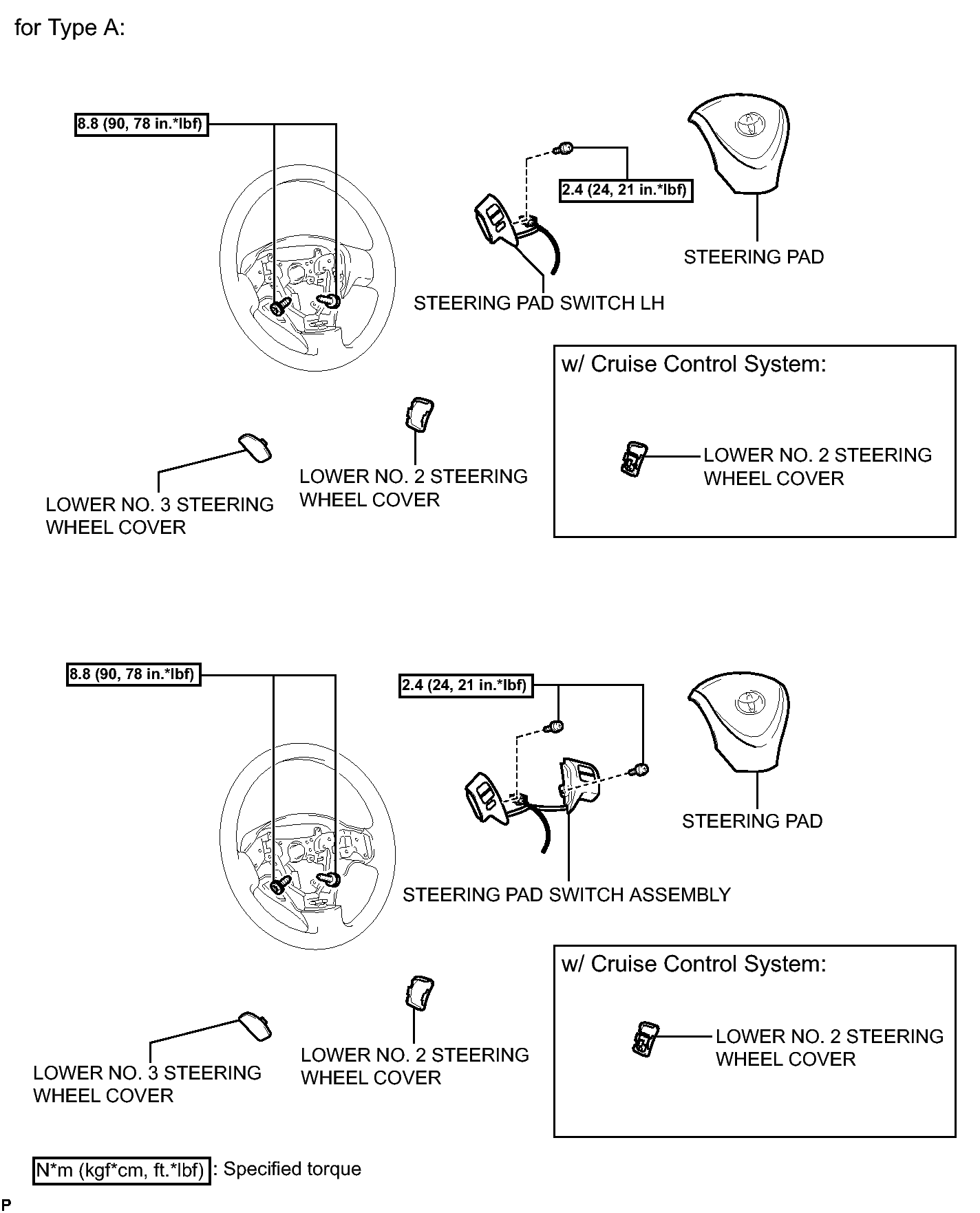

Fig 1: Identifying Steering Pad Switch Replacement Components With Torque Specification (1 Of 2)
GTY322089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

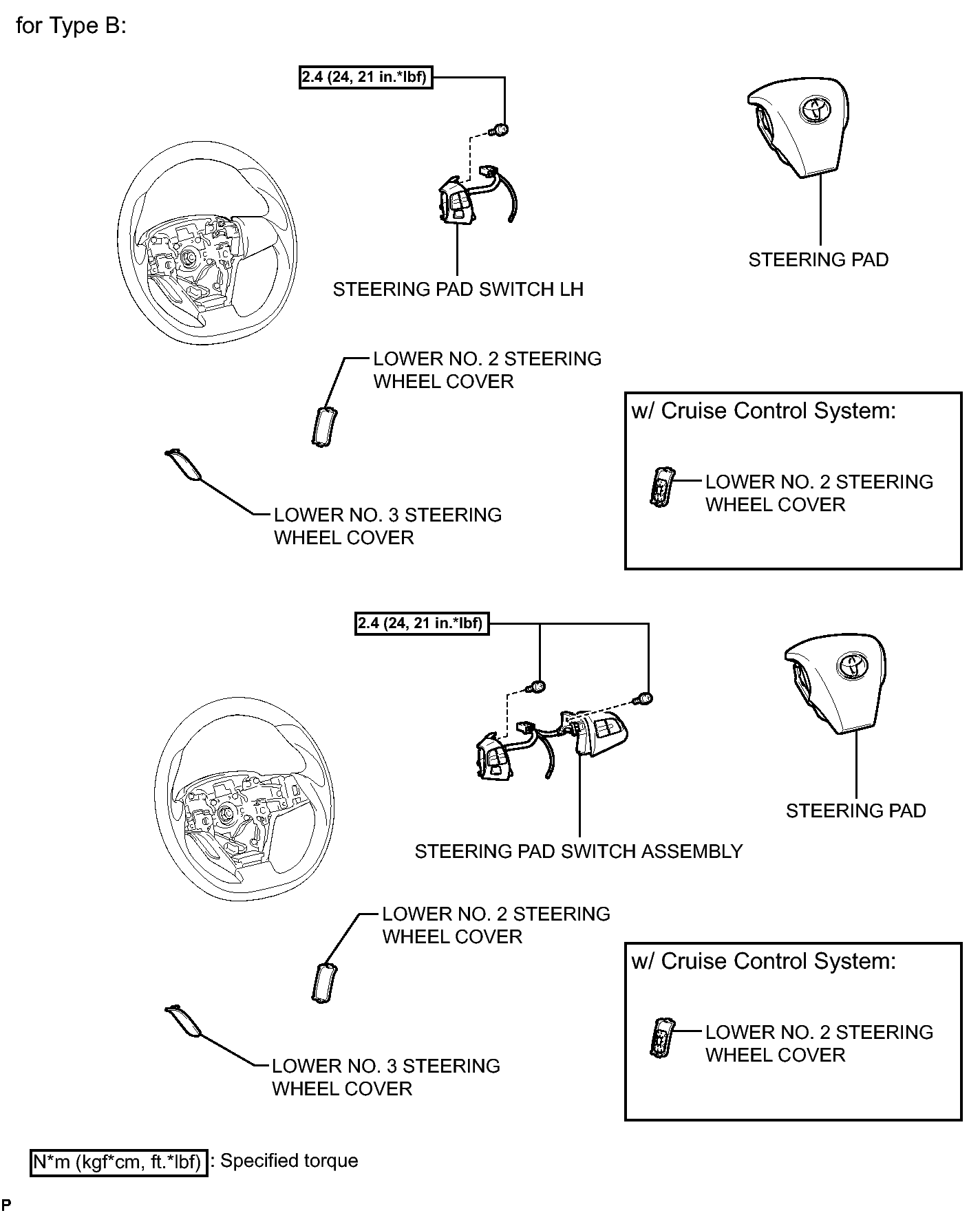

Fig 1: Identifying Steering Pad Switch Replacement Components With Torque Specification (2 Of 2)
GTY323058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
