Engine Hood Courtesy Switch: Installation: Installation

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HOOD LOCK ASSEMBLY
1. Apply MP grease to the sliding areas of the lock.

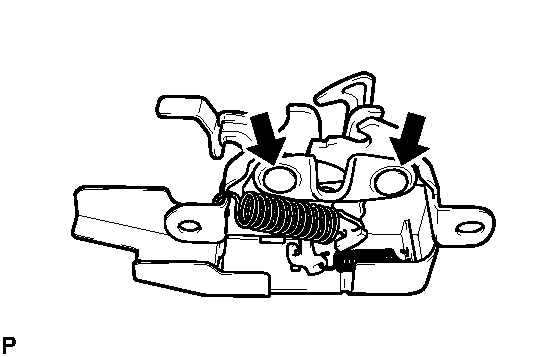

  Fig 1: Identifying Grease Applying Area On Sliding Areas Of Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the hood lock control cable.

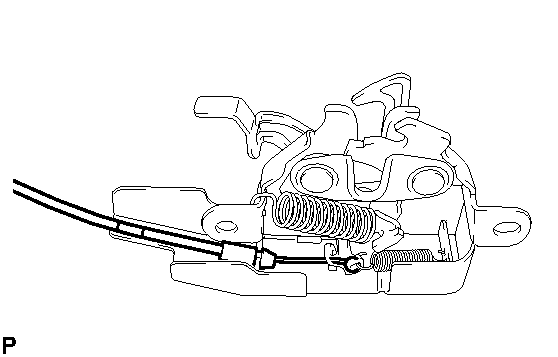

  Fig 2: Identifying Hood Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the hood lock assembly with the 3 bolts.

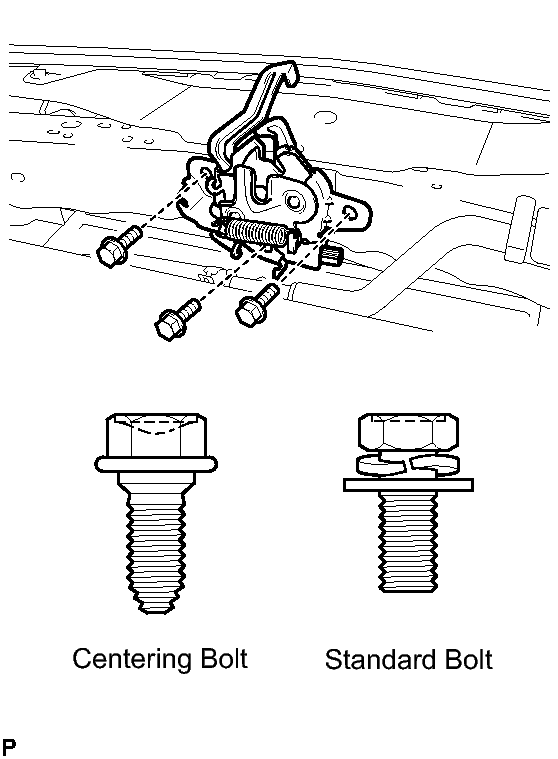

  Fig 3: Identifying Hood Lock Assembly & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Centering Bolt

  Torque: 7.5 N*m (77 kgf*cm, 66 in.*lbf)

  Standard Bolt

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
INSPECT HOOD SUB-ASSEMBLY . Refer to ON-VEHICLE INSPECTION - Step 1
ADJUST HOOD SUB-ASSEMBLY . Refer to ADJUSTMENT - Step 1
INSTALL FRONT BUMPER ASSEMBLY (for 2AZ-FE) . Refer to INSTALLATION - Step 1
INSTALL FRONT BUMPER ASSEMBLY (for 2ZR-FE) . Refer to INSTALLATION - Step 2
INSTALL NO. 4 ENGINE UNDER COVER (for 2AZ-FE) . Refer to INSTALLATION - Step 3
INSTALL RADIATOR GRILLE PROTECTOR . Refer to INSTALLATION - Step 4
ADJUST FOG LIGHT AIMING (w/ Fog Light)
Refer to ADJUSTMENT
