License Plate Light Assembly: Inspection: Inspection

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT LICENSE PLATE LIGHT ASSEMBLY
1. Connect a positive (+) lead from the battery to terminal 2 and a negative (-) lead to terminal 1.

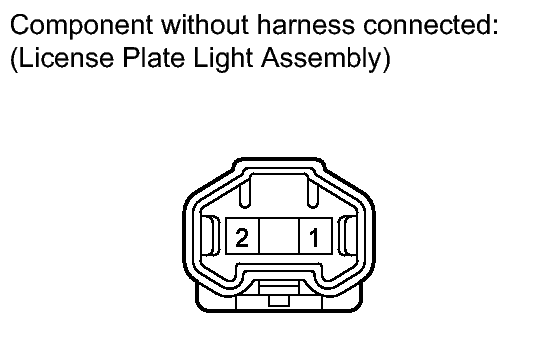

  Fig 1: View Of License Plate Light Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the light comes on.
  OK

  The light comes on.

  If the result is not as specified, replace the bulb or light socket.
