Engine Room Relay Block And Engine Room Junction Block Inner Circuit

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

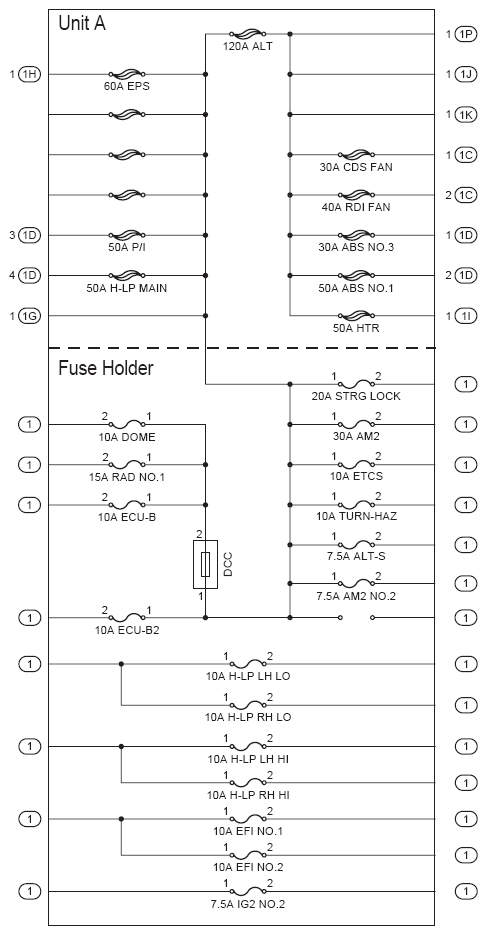

Fig 1: Engine Room R/B And Engine Room J/B Inner Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

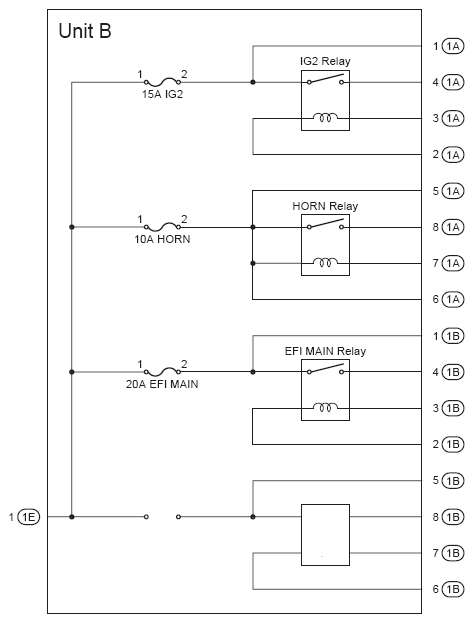

Fig 1: Engine Room R/B & J/B Inner Circuit Diagram With Relays

Engine Room R/B And J/B Inner Circuit Relay Identification

RELAY DESCRIPTION
IG2 Relay
Horn Relay
EFI Main Relay
