Relay Block, Junction Block & Ecu Locations: Body

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

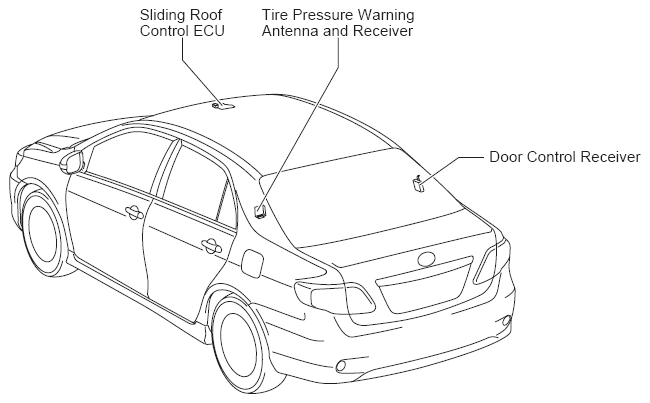

Fig 1: Body ECU Components Locations
G08842667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
