Accelerator Pedal: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ACCELERATOR PEDAL ASSEMBLY
    1. Install the accelerator pedal assembly with the 2 bolts.

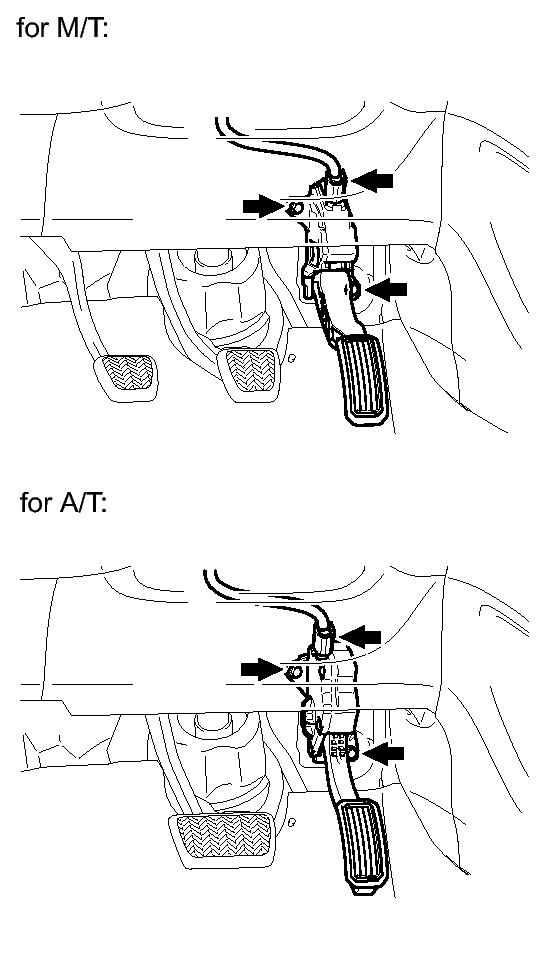

      Fig 1: Locating Accelerator Pedal Bolts
      GTY188093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Install the accelerator pedal assembly connector.
