Ignition Coil And Spark Plug: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

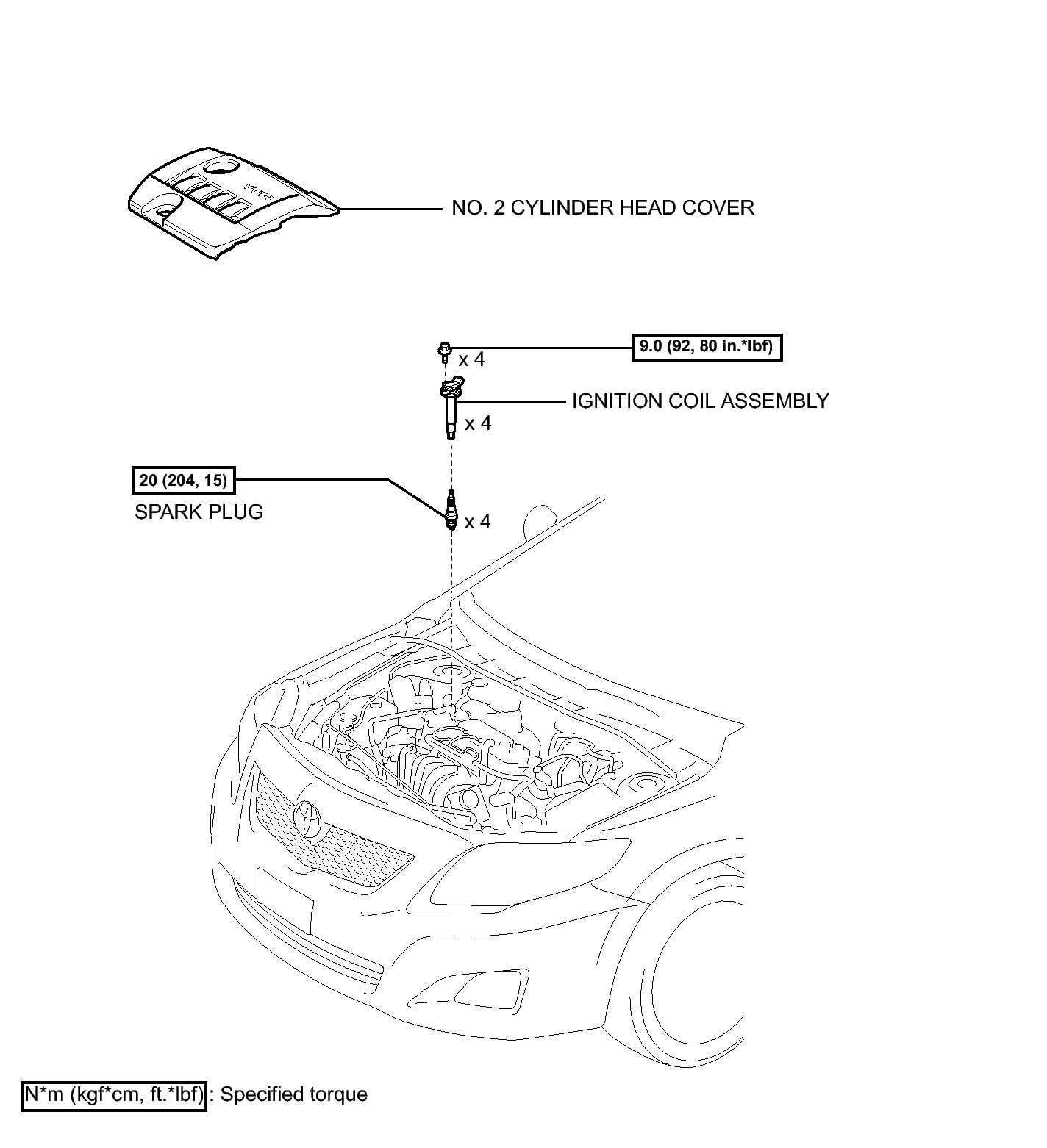

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications
GTY188792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
