PTC Heater Assembly: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

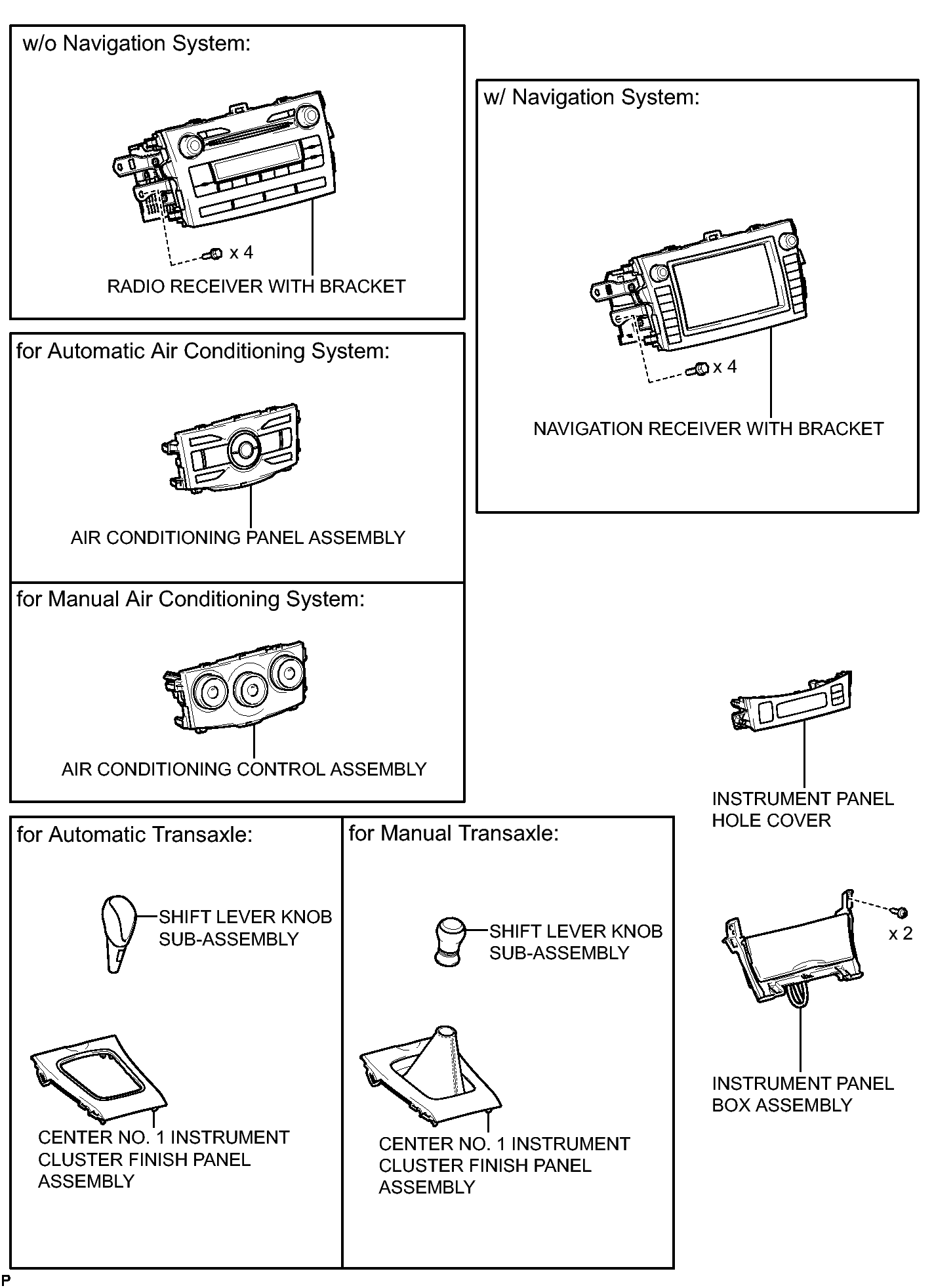

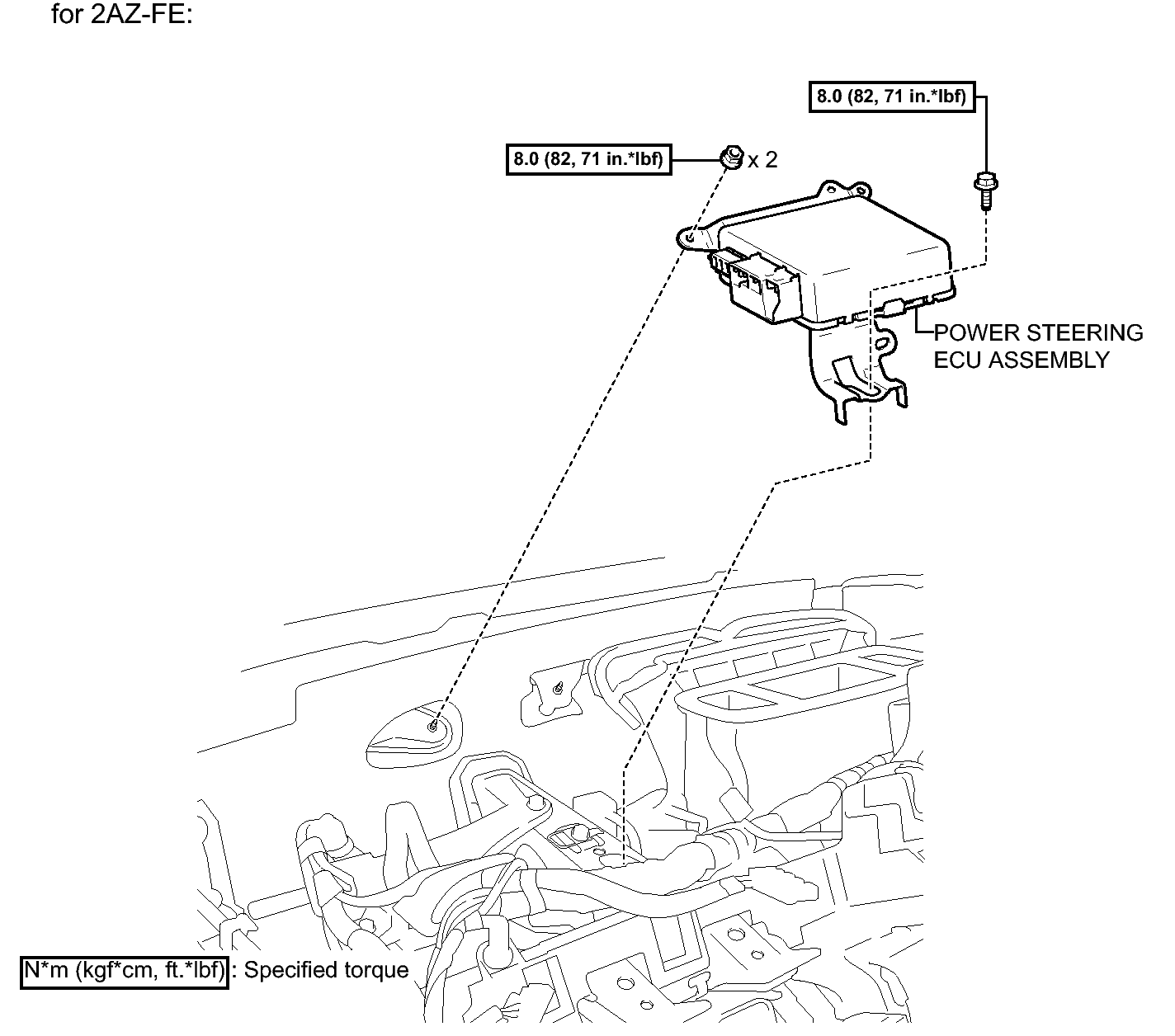

Fig 1: Identifying PTC Heater Assembly Replacement Components With Torque Specifications (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

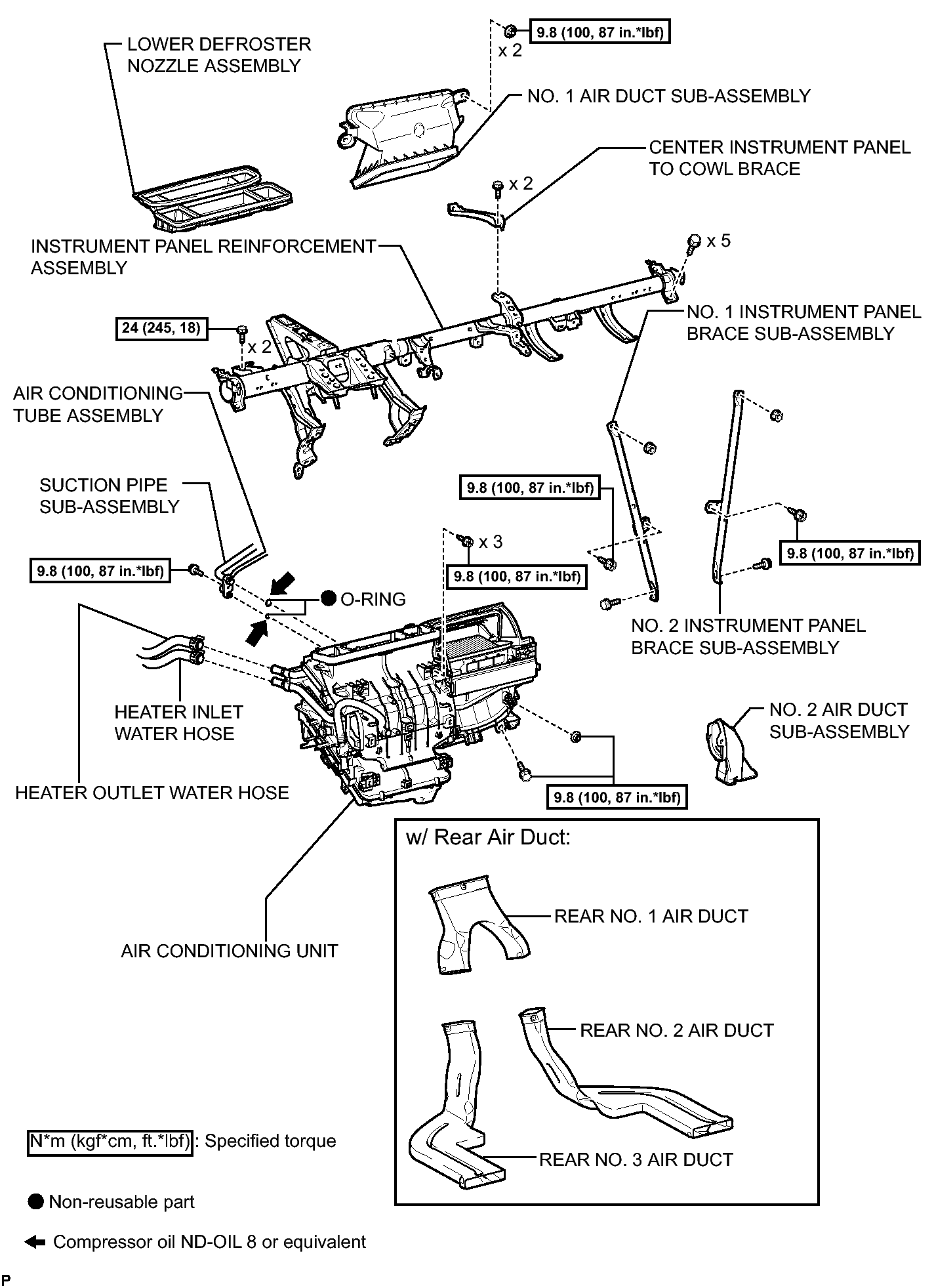

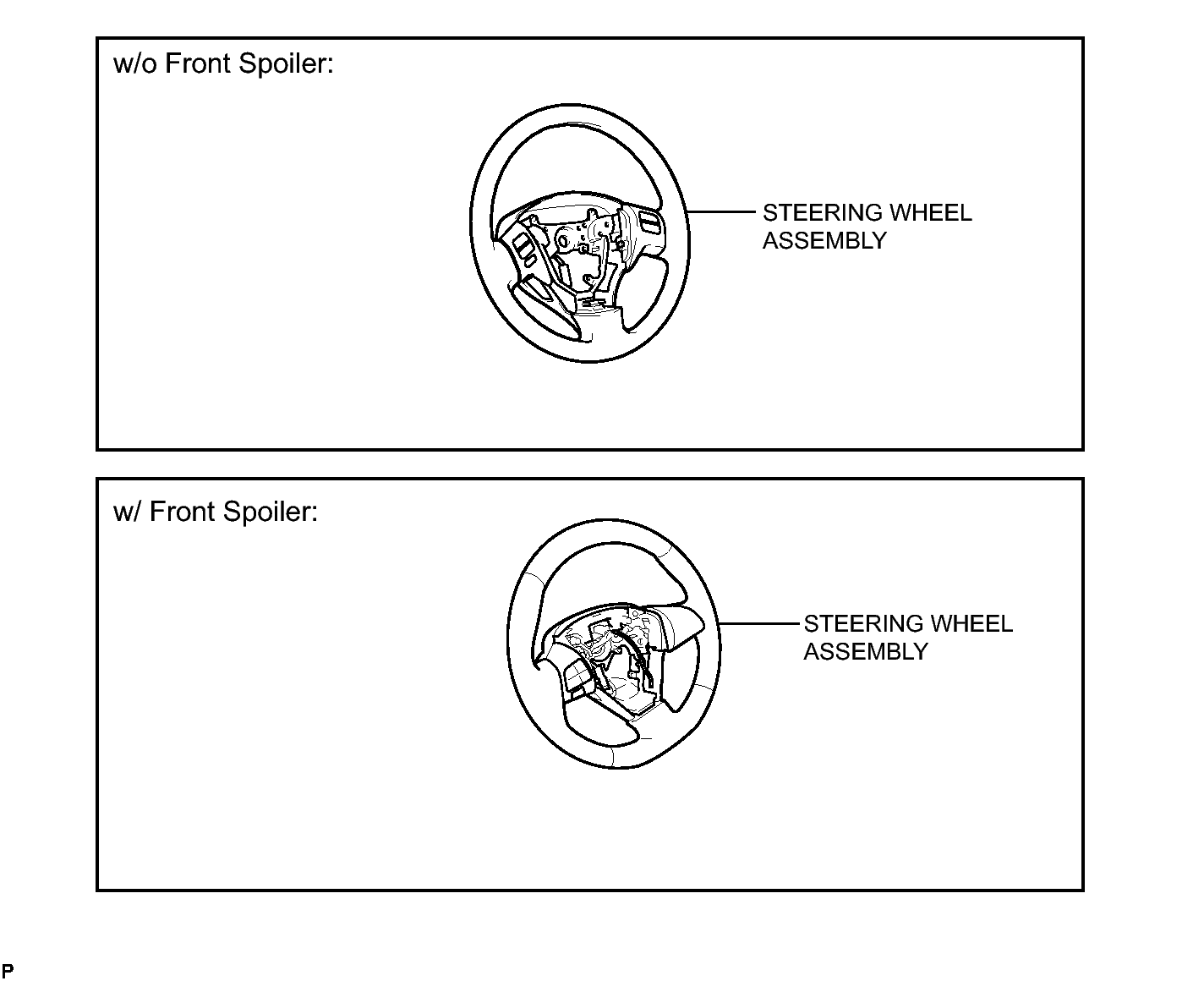

Fig 1: Identifying PTC Heater Assembly Replacement Components (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

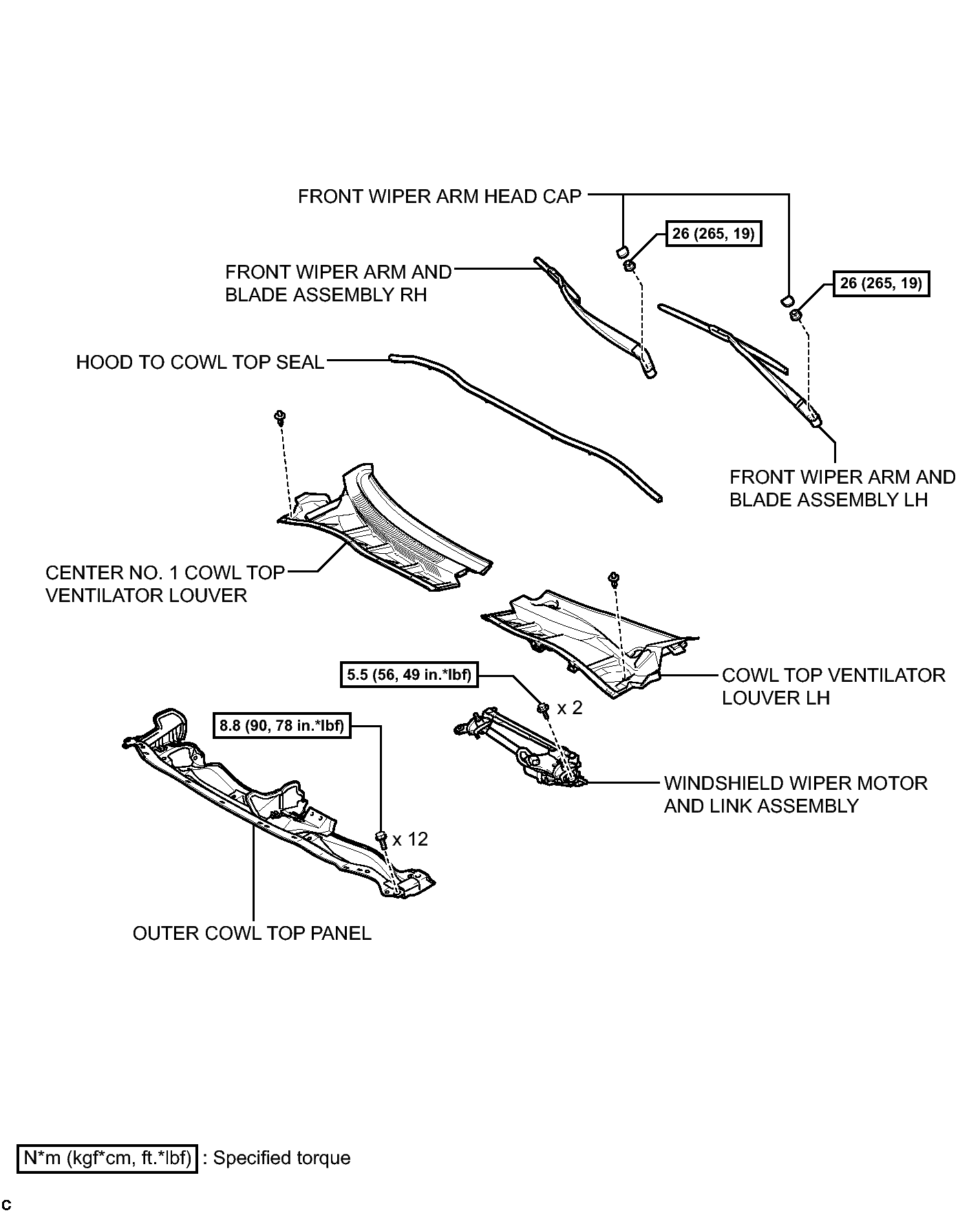

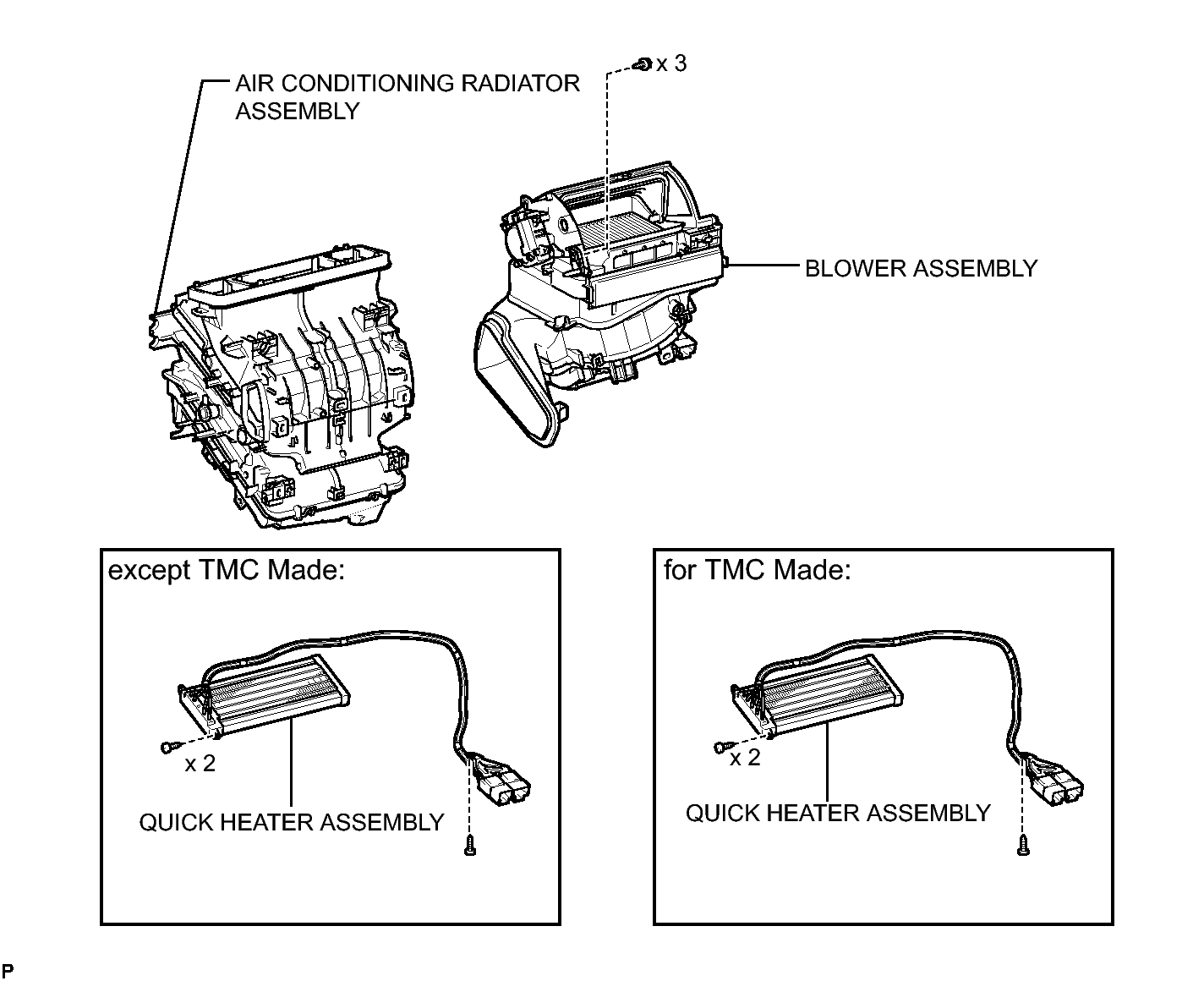

Fig 1: Identifying PTC Heater Assembly Replacement Components With Torque Specifications (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

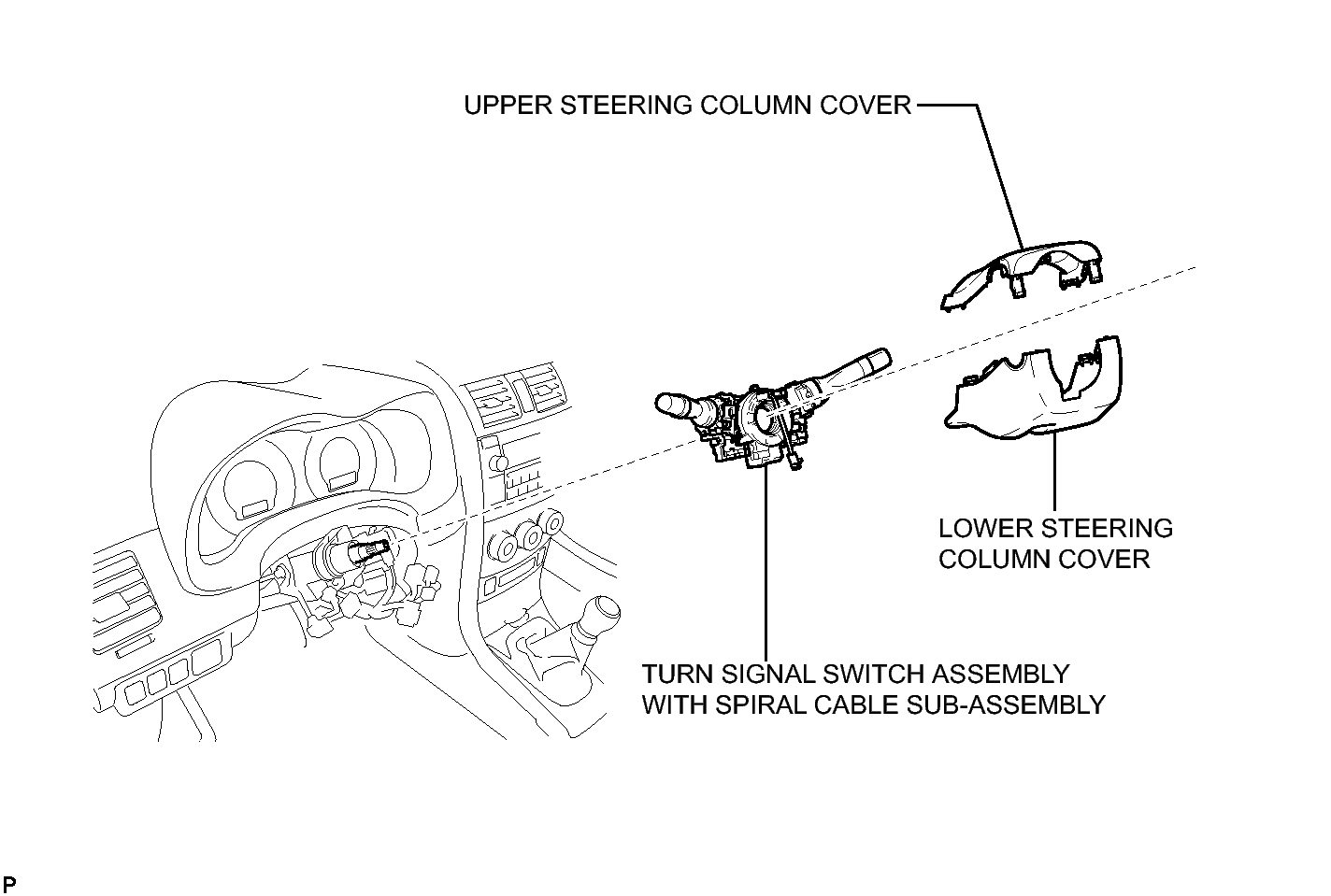

Fig 1: Identifying PTC Heater Assembly Replacement Components With Torque Specifications (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

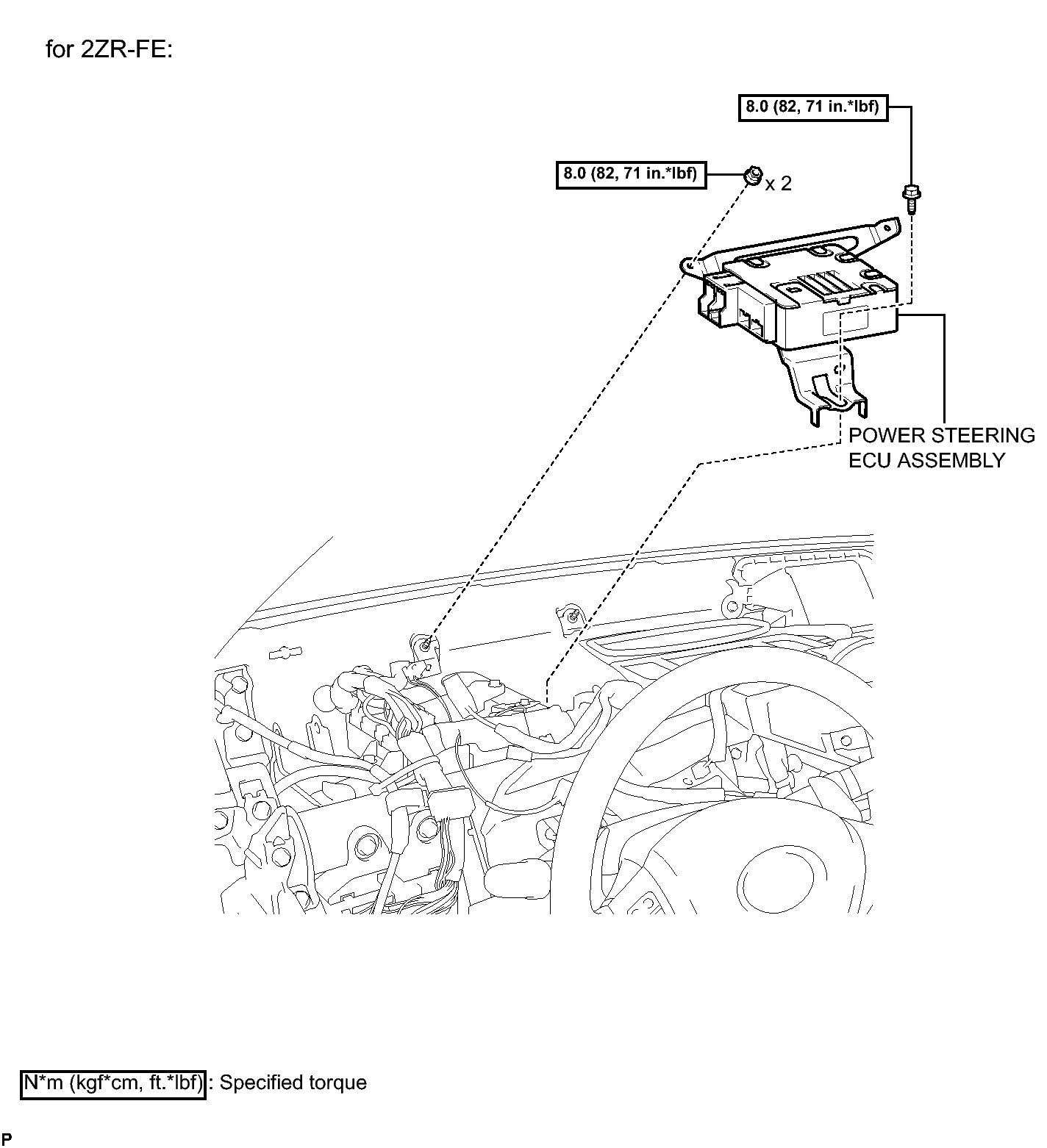

Fig 1: Identifying PTC Heater Assembly Replacement Components With Torque Specifications (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

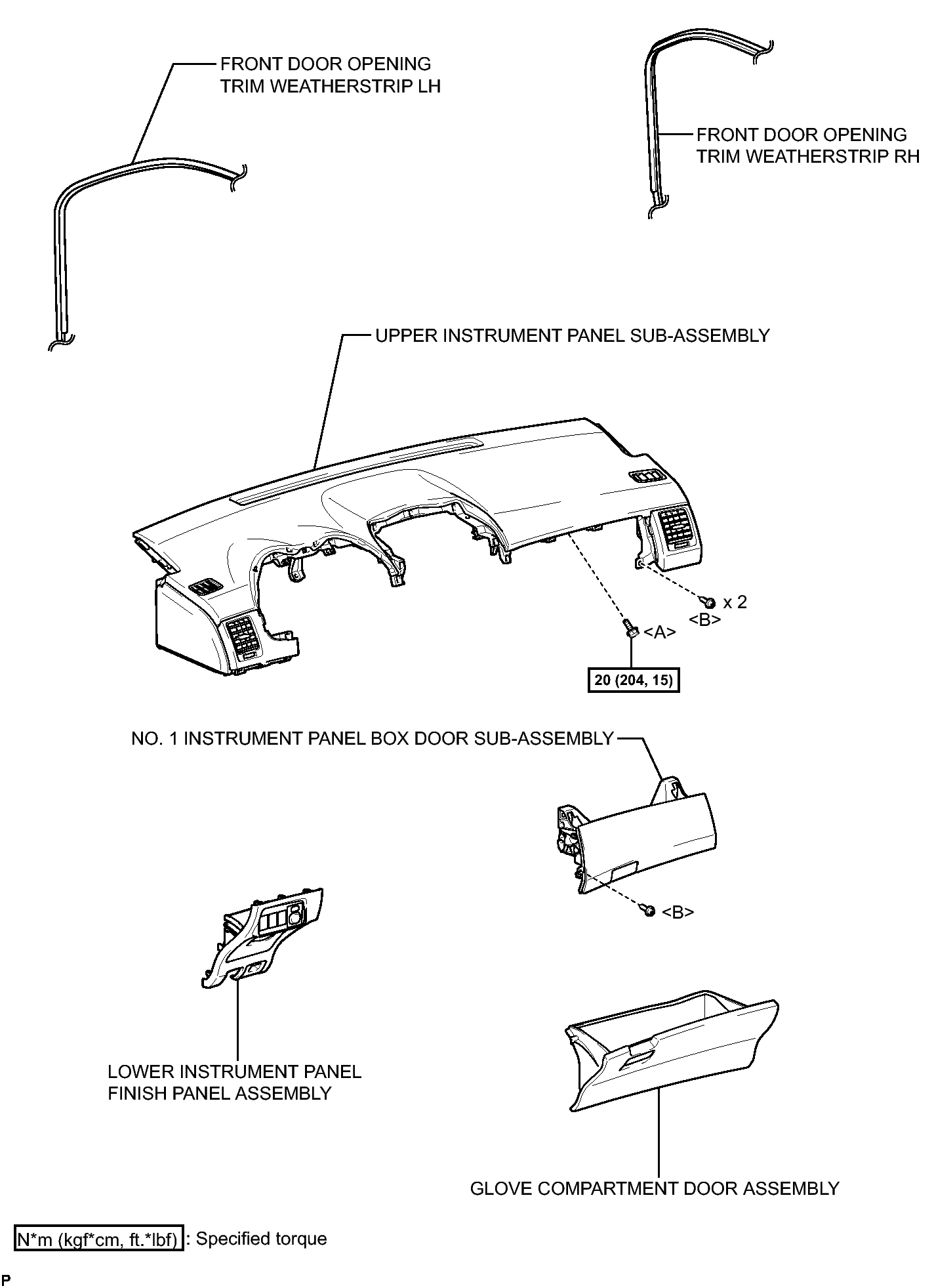

Fig 1: Identifying PTC Heater Assembly Replacement Components (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

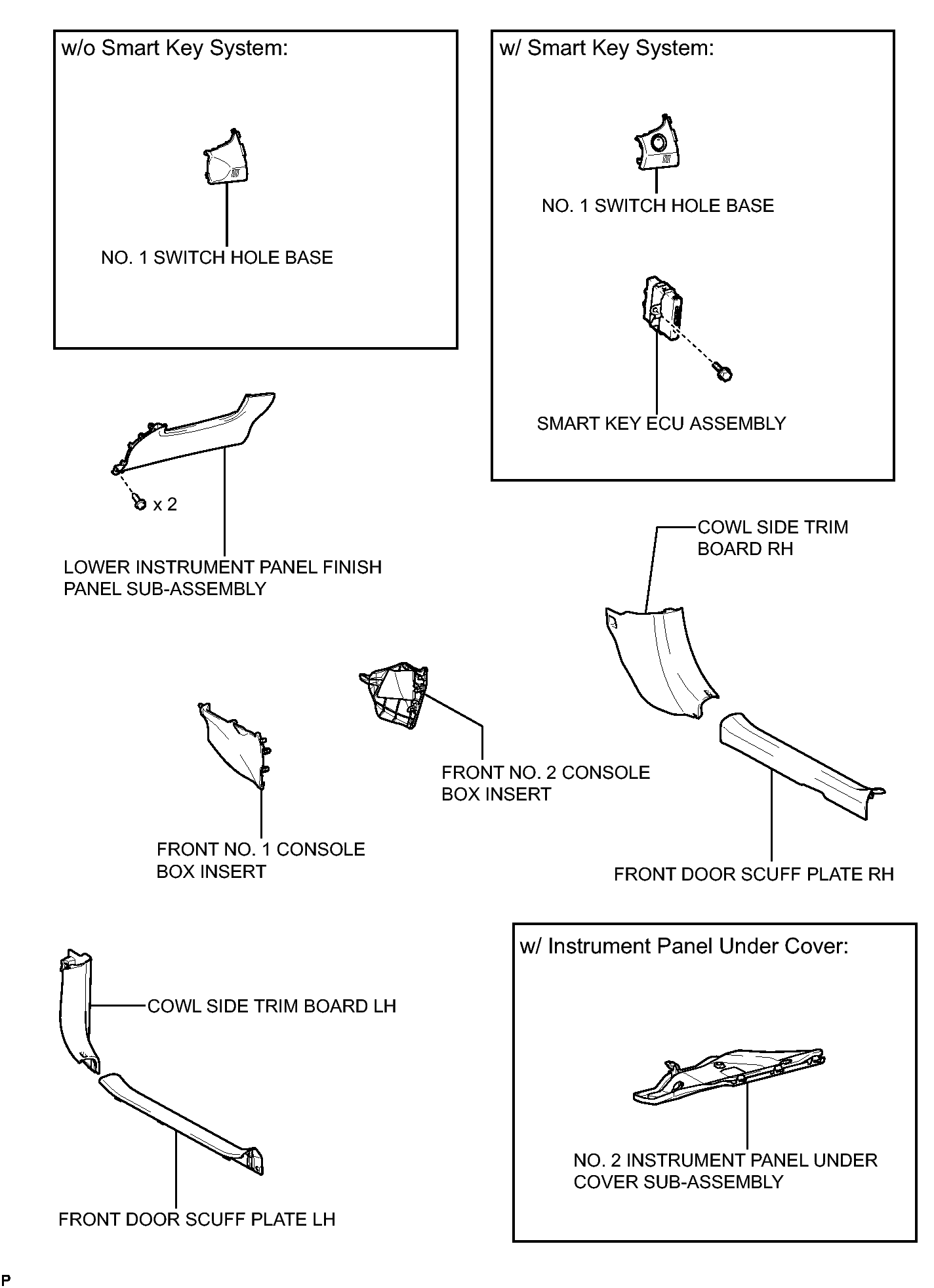

Fig 1: Identifying PTC Heater Assembly Replacement Components (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

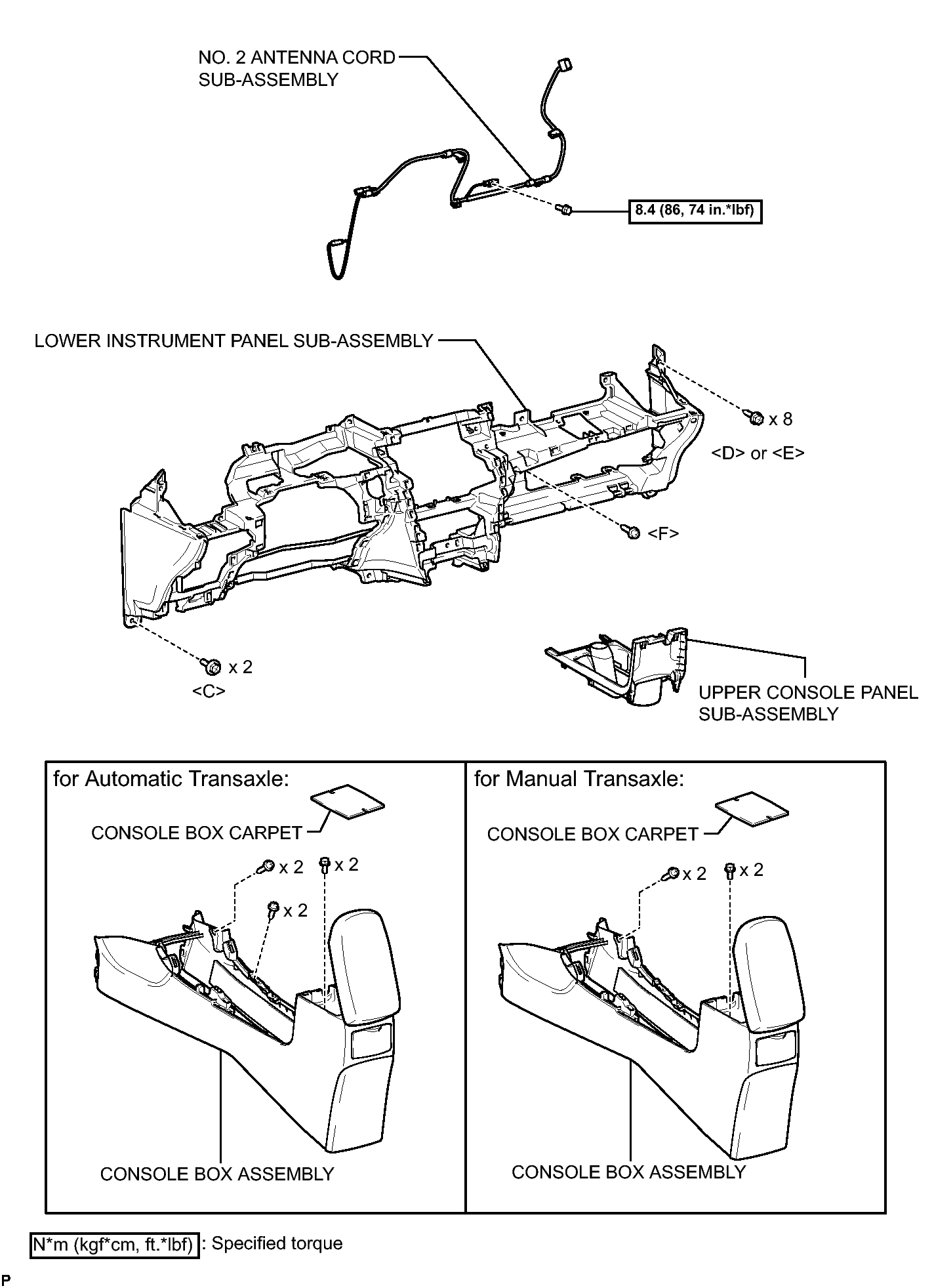

Fig 1: Identifying PTC Heater Assembly Replacement Components With Torque Specifications (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying PTC Heater Assembly Replacement Components (9 Of 13)

Fig 1: Identifying PTC Heater Assembly Replacement Components (10 Of 13)

Fig 1: Identifying PTC Heater Assembly Replacement Components With Torque Specifications (11 Of 13)

Fig 1: Identifying PTC Heater Assembly Replacement Components With Torque Specifications (12 Of 13)

Fig 1: Identifying PTC Heater Assembly Replacement Components (13 Of 13)
