Room Temperature Sensor: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ROOM TEMPERATURE SENSOR
    1. Engage the 2 claws and install the room temperature sensor.

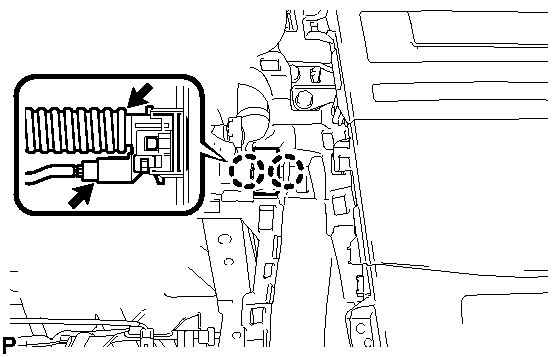

      Fig 1: Identifying Room Temperature Sensor And Claws
      GTY182583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the air hose.
    3. Connect the connector.
  2. INSTALL NO. 1 SWITCH HOLE BASE (w/o Smart Key System)  . Refer to INSTALLATION - Step 7
  3. INSTALL NO. 1 SWITCH HOLE BASE (w/ Smart Key System)  . Refer to INSTALLATION - Step 8
  4. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 2
  5. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  . Refer to INSTALLATION - Step 13
  6. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH  . Refer to INSTALLATION - Step 15
  7. INSTALL UPPER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 13
  8. INSTALL LOWER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 14
  9. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
  10. ADJUST SPIRAL CABLE  . Refer to INSTALLATION - Step 7
  11. INSTALL STEERING WHEEL ASSEMBLY (w/o Front Spoiler)

    Refer to INSTALLATION

  12. INSTALL STEERING WHEEL ASSEMBLY (w/ Front Spoiler)

    Refer to INSTALLATION

  13. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 9
  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  15. INSPECT STEERING PAD  . Refer to INSTALLATION - Step 8
  16. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM
