Section 58 (Charging System (2ZR-FE) (Service Information)): Generator: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL GENERATOR ASSEMBLY
1. Install the wire harness clamp bracket with the bolt.

  Fig 1: Locating Wire Harness Clamp Bracket Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)
2. Temporarily install the generator assembly with the 2 bolts.

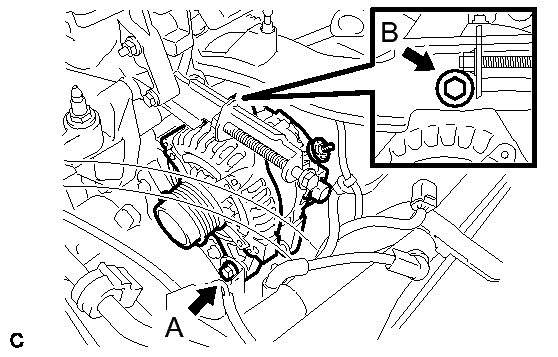

  Fig 2: Locating Generator Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Bolt A

  Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  Bolt B

  Torque: 19 N*m (190 kgf*cm, 14 ft.*lbf)
3. Install the connector and wire harness clamp.

  Fig 3: Identifying Terminal Cap, Nut, Generator Connector And Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the wire harness to terminal B with the nut and install the terminal cap.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
INSTALL V-RIBBED BELT . Refer to INSTALLATION - Step 1
ADJUST V-RIBBED BELT . Refer to INSTALLATION - Step 2
INSPECT V-RIBBED BELT . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL ENGINE UNDER COVER RH
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
HINT:

Refer to INSTALLATION - Step 8 .
