Inspection Procedure: Procedure

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DTC
    1. Check for DTCs.

      HINT:

      If the CAN MS bus communication error DTC U1002 is output, troubleshoot for U1002 and check for malfunctions in the CAN MS main bus circuit. Refer to DTC U1002 (CAN MS BUS): Lost Communication with Gateway Module (Main body ECU) .

      Result

      Result Proceed to
      U1002 is not output A
      U1002 is output B

    B → See step   4

    A: Go to next step

  2. CHECK CAN MS BUS WIRE (CERTIFICATION ECU)
    1. Turn the ignition switch off.
    2. Disconnect the certification ECU connector from the certification ECU.

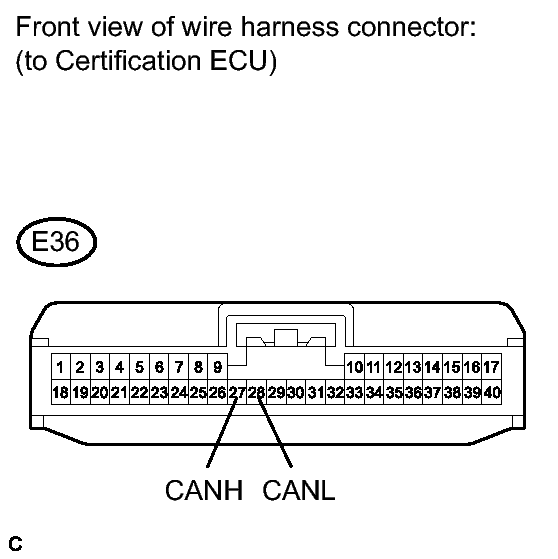

      Fig 1: Identifying E36 Certification ECU Connector
      GTY292481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E36-27 (CANH) - E36-28 (CANL) Ignition switch off 54 to 69 Ω

    NG → REPAIR OR REPLACE CAN MS BUS BRANCH WIRE OR CONNECTOR (CERTIFICATION ECU)

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 2: View Of Wire Harness Connector To Certification ECU
      GTY180820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      E36-17 (E) - Body ground Always Below 1 Ω
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      E36-18 (IG) - Body ground Ignition switch ON 10 to 14 V
      E36-1 (+B) - Body ground Always 10 to 14 V
      E36-19 (ACC) - Body ground Ignition switch ACC 10 to 14 V

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → REPLACE CERTIFICATION ECU

  4. GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART
