Air Conditioning Amplifier Communication Stop Mode: Wiring Diagram

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

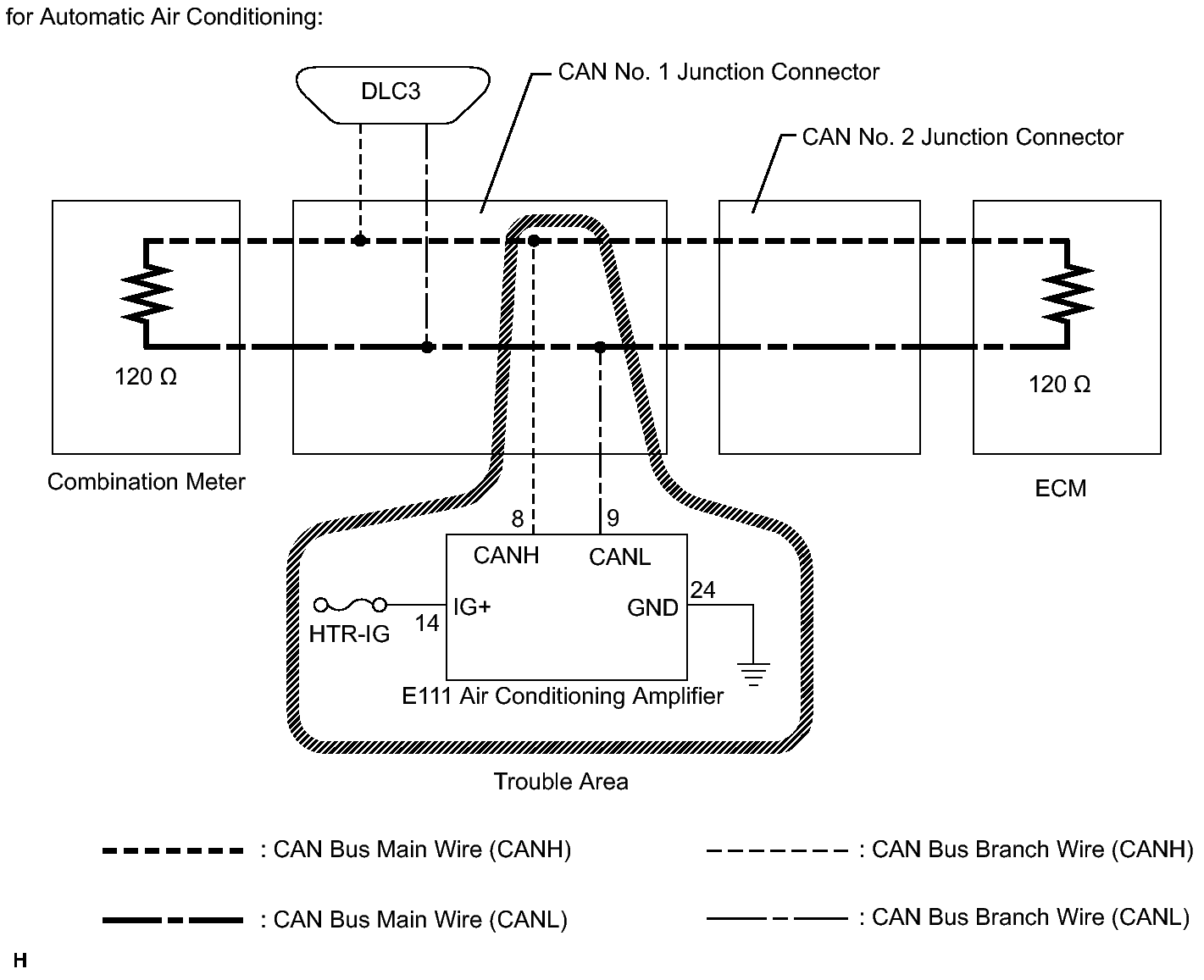

Fig 1: Air Conditioning Amplifier Wiring Diagram (1 Of 3)
GTY291007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Air Conditioning Amplifier Wiring Diagram (2 Of 3)
GTY291004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

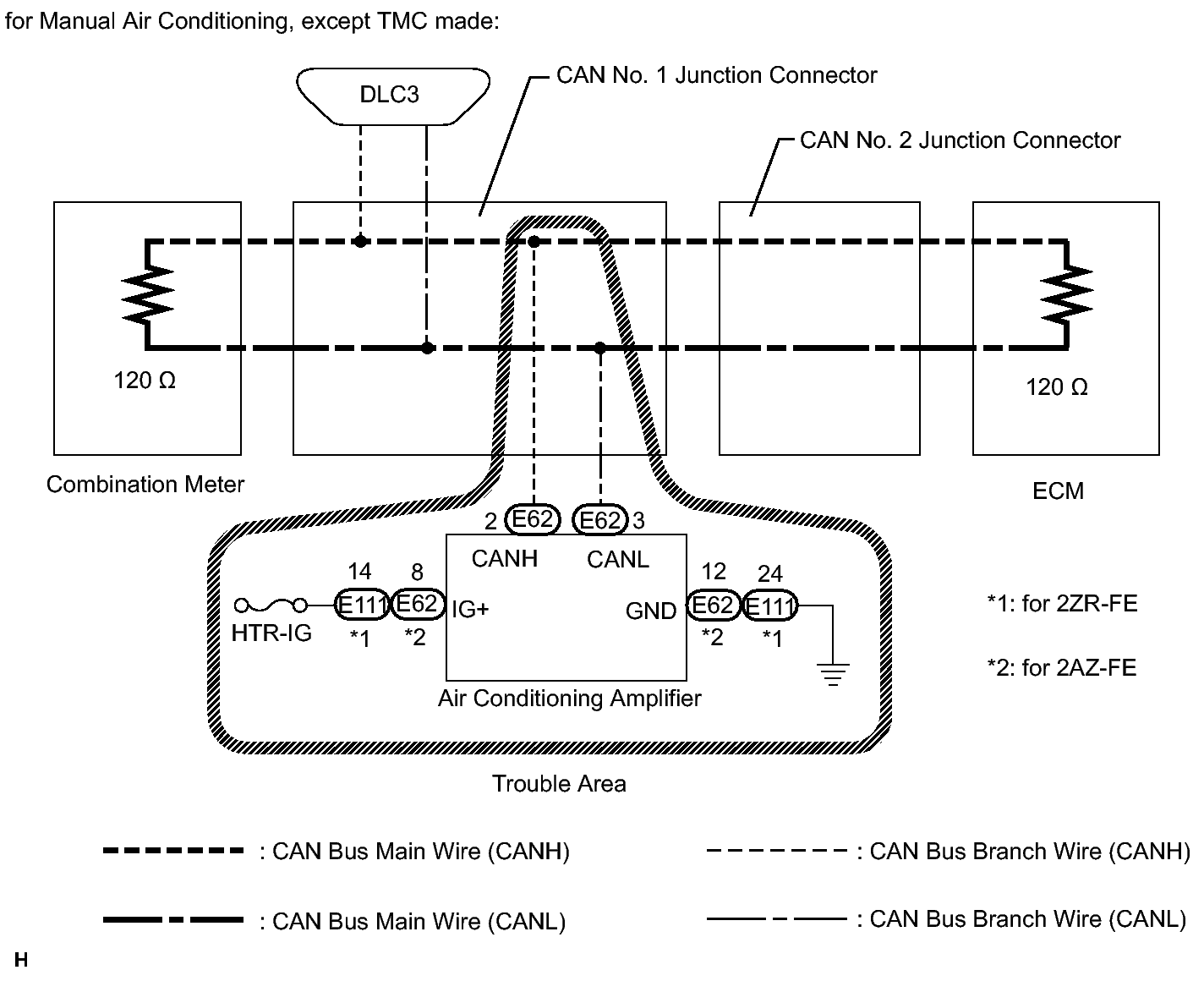

Fig 3: Air Conditioning Amplifier Wiring Diagram (3 Of 3)
GTY292160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
