Main Body ECU Communication Stop Mode: Wiring Diagram

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

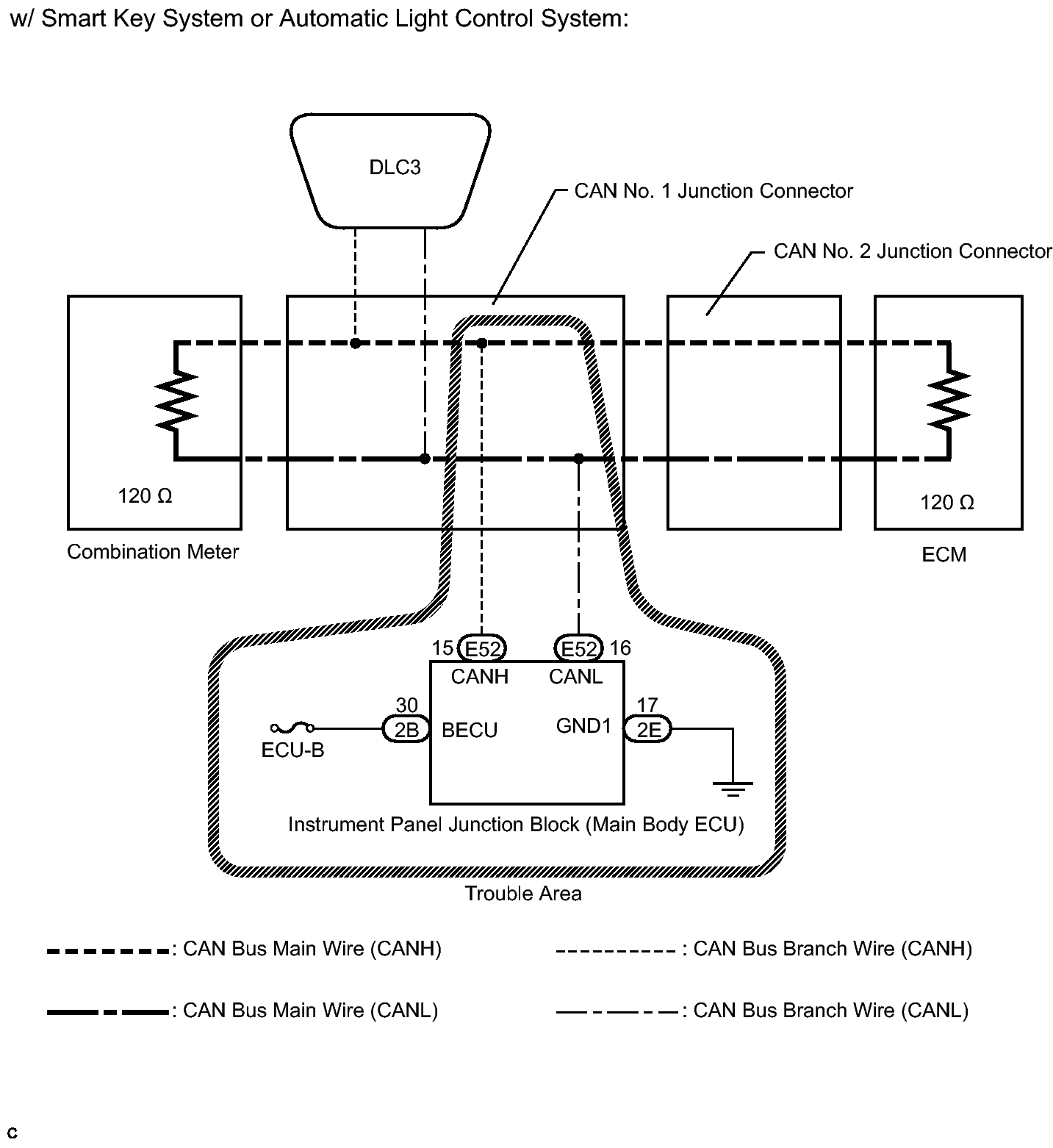

Fig 1: Main Body ECU Communication (With Smart System) Wiring Diagram
GTY190673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

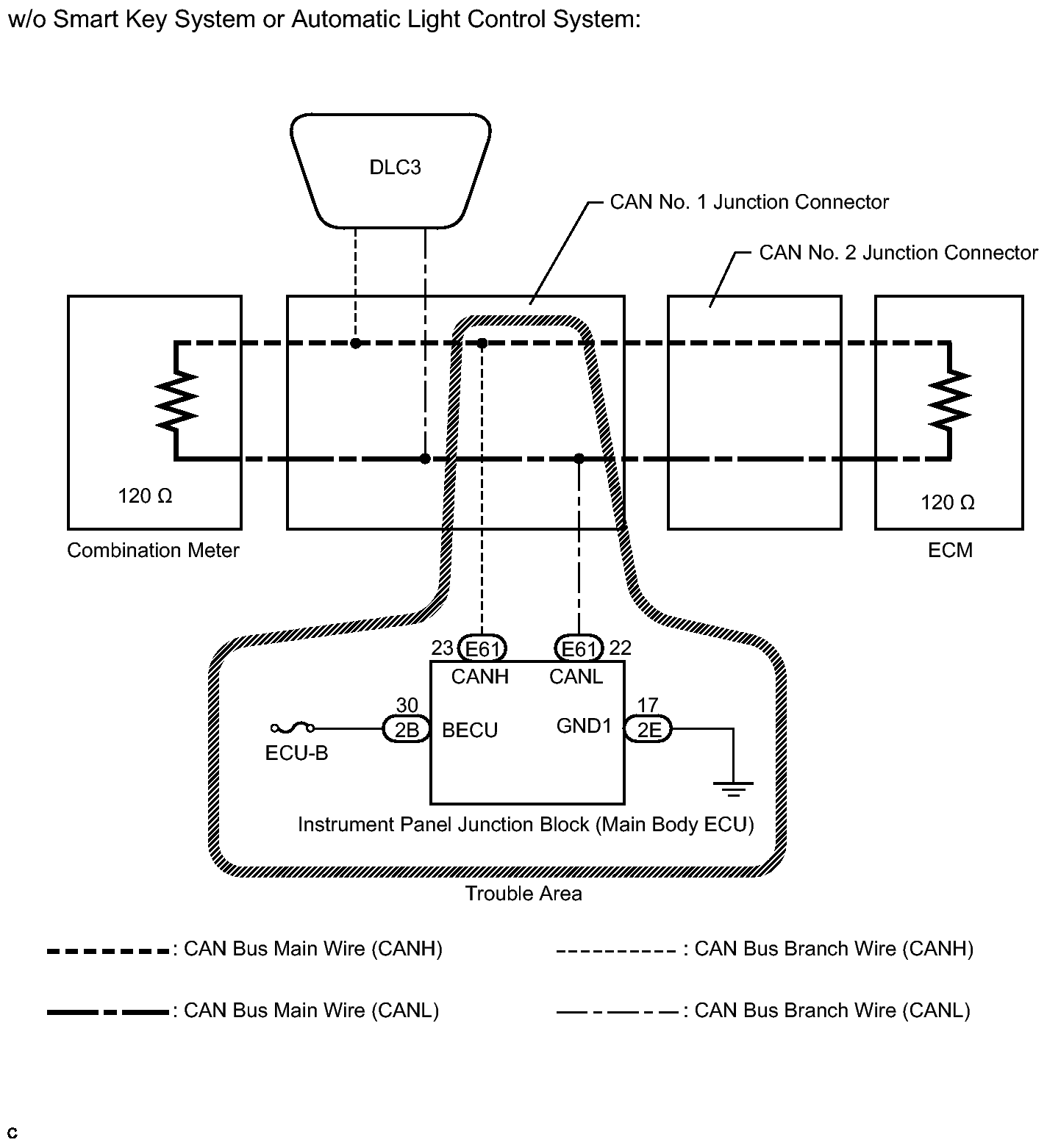

Fig 2: Main Body ECU Communication (Without Smart System) Wiring Diagram
GTY293198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
