Inspection Procedure: Procedure

1. Disconnect the ECM connector.

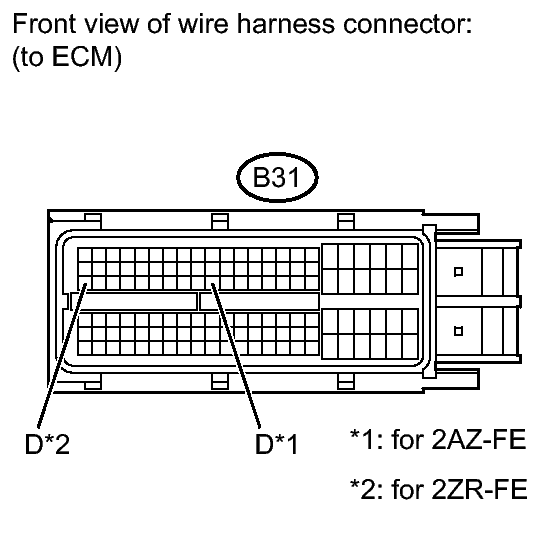

   Fig 1: ECM Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch to ON.
3. Measure the voltage according to the value(s) in the table below.

   Standard Resistance (2AZ-FE)

   Tester Connection	Condition	Specified Condition
   B31-56 (D) - Body ground	Clutch pedal depressed	Below 1 V
   	Clutch pedal released	11 to 14 V

   Standard Resistance (2GR-FE)

   Tester Connection	Condition	Specified Condition
   B31-47 (D) - Body ground	Clutch pedal depressed	Below 1 V
   	Clutch pedal released	11 to 14 V

4. Reconnect the ECM connector.

NG → See step   2

OK → See step   4

1. Turn the ignition switch off.
2. Remove the clutch switch assembly. Refer to COMPONENTS .

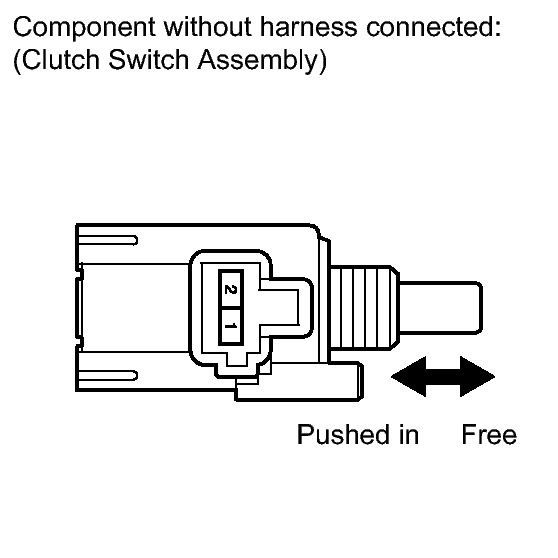

   Fig 2: Inspecting Clutch Switch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   1 - 2	Switch pin free	10 kΩ or higher
   	Switch pin pushed in	Below 1 Ω

4. Install the clutch switch assembly. Refer to INSTALLATION .

NG → See step   5

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (2AZ-FE)

   Tester Connection	Condition	Specified Condition
   B31-56 (D) - A4-2	Always	Below 1 Ω
   B31-56 (D) - Body ground	Always	10 kΩ or higher

   Standard Resistance (2ZR-FE)

   Tester Connection	Condition	Specified Condition
   B31-47 (D) - A4-2	Always	Below 1 Ω
   B31-47 (D) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - CLUTCH SWITCH ASSEMBLY)

OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - CLUTCH SWITCH ASSEMBLY)
