Cruise Control Main Switch: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

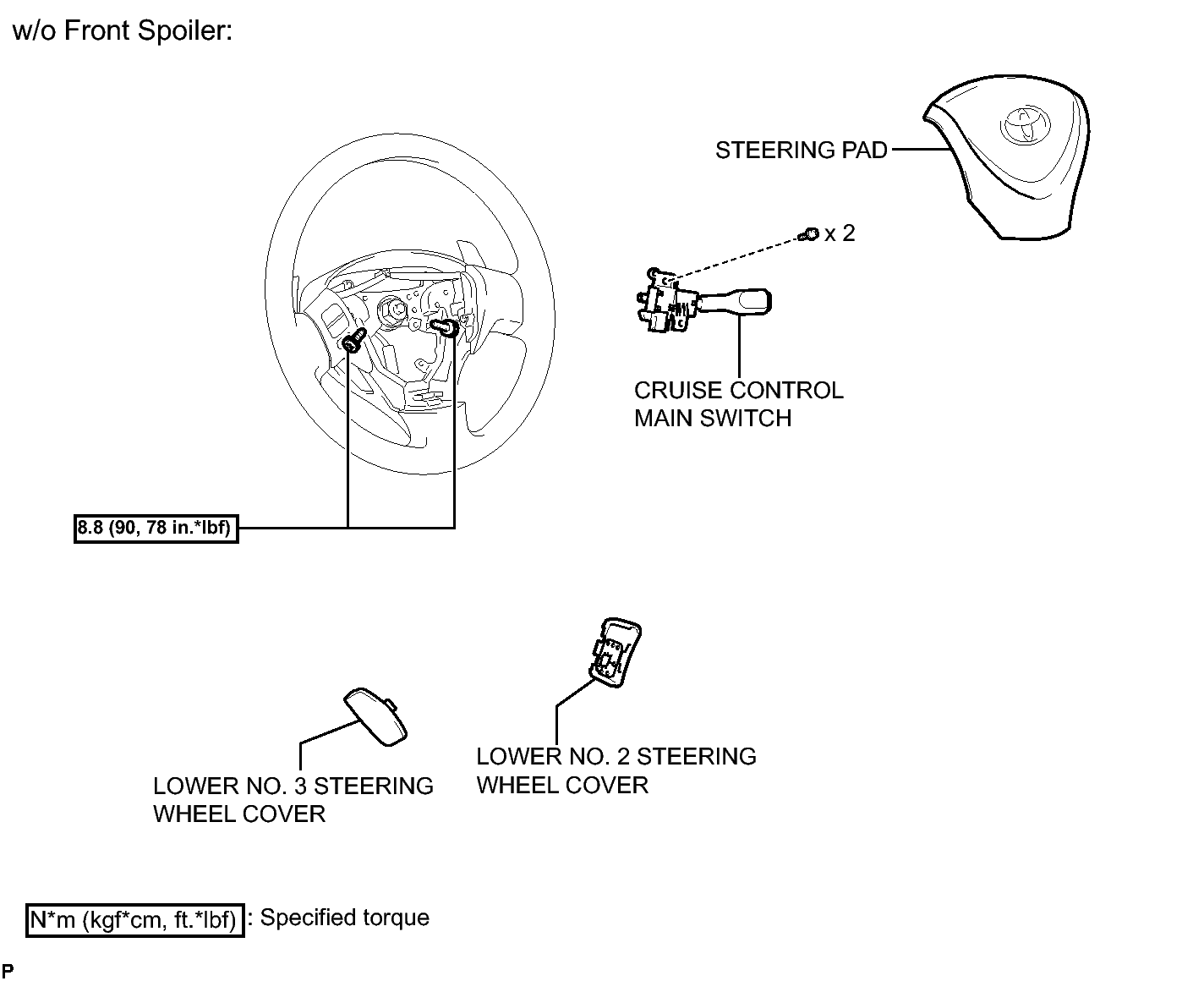

Fig 1: Identifying Cruise Control Main Switch Replacement Components With Torque Specifications (1 Of 2)
GTY291431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

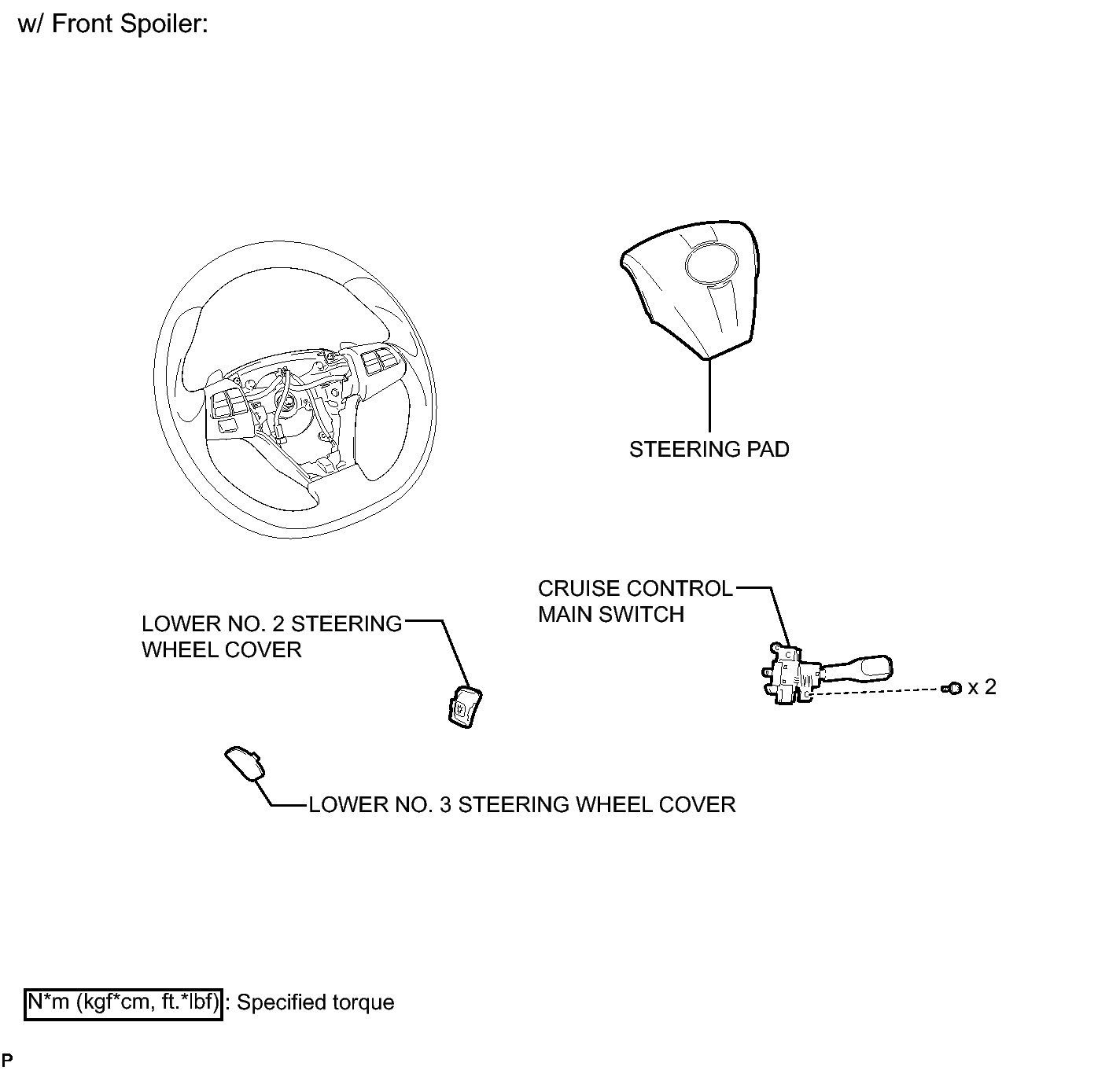

Fig 1: Identifying Cruise Control Main Switch Replacement Components (2 Of 2)
GTY291442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
