Rear Speed Sensor: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for Disc Type)  . Refer to REMOVAL - Step 3
  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH (for Disc Type)  . Refer to REMOVAL - Step 4
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Disc Type)  . Refer to REMOVAL - Step 4
  5. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Disc Type)  . Refer to REMOVAL - Step 5
  6. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for Disc Type)  . Refer to REMOVAL - Step 10
  7. REMOVE REAR WHEEL
  8. LOOSEN PARKING BRAKE CABLE (for Disc Type)  . Refer to REMOVAL - Step 10
  9. DISCONNECT REAR SPEED SENSOR WIRE (for Drum Type)
    1. Using a screwdriver, disconnect the connector from the rear speed sensor.
      NOTE:

      Be careful not to damage the rear speed sensor.

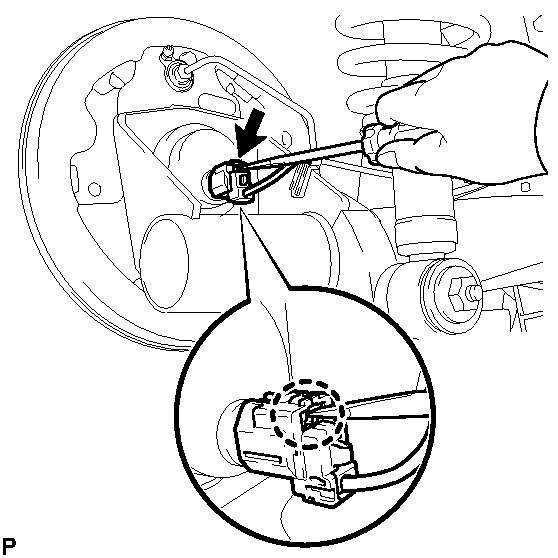

      Fig 1: Disconnecting Connector From Rear Speed Sensor (For Drum Type)
      GTY202688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. DISCONNECT REAR SPEED SENSOR WIRE (for Disc Type)
    1. Using a screwdriver, disconnect the connector from the rear speed sensor.
      NOTE:

      Be careful not to damage the rear speed sensor.

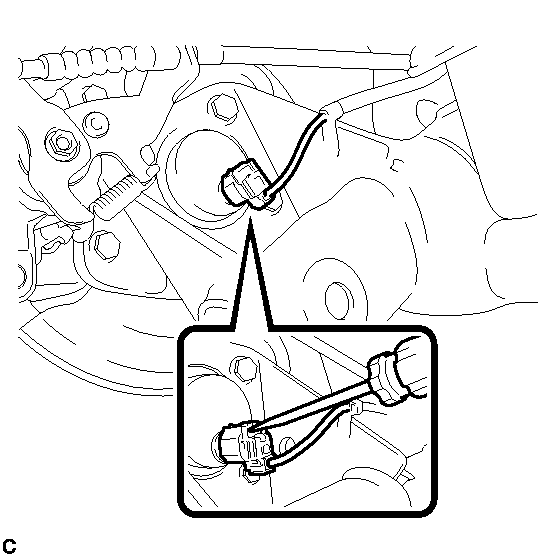

      Fig 2: Disconnecting Connector From Rear Speed Sensor (For Disc Type)
      GTY204732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE PARKING BRAKE LEVER PROTECTOR  . Refer to REMOVAL - Step 18
  12. DISCONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY (for Disc Type)  . Refer to REMOVAL - Step 12
  13. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY (for Disc Type)  . Refer to REPLACEMENT - Step 11
  14. REMOVE REAR DISC (for Disc Type)  . Refer to REMOVAL - Step 21
  15. REMOVE REAR BRAKE DRUM (for Drum Type)  . Refer to REMOVAL - Step 2
  16. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY WITH REAR SPEED SENSOR (for Drum Type)
    1. Remove the rear axle hub and bearing assembly with rear speed sensor. Refer to REMOVAL - Step 16 .

      HINT:

      • The rear speed sensor is a component of the rear axle hub and bearing assembly with rear speed sensor. If the sensor needs to be replaced, replace the rear axle hub and bearing assembly with rear speed sensor.
      • If the sensor rotor needs to be replaced, replace it together with the rear axle hub and bearing assembly with rear speed sensor.
  17. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY WITH REAR SPEED SENSOR (for Disc Type)
    1. Remove the rear axle hub and bearing assembly with rear speed sensor. Refer to REMOVAL - Step 17 .

      HINT:

      • The rear speed sensor is a component of the rear axle hub and bearing assembly with rear speed sensor. If the sensor needs to be replaced, replace the rear axle hub and bearing assembly with rear speed sensor.
      • If the sensor rotor needs to be replaced, replace it together with the rear axle hub and bearing assembly with rear speed sensor.
