Inspection Procedure: Procedure

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

CLEAR DTC
1. Clear the DTC. Refer to DTC CHECK / CLEAR .
NEXT: Go to next step
CHECK FOR DTC
1. Recheck for the DTC. Refer to DTC CHECK / CLEAR .
  OK

  B2287 is not output.
NG → See step 3

OK → See step 6

CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - MAIN BODY ECU)

Disconnect the E36 and 2C connectors.

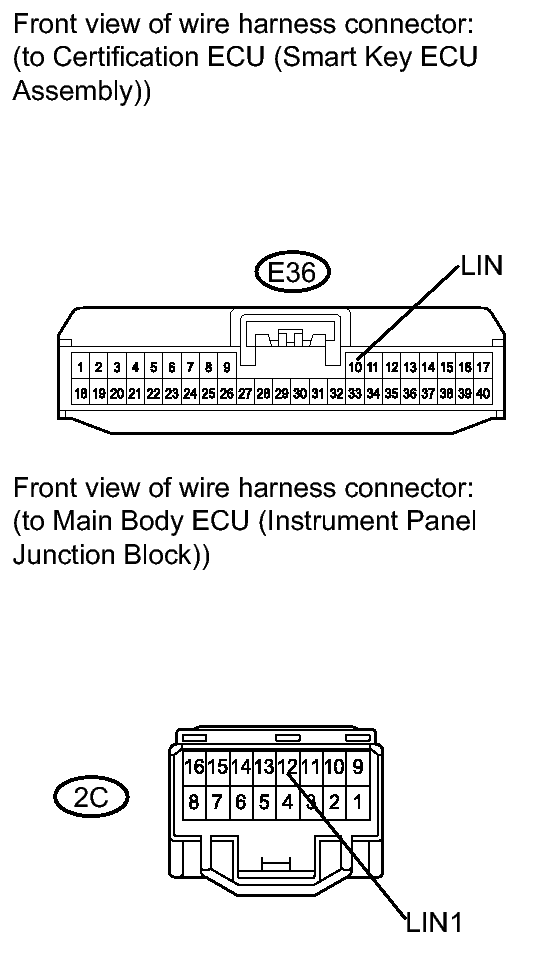

Fig 1: Identifying E36 And 2C Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance and voltage according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
E36-10 (LIN) - 2C-12 (LIN1)	Always	Below 1 Ω
E36-10 (LIN) - Body ground	Always	10 kΩ or higher

Standard Voltage

Tester Connection	Condition	Specified Condition
E36-10 (LIN) - Body ground	Always	Below 1 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)
1. Replace the main body ECU (instrument panel junction block).
NEXT: Go to next step
CHECK FOR DTC
1. Clear the DTC. Refer to DTC CHECK / CLEAR .
2. Recheck for the DTC.
  OK

  B2287 is not output.
NG → See step 7

OK → END (MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK) IS DEFECTIVE)
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to REMOVAL
