Certification Ecu: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  . Refer to REMOVAL - Step 14
  2. REMOVE SMART KEY ECU ASSEMBLY
    1. Disconnect the connector.

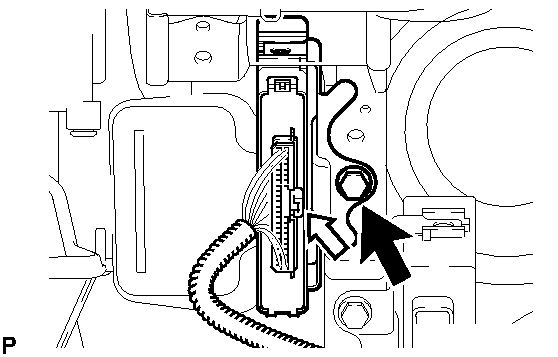

      Fig 1: Locating Smart Key ECU Assembly Bolt
      GTY208581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and smart key ECU assembly.
