ELECTRICAL KEY OSCILLATOR (for Front Door): Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

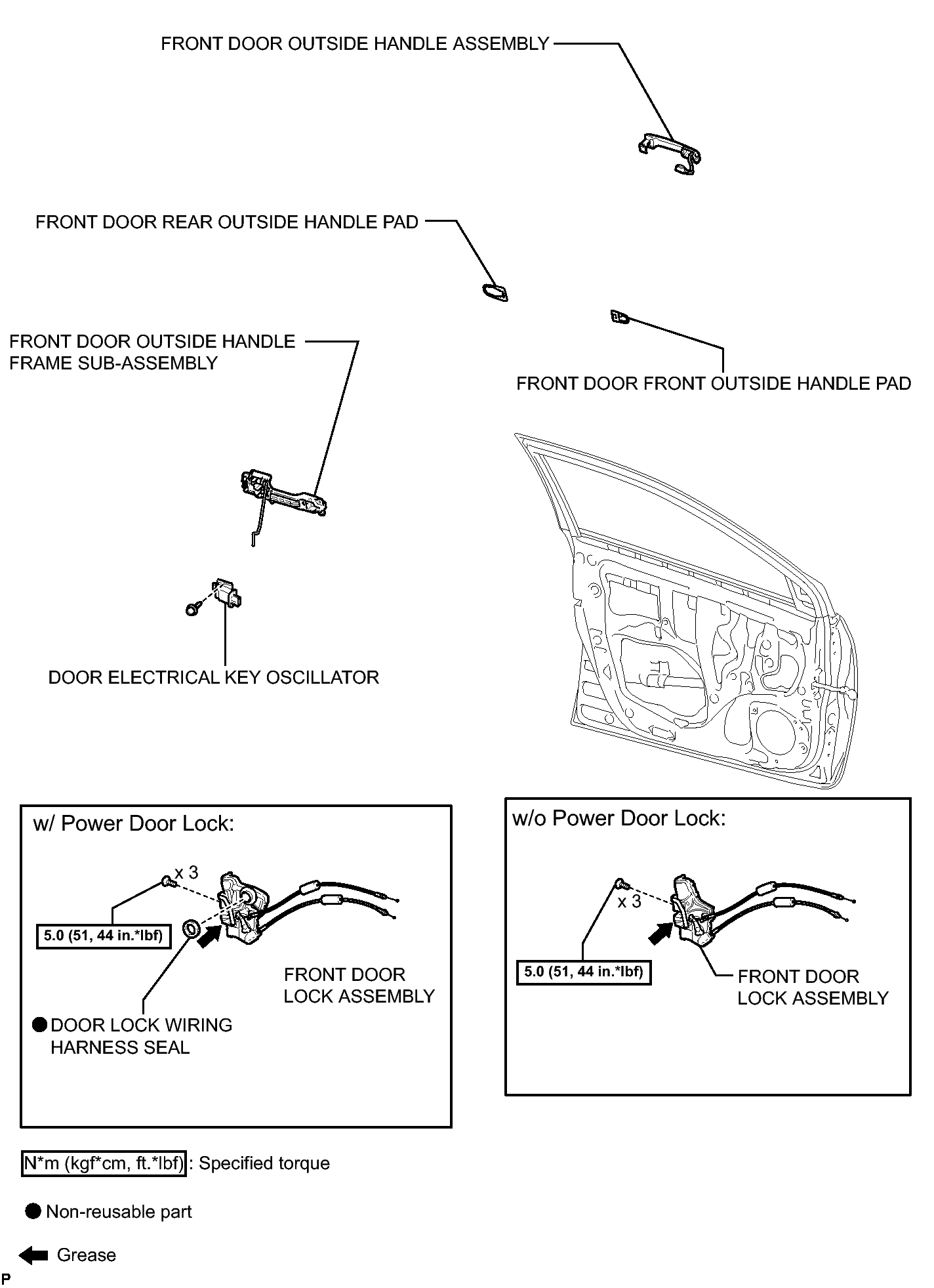

Fig 1: Identifying Electrical Key Oscillator (For Front Door) Replacement Components Locations (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

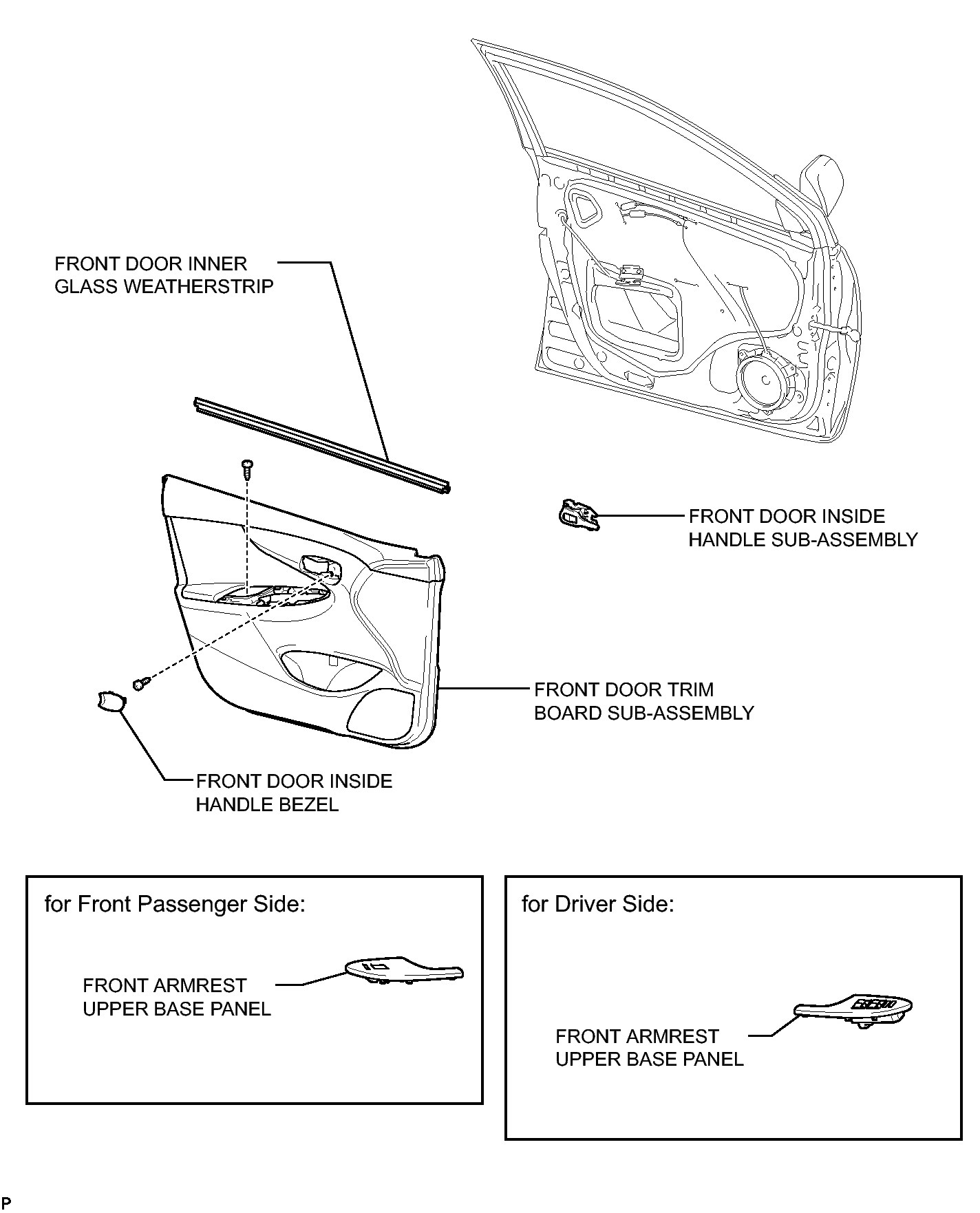

Fig 2: Identifying Electrical Key Oscillator (For Front Door) Replacement Components Locations With Torque Specifications (2 Of 3)

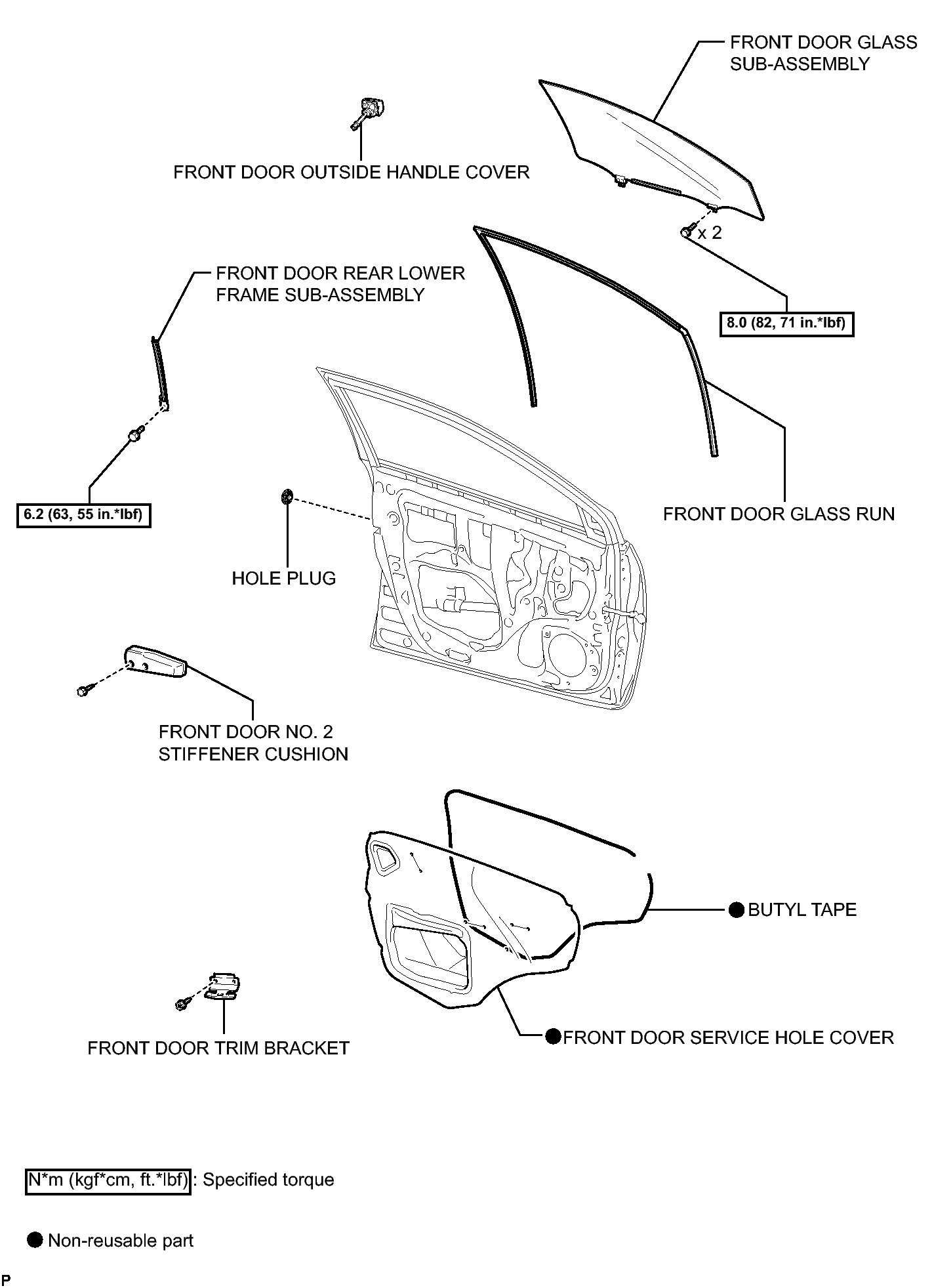

Fig 3: Identifying Electrical Key Oscillator (For Front Door) Replacement Components Locations With Torque Specifications (3 Of 3)
