Glass Breakage Sensor Ecu: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL GLASS BREAKAGE SENSOR ECU
    1. Install the glass breakage sensor ECU with the bolt.

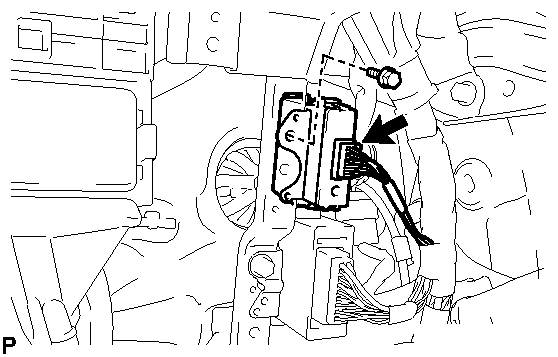

      Fig 1: Locating Glass Breakage Sensor ECU And Bolt
      GTY199858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    2. Connect the connector.
  2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  . Refer to INSTALLATION - Step 7
