Theft Warning Ecu: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

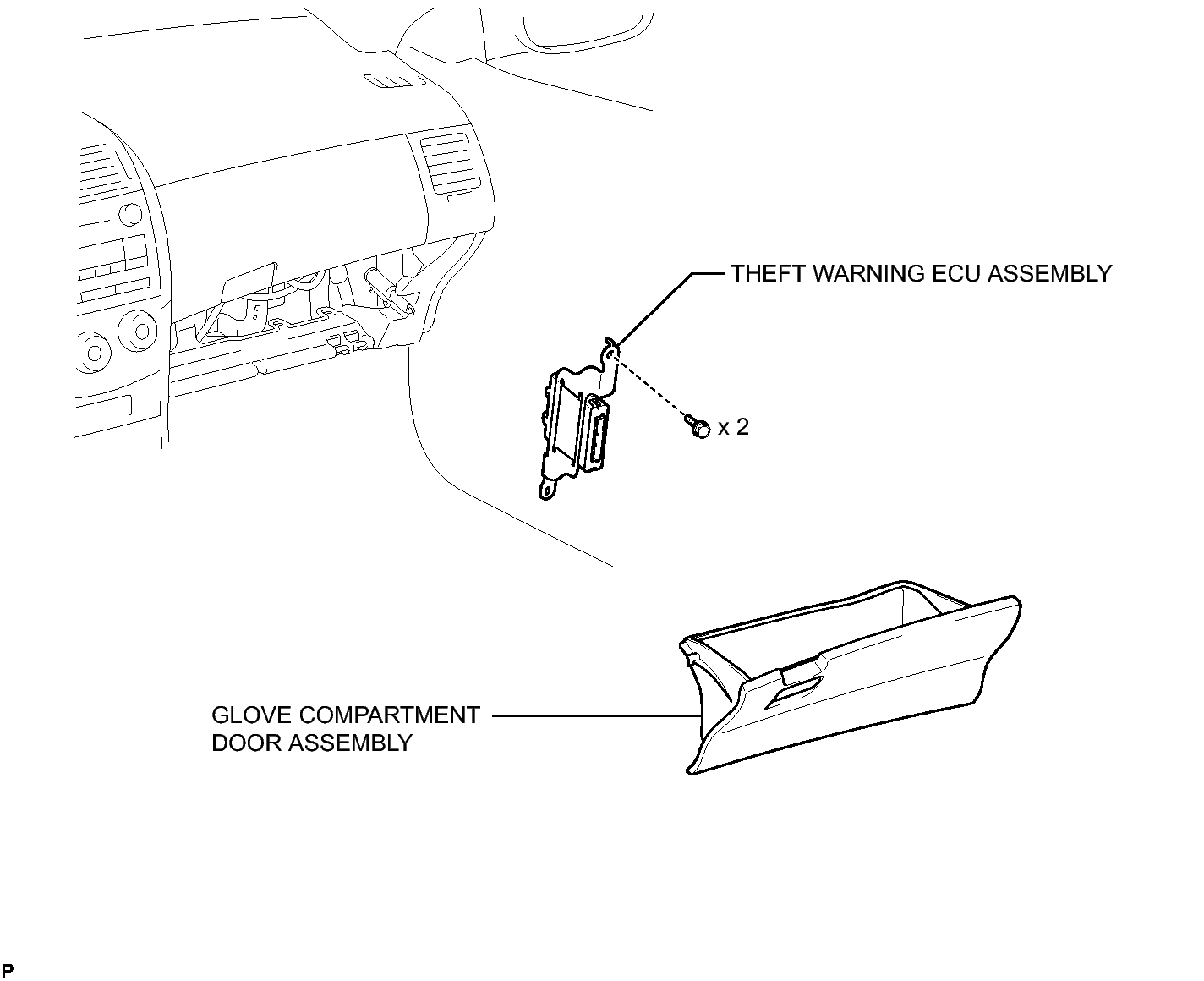

Fig 1: Identifying Theft Warning ECU Replacement Components Locations
GTY180950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
