Back-Up Light Switch: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

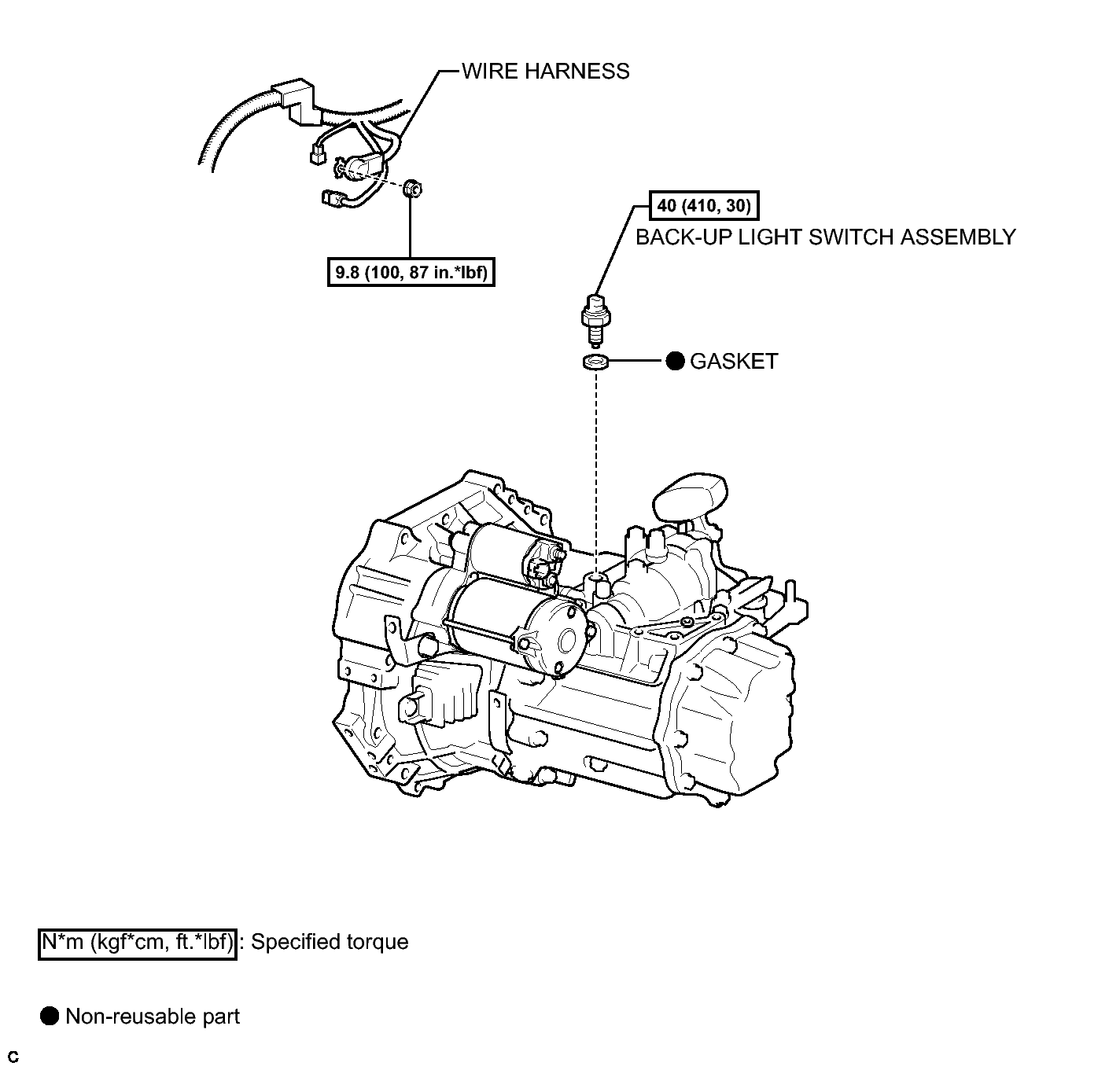

Fig 1: Back-Up Light Switch Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Back-Up Light Switch Replacement Components With Torque Specification (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
