Speed Sensor: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL SPEED SENSOR NC
    1. Coat a new O-ring with ATF WS and install it to the speed sensor.
    2. Install the speed sensor with the bolt.

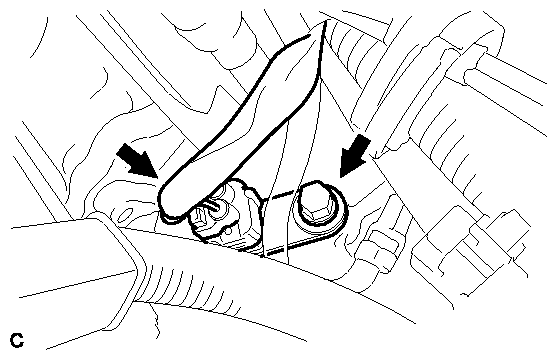

      Fig 1: Remove/Install Speed Sensor NC
      GTY168191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.8 N*m (90 kgf*cm, 78 in.*lbf)

    3. Connect the speed sensor connector.
  2. INSTALL SPEED SENSOR NT
    1. Coat a new O-ring with ATF WS and install it to the speed sensor.
    2. Install the speed sensor with the bolt.

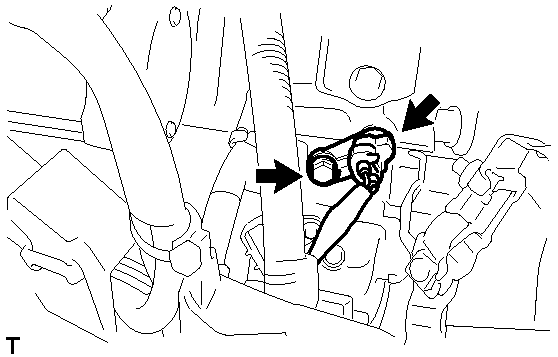

      Fig 2: Remove/Install Speed Sensor NT
      GTY204995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

    3. Connect the speed sensor connector.
  3. INSTALL TRANSMISSION OIL FILLER TUBE SUB-ASSEMBLY
    1. Apply ATF to a new O-ring, and install it to the transmission oil filler tube sub-assembly.
    2. Install the transmission oil filler tube sub-assembly to the automatic transaxle with the bolt.

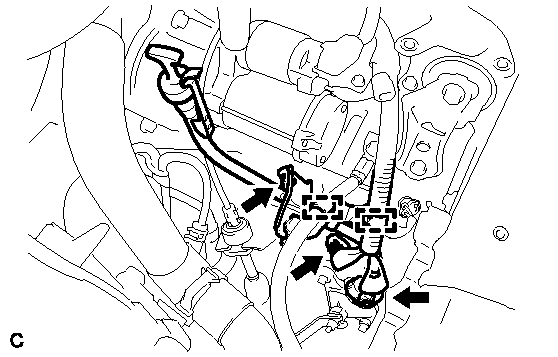

      Fig 3: Remove/Install Transmission Oil Filler Tube Sub-Assembly
      GTY204994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    3. Connect the transmission wire connector, park/neutral position switch connector and 2 wire harness clamps.
    4. Install the transmission oil level gauge sub-assembly to the transmission oil filler tube sub-assembly.
  4. INSTALL BATTERY CARRIER  . Refer to INSTALLATION - Step 62
  5. INSTALL BATTERY  . Refer to INSTALLATION - Step 63
  6. INSTALL AIR CLEANER CASE  . Refer to INSTALLATION - Step 64
  7. INSTALL AIR CLEANER CAP SUB-ASSEMBLY  . Refer to INSTALLATION - Step 2
  8. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 93
  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL  . Refer to INSTALLATION - Step 77
