Automatic Transaxle Unit: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

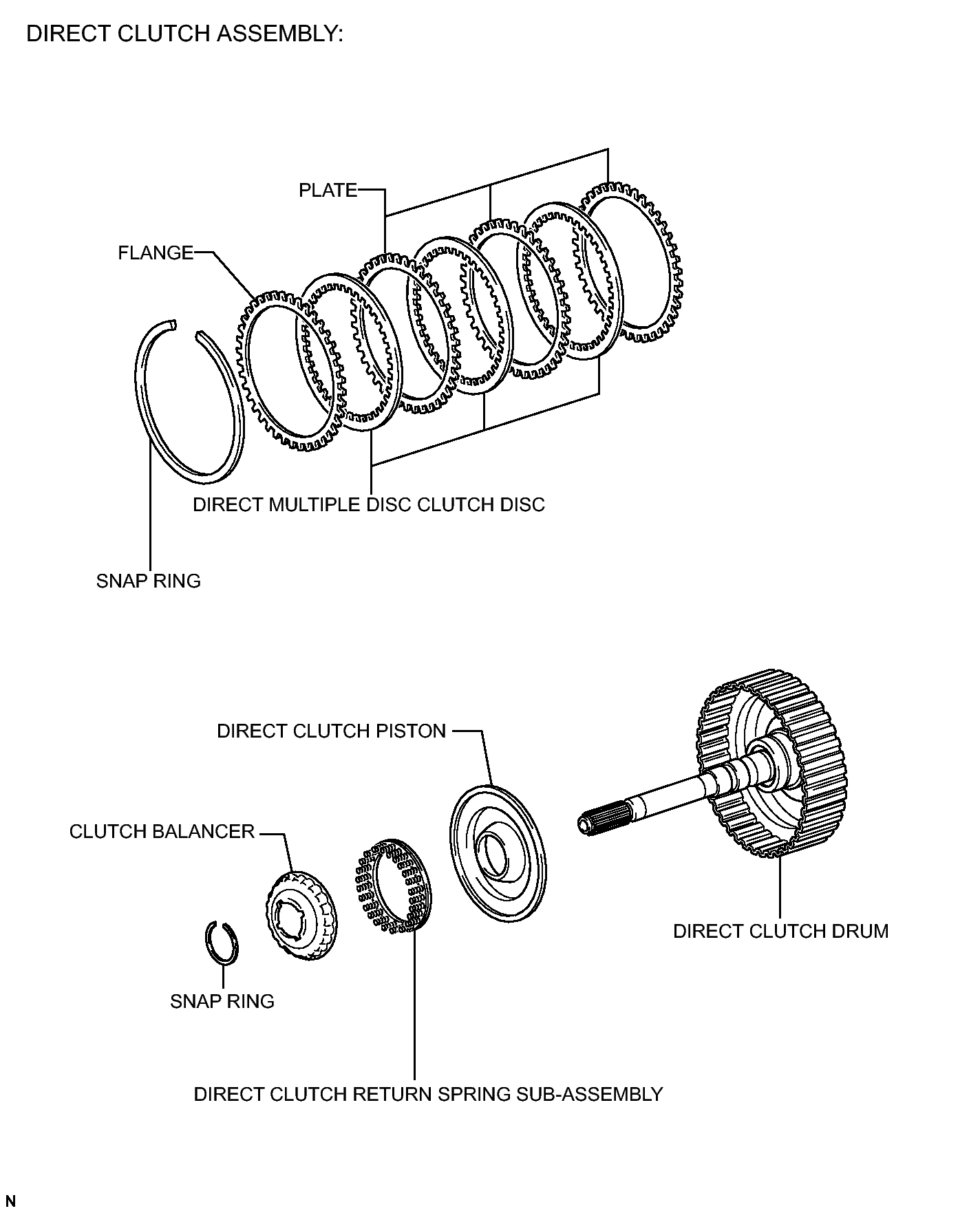

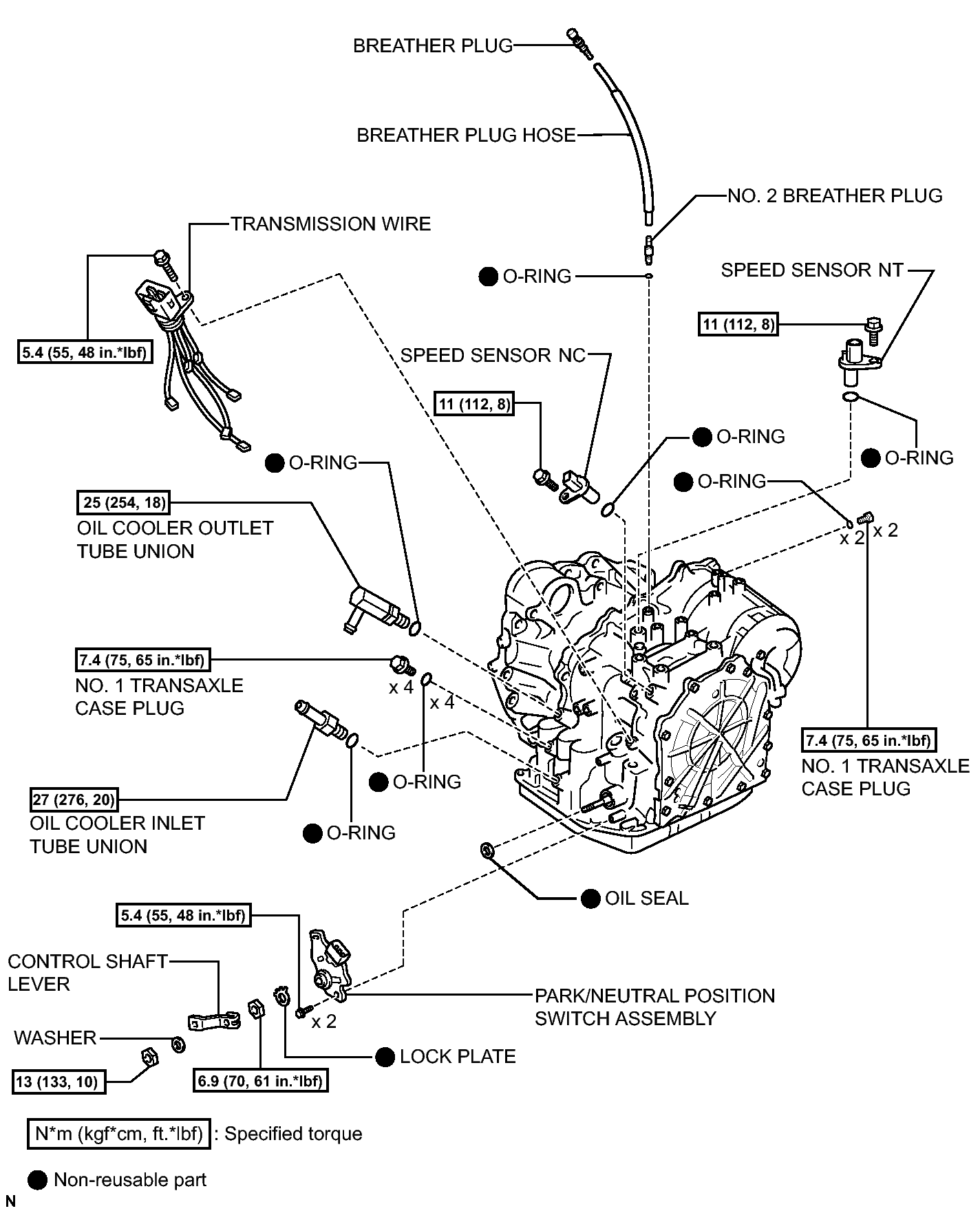

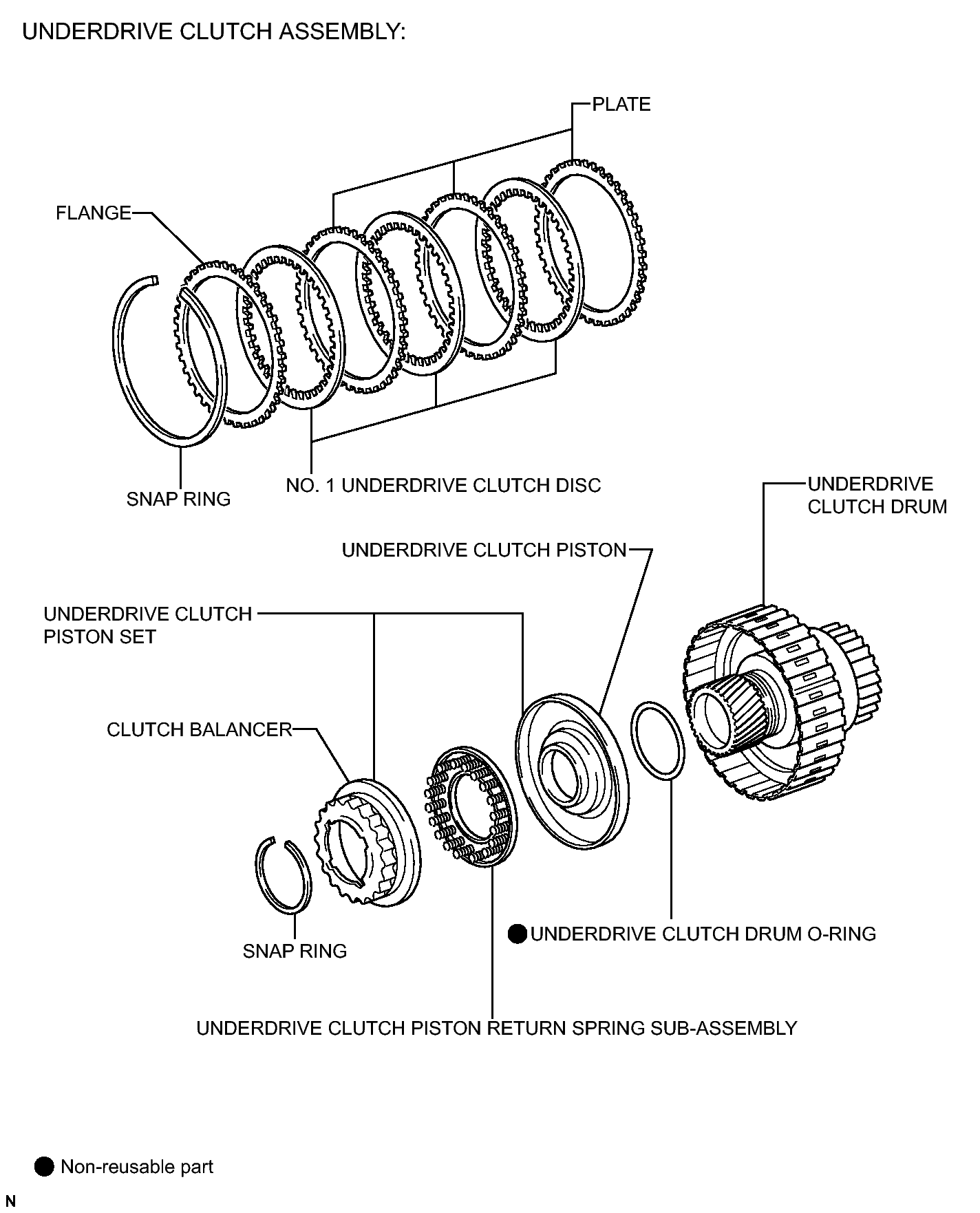

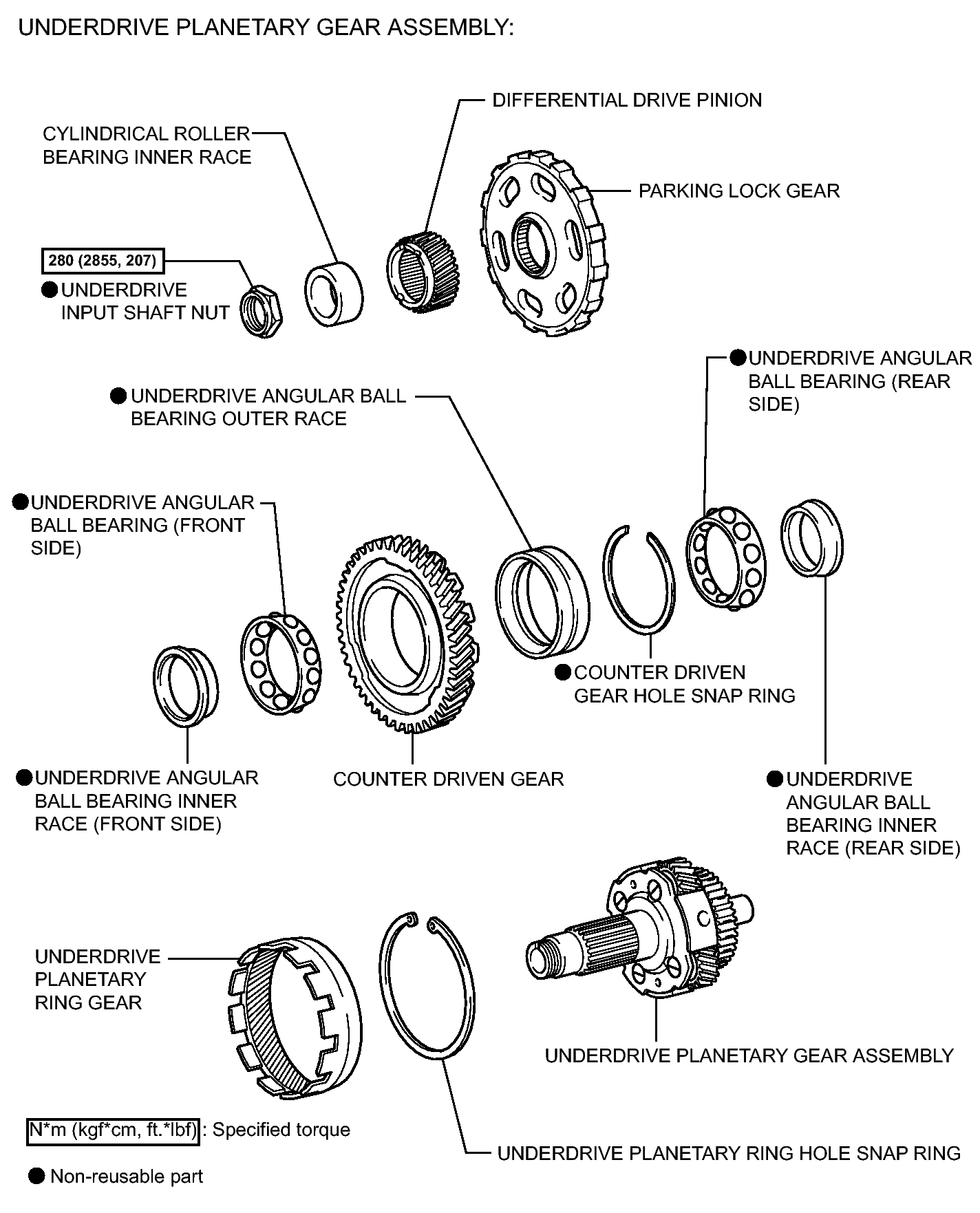

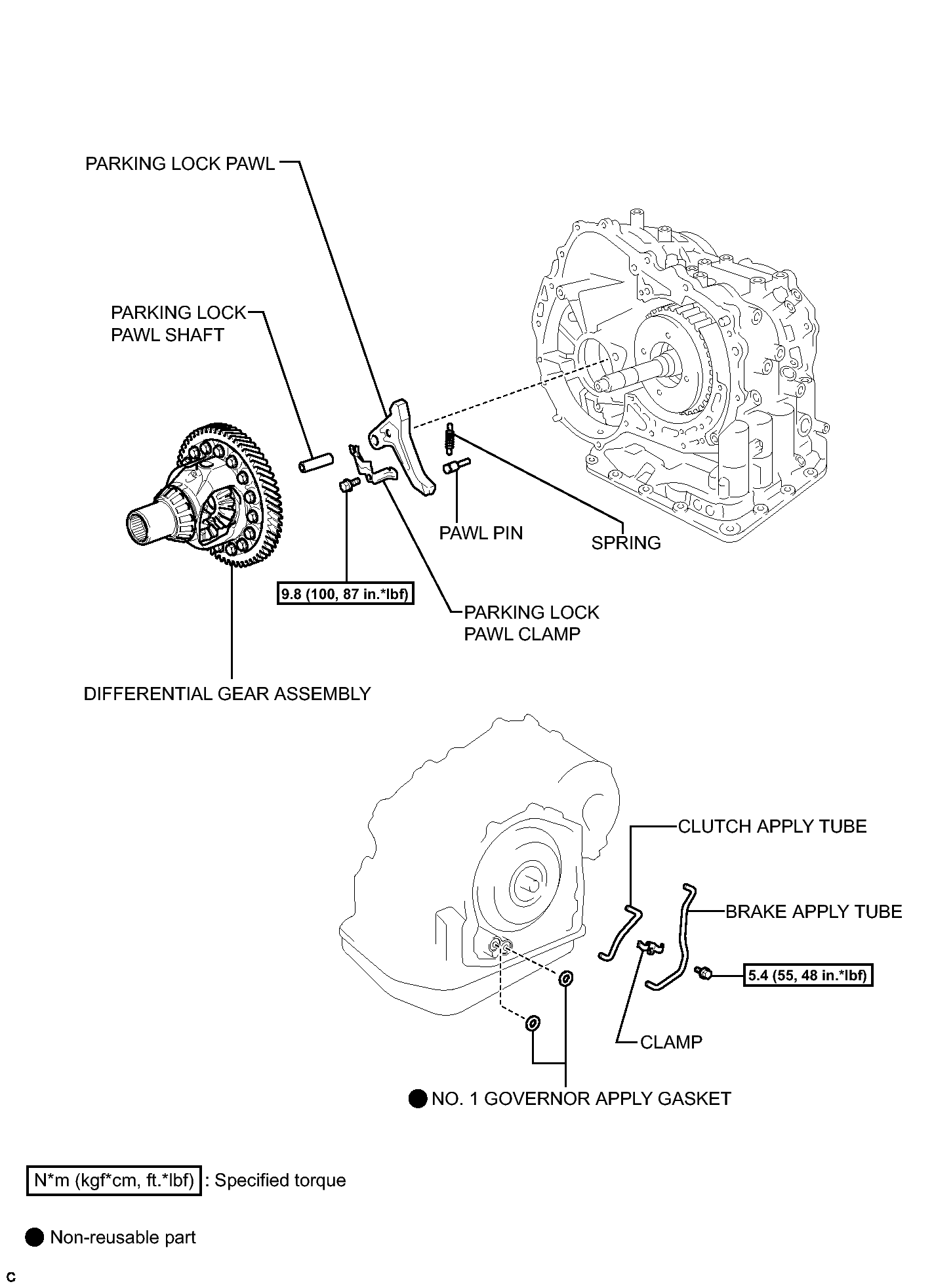

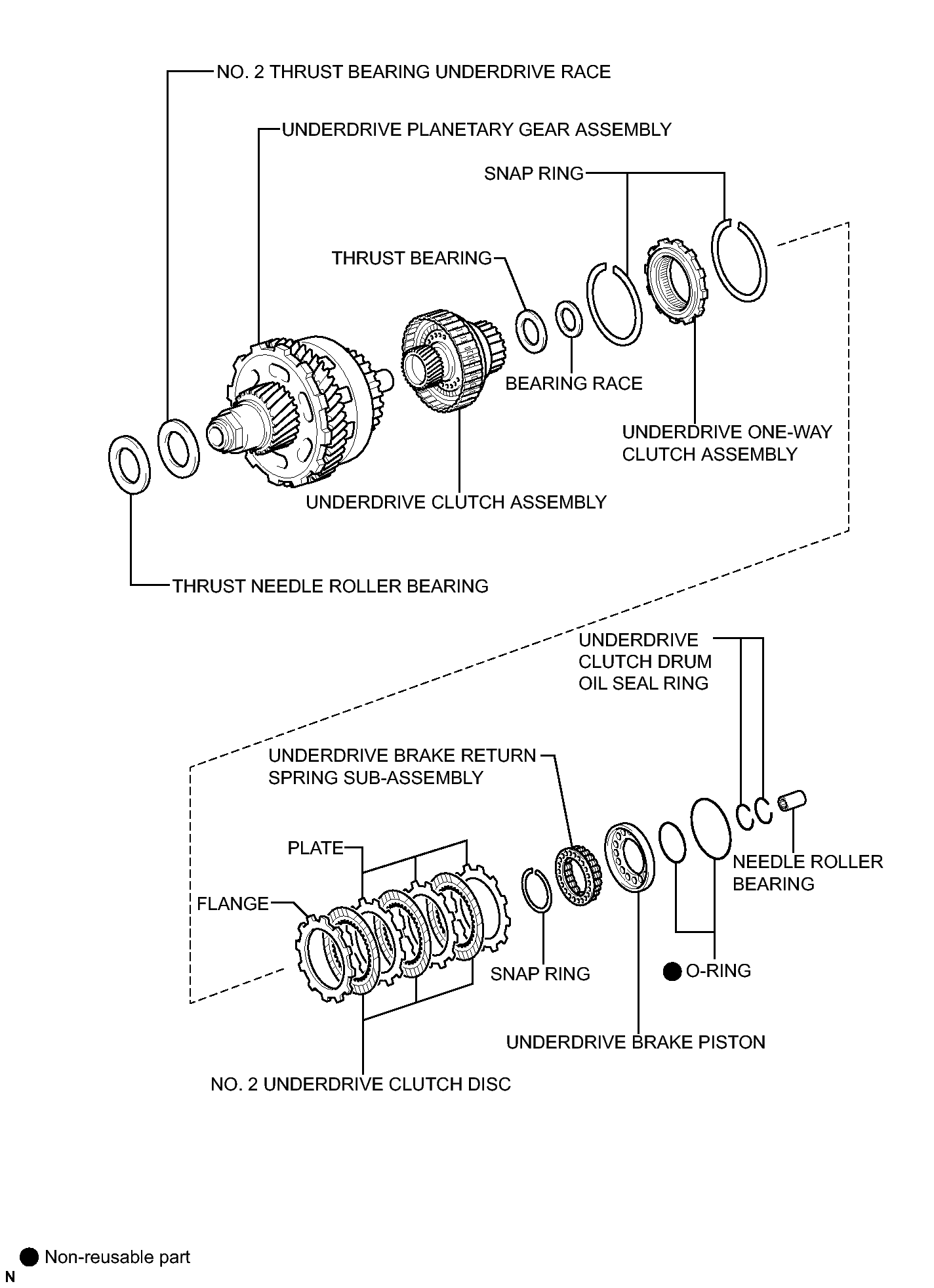

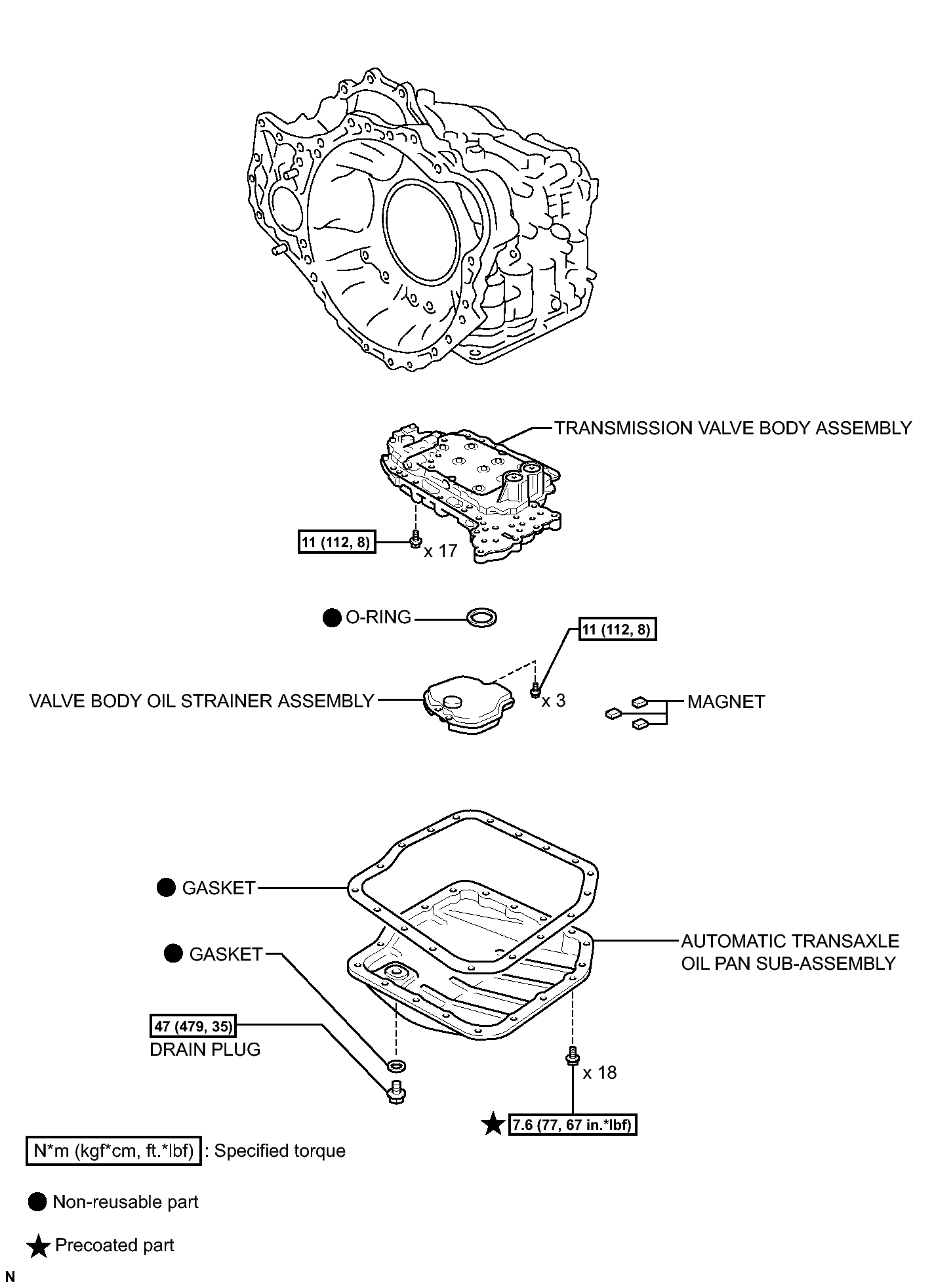

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

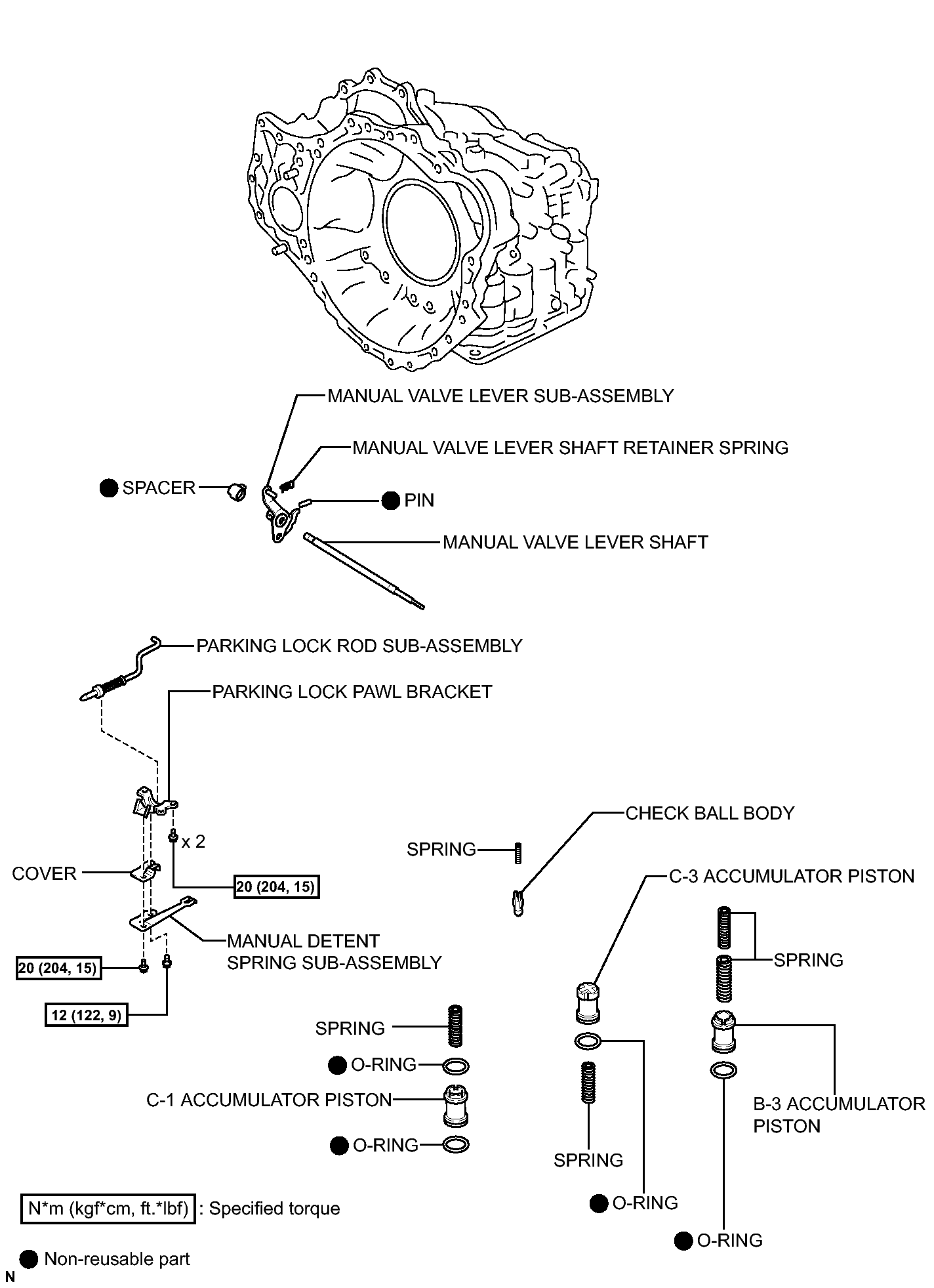

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

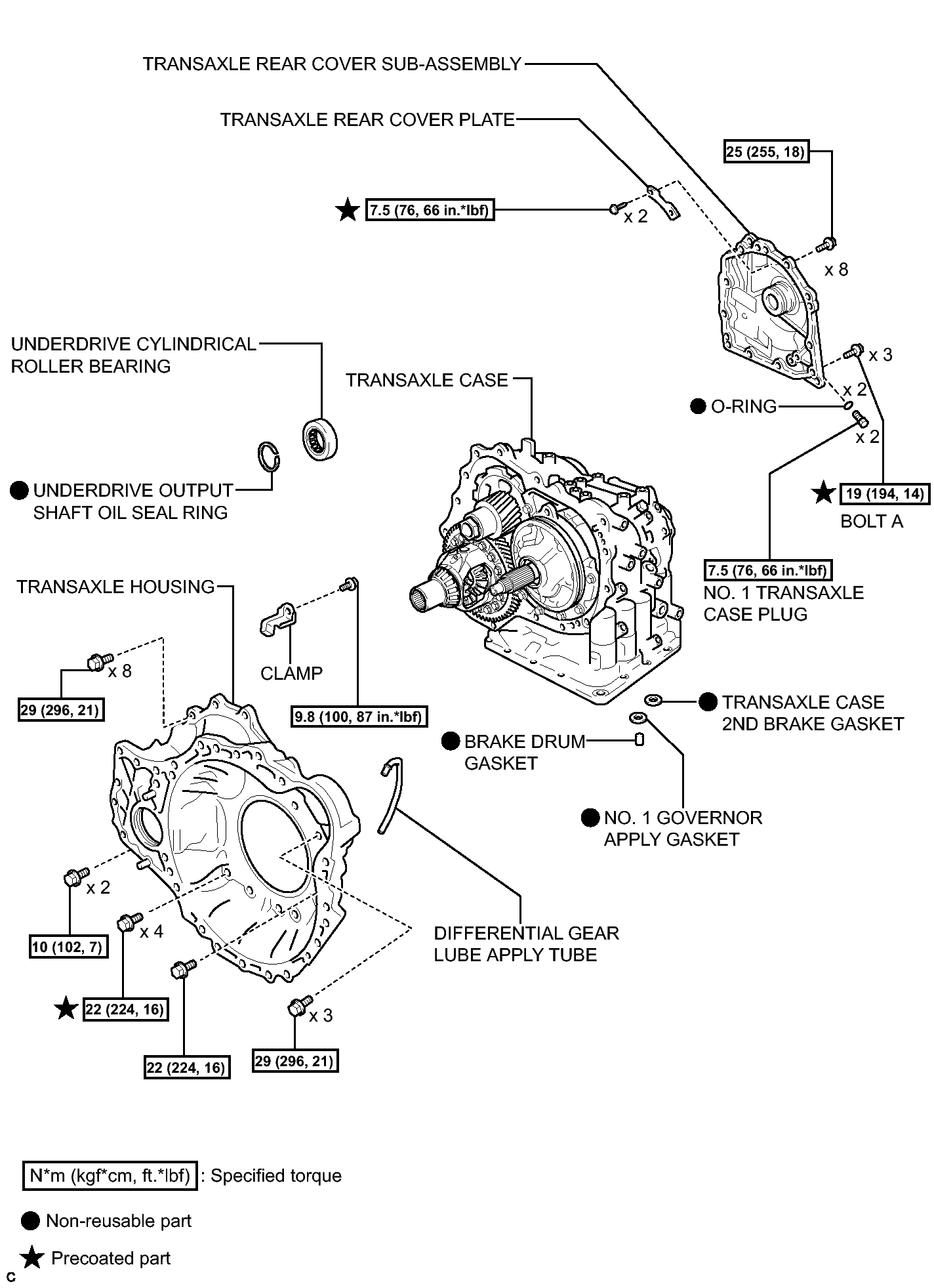

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

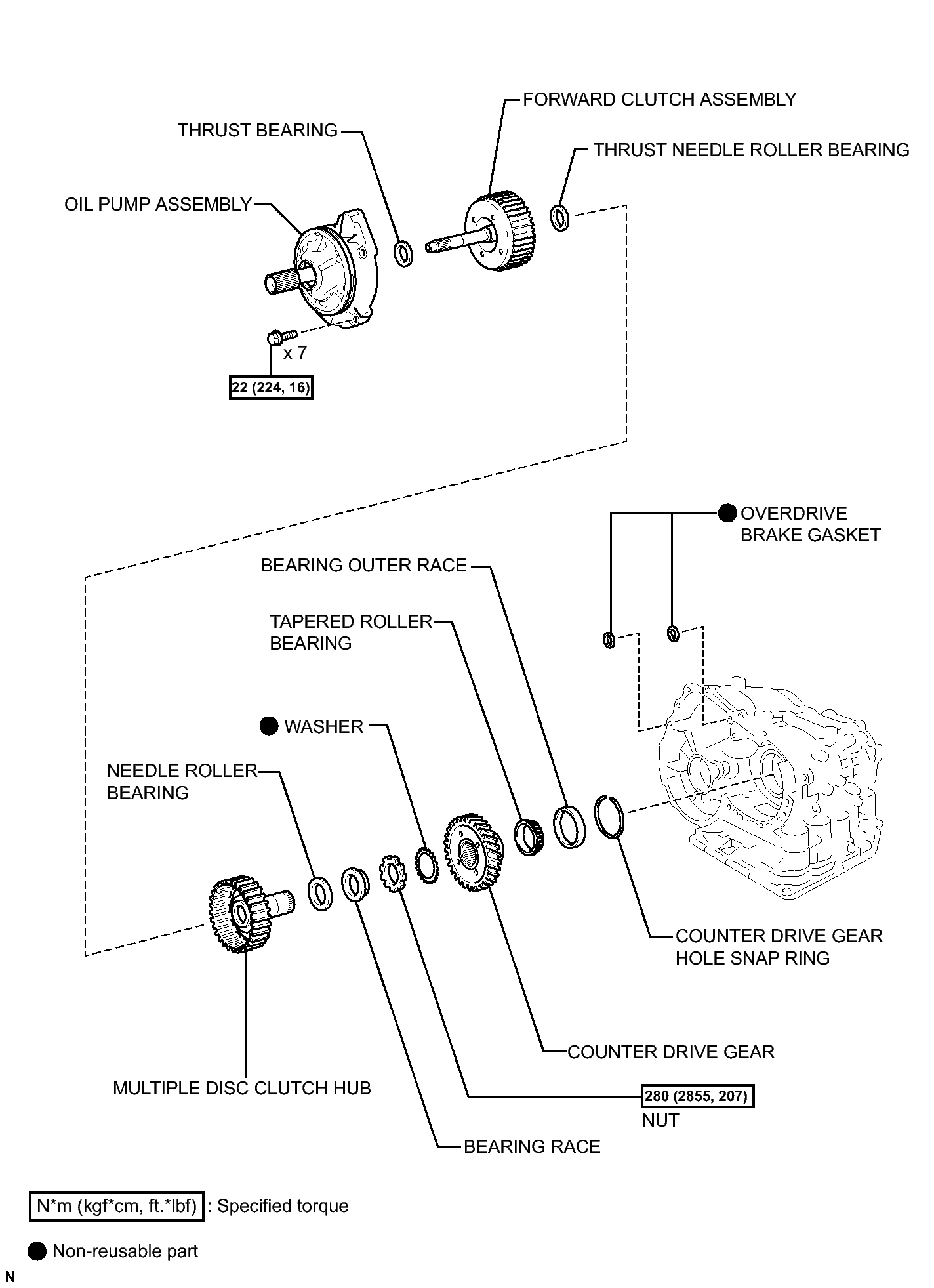

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

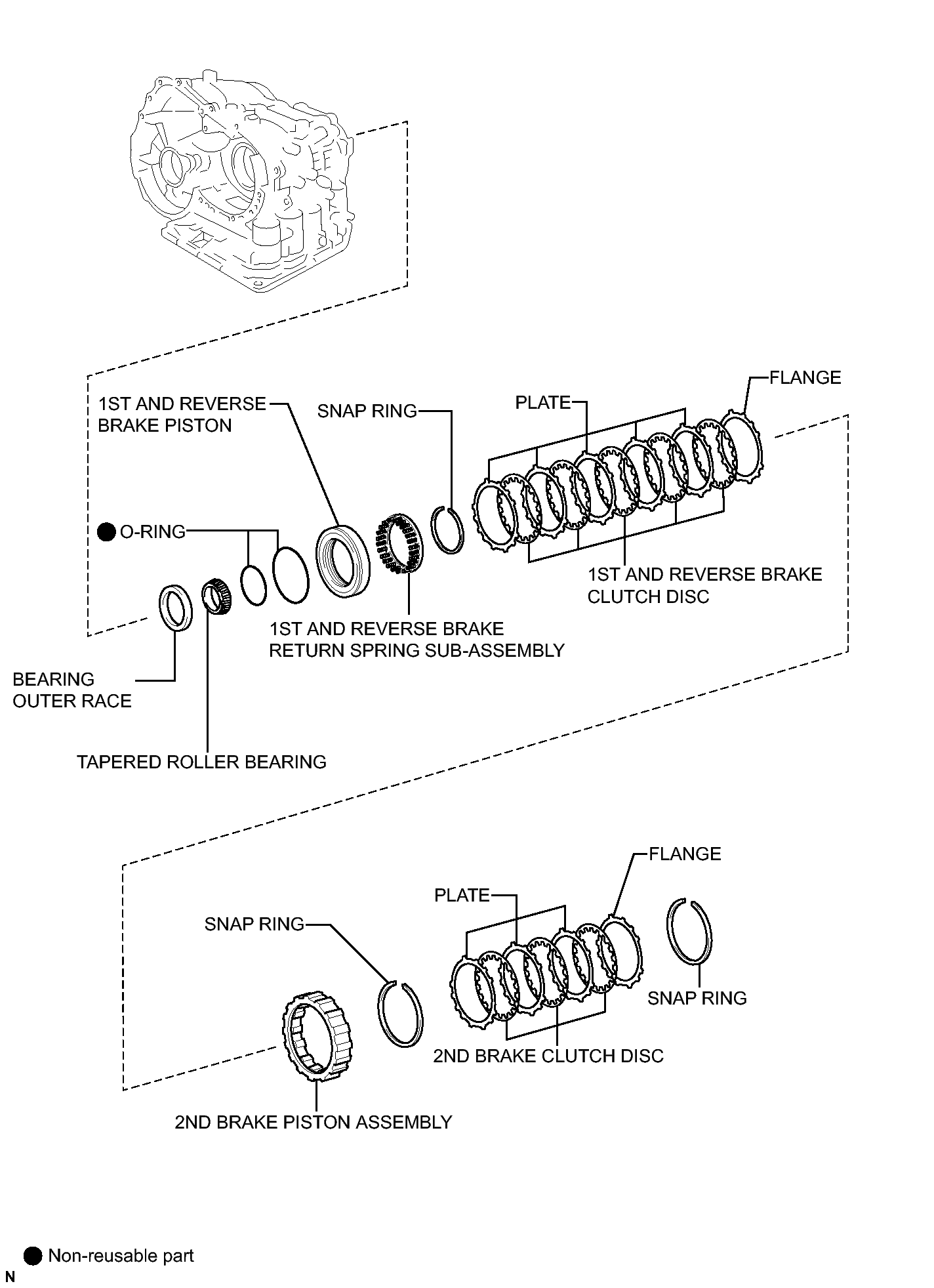

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

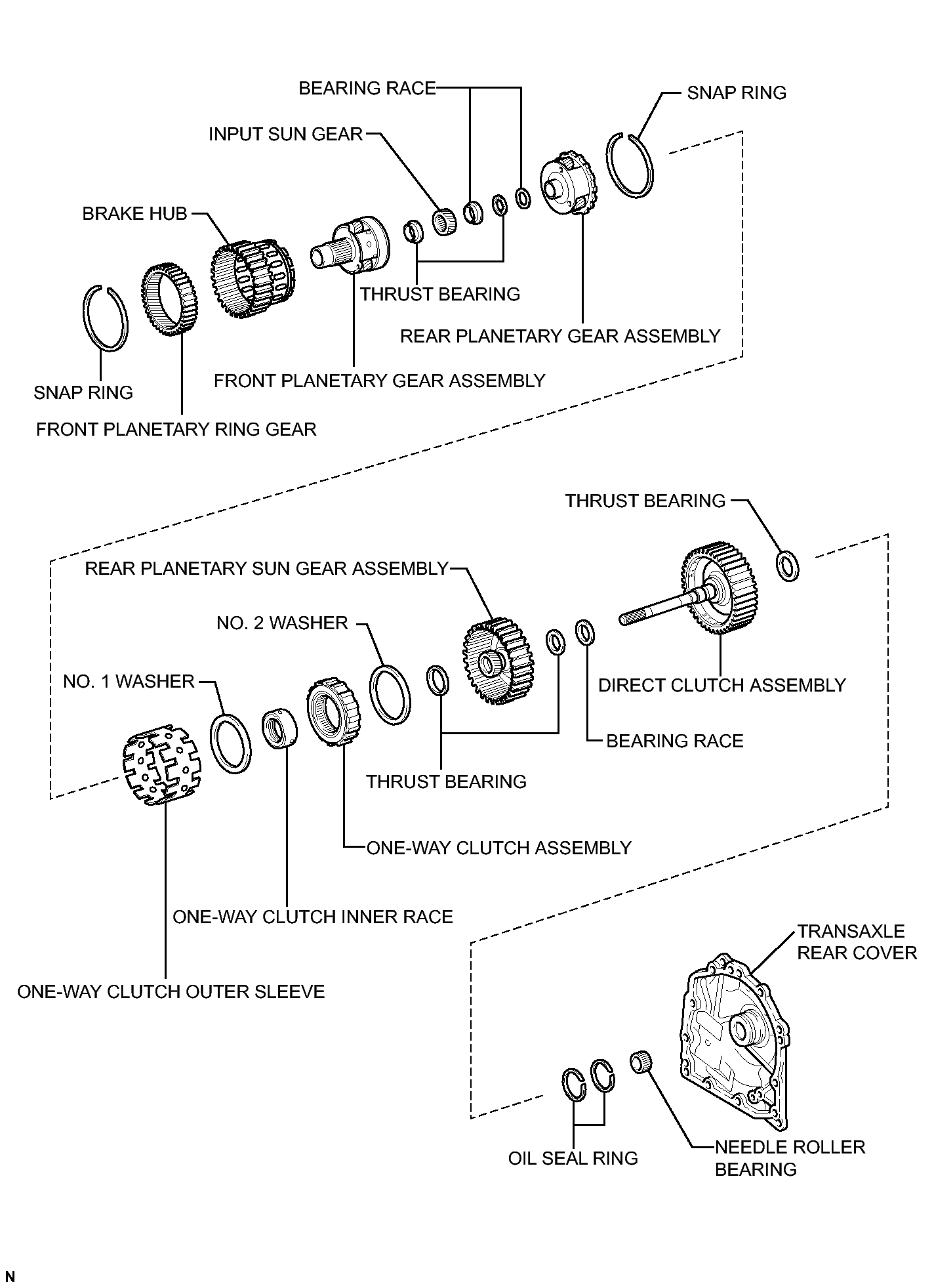

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

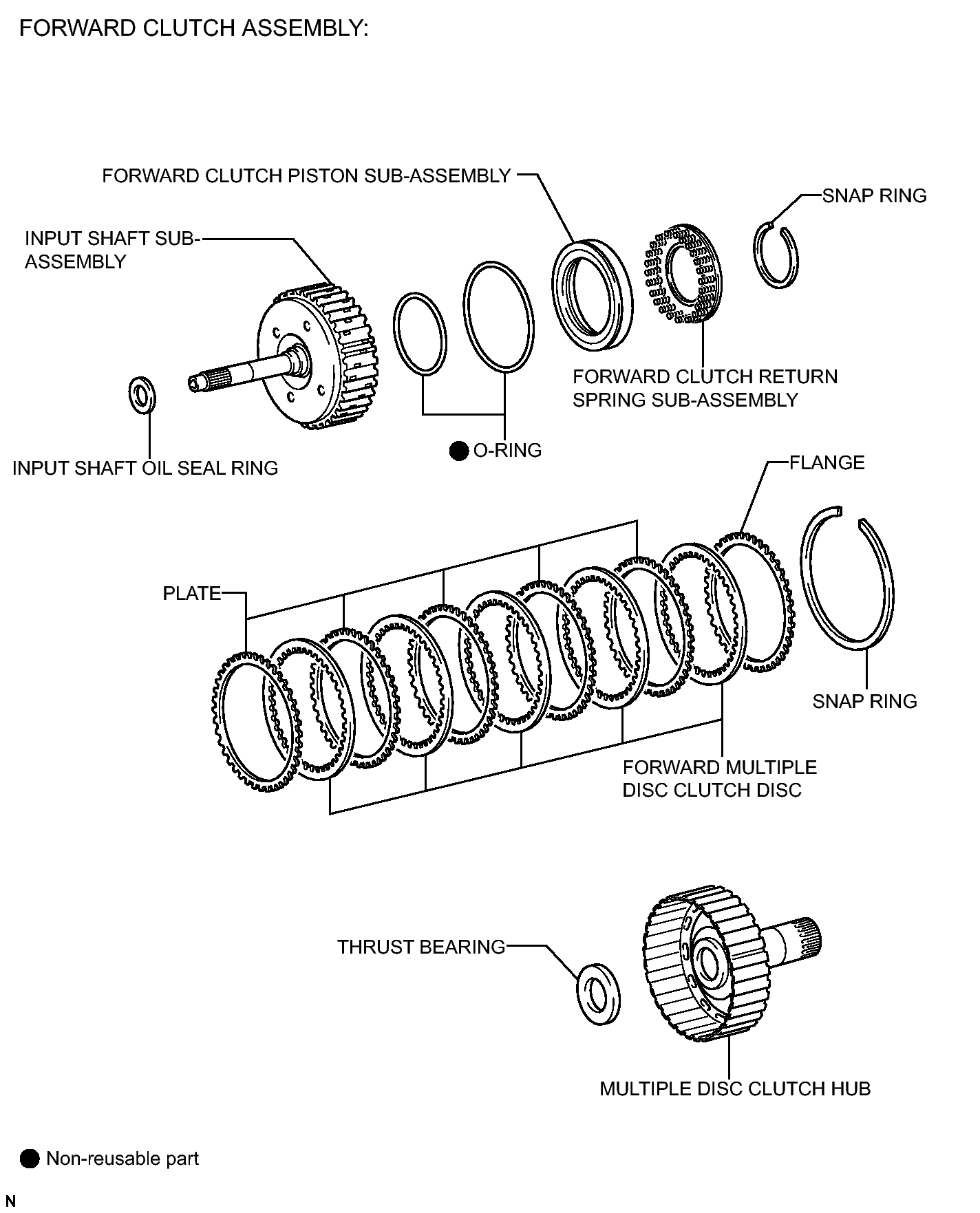

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

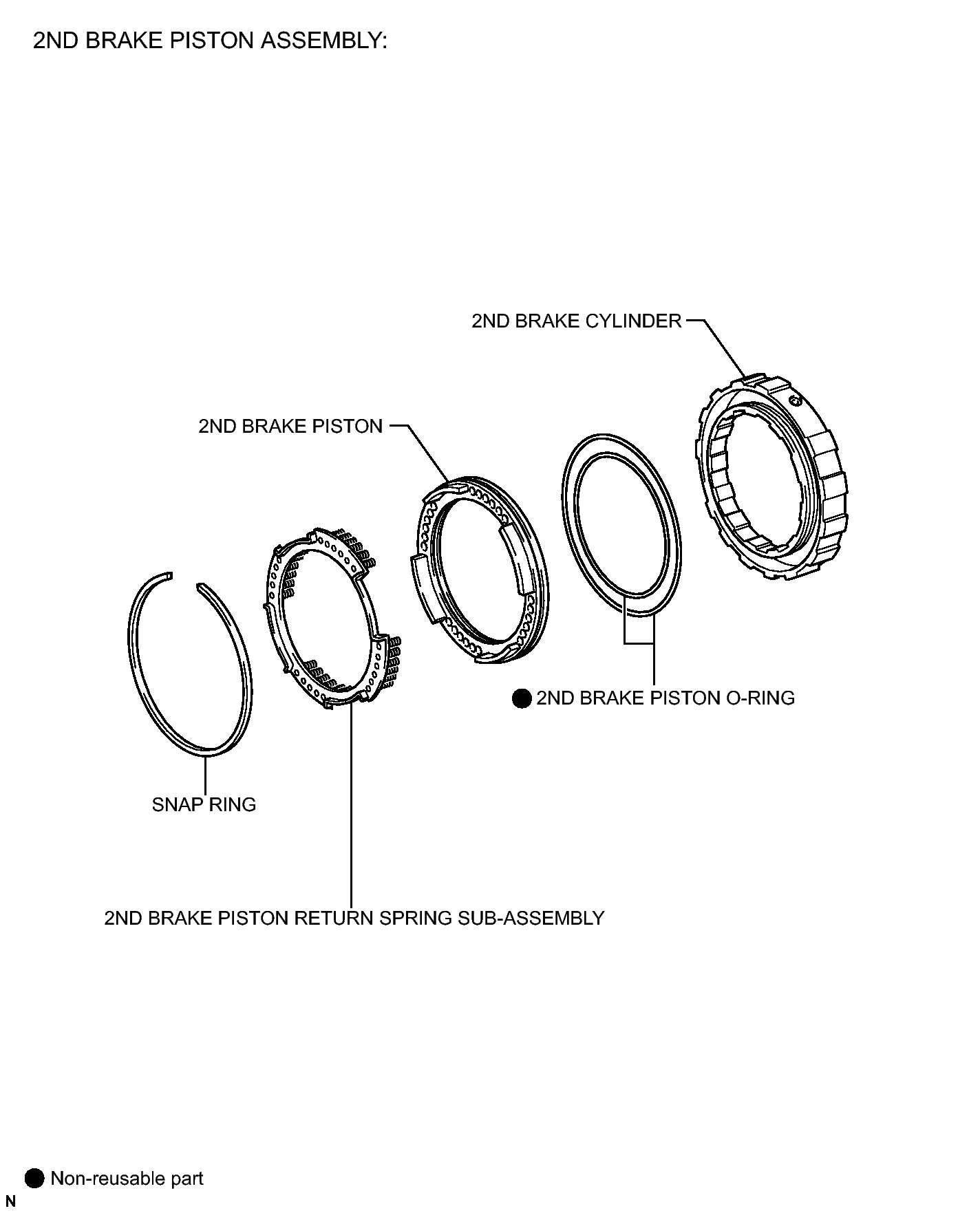

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (10 Of 14)

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (11 Of 14)

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (12 Of 14)

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (13 Of 14)

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (14 Of 14)
