CANISTER (for 2WD): Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

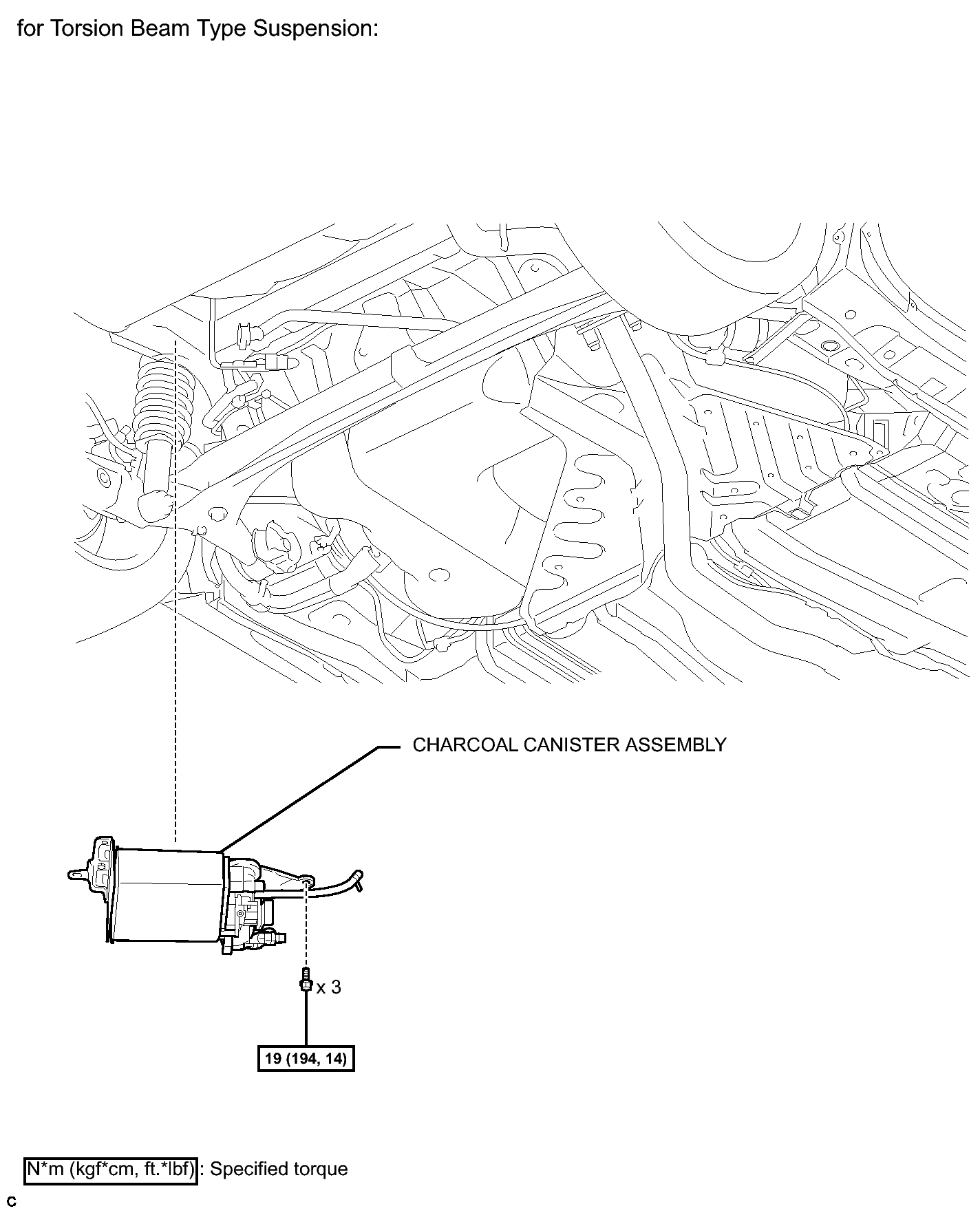

Fig 1: Identifying Canister Replacement Components With Torque Specifications (Torsion Beam Type Suspension) (For 2WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

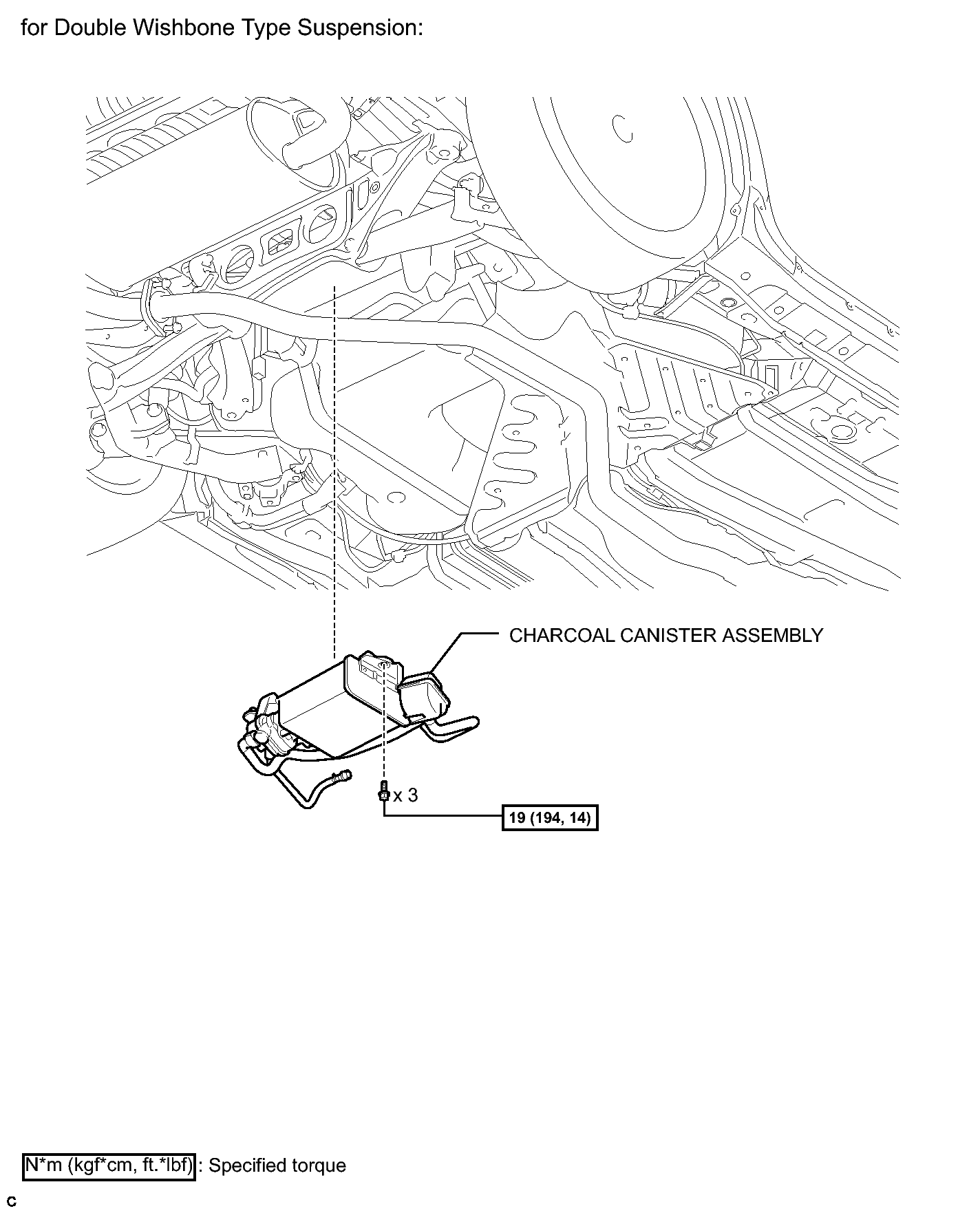

Fig 1: Identifying Canister Replacement Components With Torque Specifications (Double Wishbone Type Suspension) (For 2WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
